ABB WaterMaster User Manual

WaterMaster
Electromagnetic flowmeter 3 Mechanical Installation
IM/WM–EN Rev. M 9

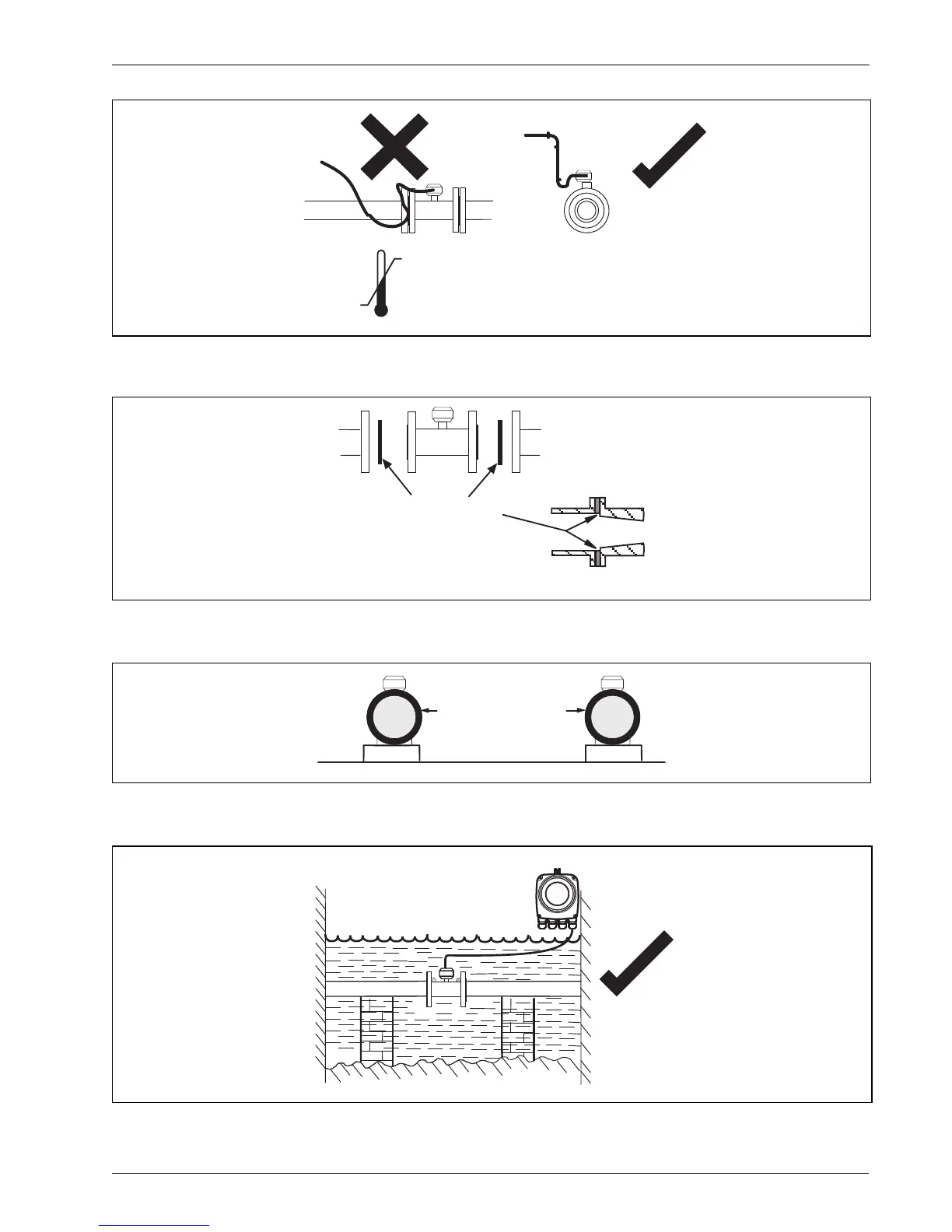

Fig. 3.14 Cable Routing
Fig. 3.15 Gasket Fitting
Fig. 3.16 Separation of Sensors
Fig. 3.17 Access to Transmitter
70 °C
(158 °F)
Max.
– 20 °C
(– 4 °F)
Min.
Fit Gaskets
Gaskets Same Size as Pipe
0.7 m (2.3 ft) Min.
Position to enable access
to display and
communication connector

ABB WaterMaster Specifications

General

Measurement Principle	Electromagnetic
Protection Class	IP67, IP68
Output Signals	4-20 mA, Pulse, Frequency
Liner Material	PTFE, Polyurethane, Hard Rubber
Electrode Material	Stainless Steel, Hastelloy, Titanium, Platinum
Communication Protocols	HART, Modbus, Profibus
Power Supply	100-240 V AC, 24 V DC
Process Connection	Flanged, Wafer
Fluid Temperature	-40°C to +180°C (depending on liner material)
Process Pressure	Up to 40 bar
Conductivity	≥5 μS/cm
Operating Temperature	-20°C to +60°C
