5.3 Security Levels and Password Access
At power-up, the 'Start-up Display' and 'Process Display' screens are activated in sequence.
Note.
 Passwords at 'Standard' and 'Advanced' level can be set and changed by end-users.
 Access to the 'Service' level is reserved for factory-only personnel and not available to end-users.
 To navigate from the 'Operator Page(s)' directly back to the menus, accept the default access
level selection at the 'Access Level' screen and press the key.
*Example legend only

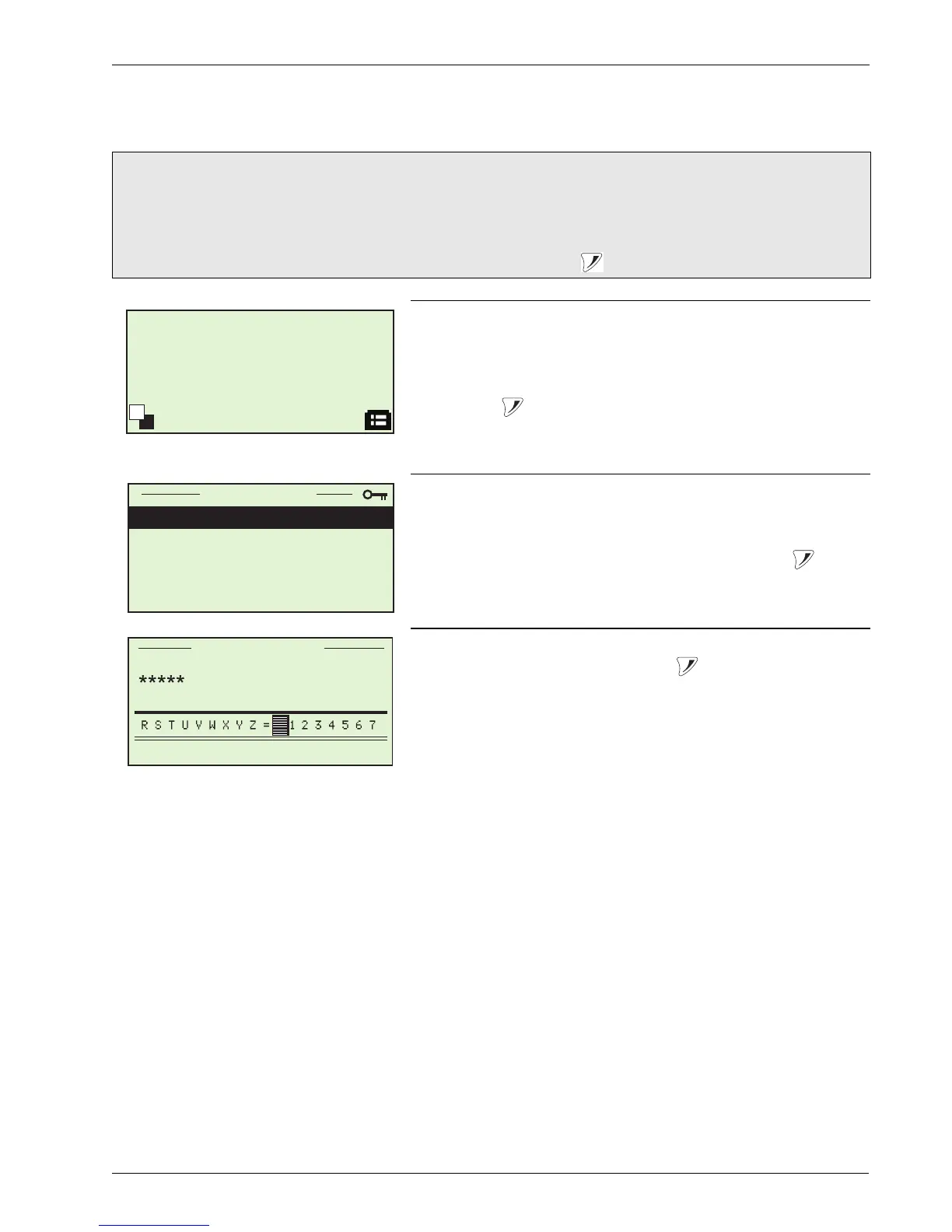

Operator Pages (Process Display)
When the start-up routine is completed, and if no changes
have occurred since last start-up, the 'Process Display'
(Operator Page) screen is displayed.
Press the
key to display the 'Access Level' screen where
the level of user access is selected.
Access Level
Passwords are required for 'Standard' and 'Advanced' level
access. Passwords are not required for 'Read Only' access.
Select the permitted level of access and press
the key to
display the 'Enter Password' screen (the 'Enter Password'
screen is bypassed if 'Read Only' is selected).
Enter Password
Enter the password and press the
key to display menus
available at the permitted access level.
Note. If a time-out occurs (5 minutes of no activity), enter the
password again to access the menus.
*Drain Water
123.45
l/s
Access Level
Read Only
Standard
Advanced
Service
Back
Select
Next
OK
Enter Password
