Electromagnetic flowmeter 5 Start-up and Operation
IM/WM–EN Rev. M 35

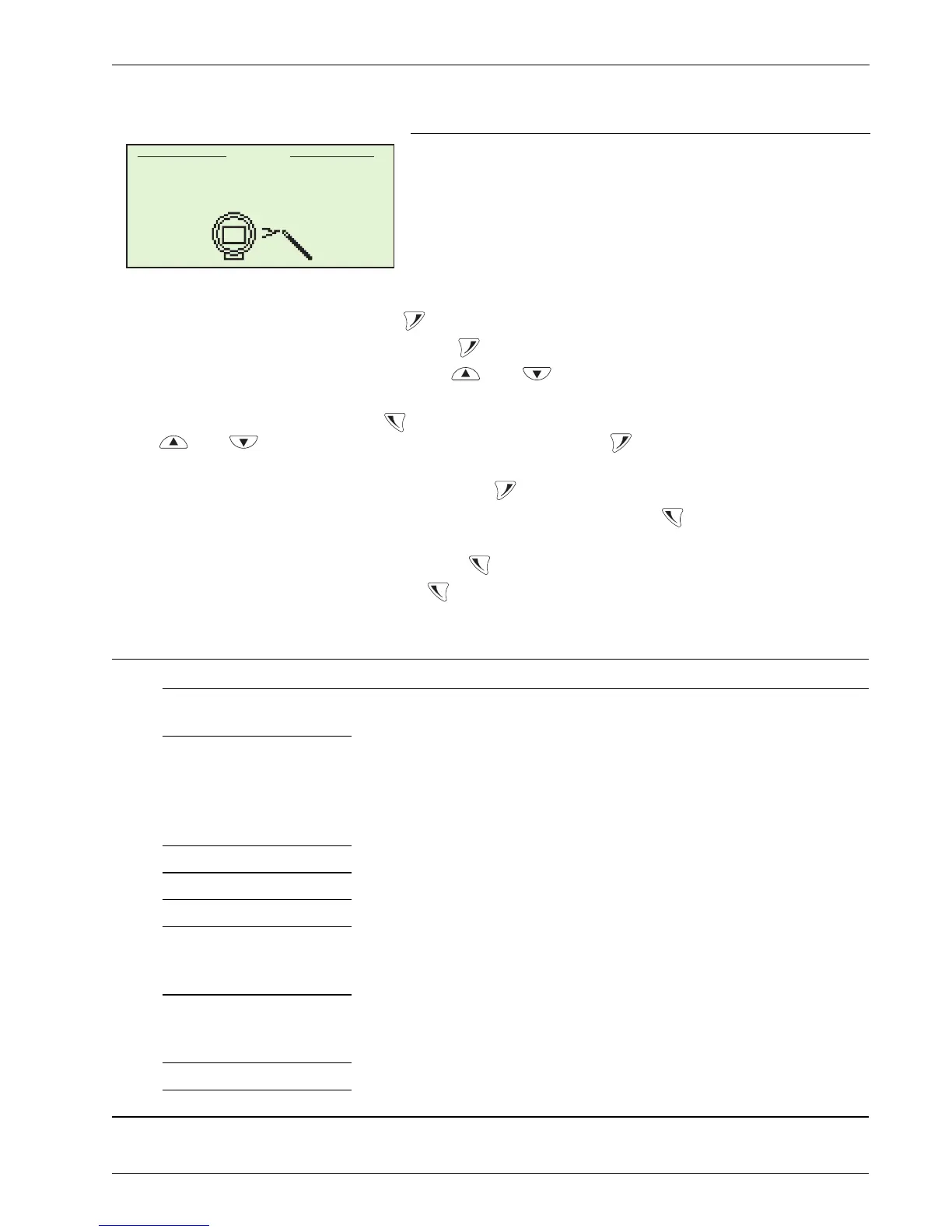

5.4 Easy Setup
* For OIML and MID flowmeters, only m
3
must be used.
Easy Setup
The 'Easy Setup' level is used to set the system up quickly
and contains a series of options for users with 'Standard' and
'Advanced' access permission. Users with 'Read Only' access
cannot make selections at this level.
To navigate the 'Easy Setup' parameters:
 Enter 'Easy Setup' by pressing the key at the 'Select' prompt.
 View and edit a parameter by pressing the key at the 'Edit' prompt.
 Scroll parameter options by pressing the and keys (press and retain contact to scroll
multiple options consecutively).
 Edit parameters by pressing the key at the 'Next' prompt to enter the text field and press the
and keys to increase or decrease the value. Press the key at the 'OK' prompt to accept
the new value.
 Accept a highlighted parameter by pressing the key at the 'OK' prompt.
 Exit the current parameter without changing the setting by pressing the key at the 'Cancel'
prompt.
 Move to the next parameter by pressing the key at the 'Next' prompt.
 Exit 'Easy Setup' level by pressing the key at the 'Exit' prompt on the 'Easy Setup' main level
screen.
Parameter Range [Default] Note
Language English, Deutsch, Français, Español,
Italiano, Polski, Portuguese
[English] Selectable
Q (Flowrate) Unit m
3
/s, m
3
/min, m
3
/h, m
3
/d, ft
3
/s, ft
3
/min,
ft
3
/h, ft
3
/d, ugal/s, ugal/min, ugal/h,
ugal/d, Mugal/d, igal/s, igal/min, igal/h,
igal/d, bls/s, bls/min, bls/h, bls/d, hl/h,
ml/s, ml/min, l/s, l/min, l/h, Ml/d,
[m
3
/h] Selectable
Qmax Dependant on sensor size [Factory set]
Volume & Pulse Unit m
3
, l, ml, ft
3
, hl, igal, ugal, bls, MI, Mugal Selectable*
Pulse Width 0.09 to 2000.00 ms [0.09 ms] Editable
Pulses / Unit 0.000010 to 10,000,000 pulses / unit [1.0] Editable
(Only shown when Pulse
Mode is Pulse / Unit)
Fullscale Frequency 0.250000 to 10,000,000 Hz [5,000.000] Editable
(Only shown when Pulse
Mode is Fullscale Frequency)
Damping 0.02 to 60 s [3.00 s] Editable
Mains Frequency 50 or 60 Hz [50 Hz] Selectable
1
Menu
Exit
Select
Easy Setup

ABB WaterMaster Specifications

General

Measurement Principle	Electromagnetic
Protection Class	IP67, IP68
Output Signals	4-20 mA, Pulse, Frequency
Liner Material	PTFE, Polyurethane, Hard Rubber
Electrode Material	Stainless Steel, Hastelloy, Titanium, Platinum
Communication Protocols	HART, Modbus, Profibus
Power Supply	100-240 V AC, 24 V DC
Process Connection	Flanged, Wafer
Fluid Temperature	-40°C to +180°C (depending on liner material)
Process Pressure	Up to 40 bar
Conductivity	≥5 μS/cm
Operating Temperature	-20°C to +60°C
