Machine Maintenance 3-45
Removing the LCD Bezel 0
1. Perform the “Removing the LCD Module” procedure described on page 3-41.
2. Remove the screw rubber covers on the lower corners of the LCD bezel.

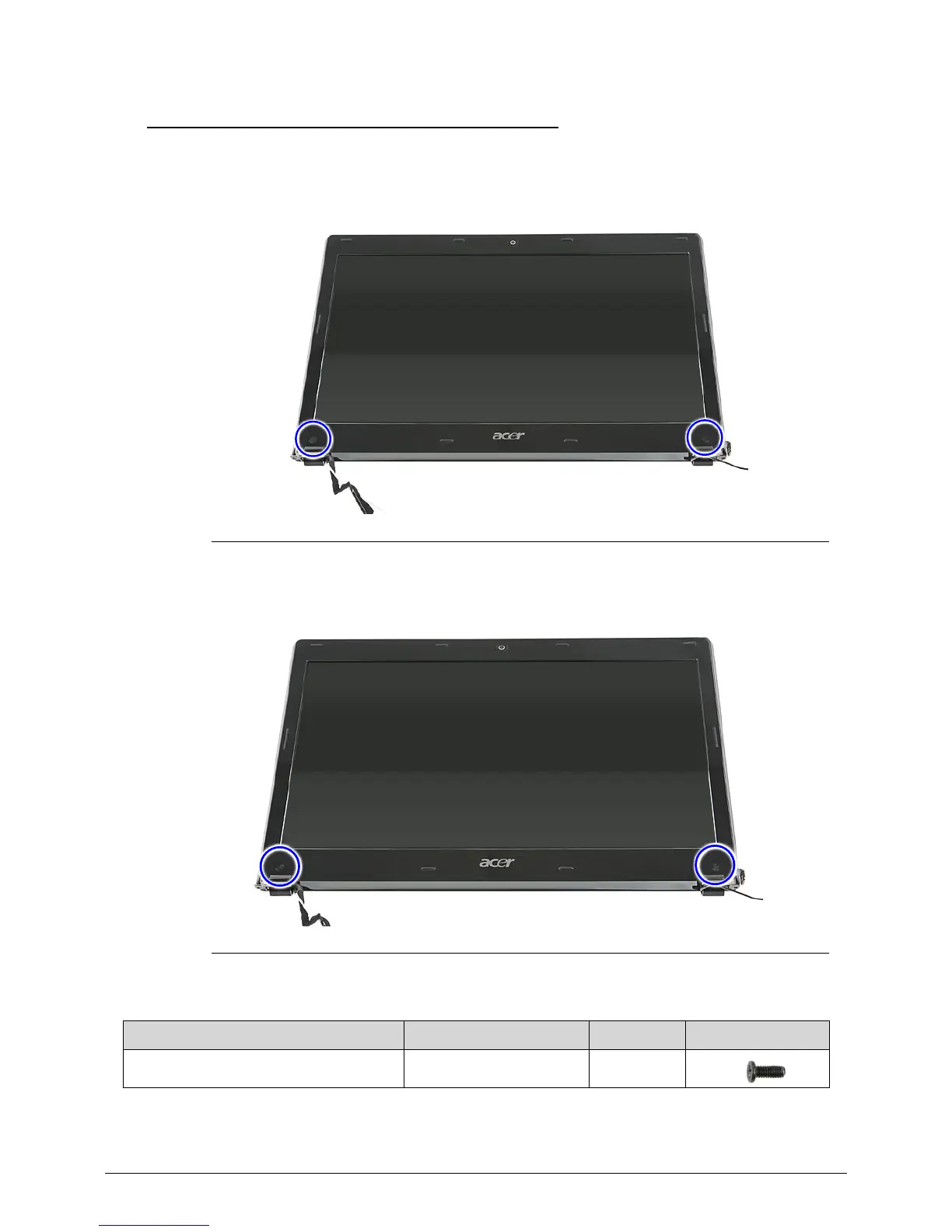

Figure 3-62. LCD Bezel Screw Covers
3. Remove the screws on the lower corners of the LCD bezel.
Figure 3-63. LCD Bezel Screws
Table 3-19. Screws
Step Screw Quantity Screw Type
LCD Bezel Disassembly M2.5 × L5 2
To Next Page
