6-6
FRU (Field Rep
laceable Unit) List
LCD Assembly
0

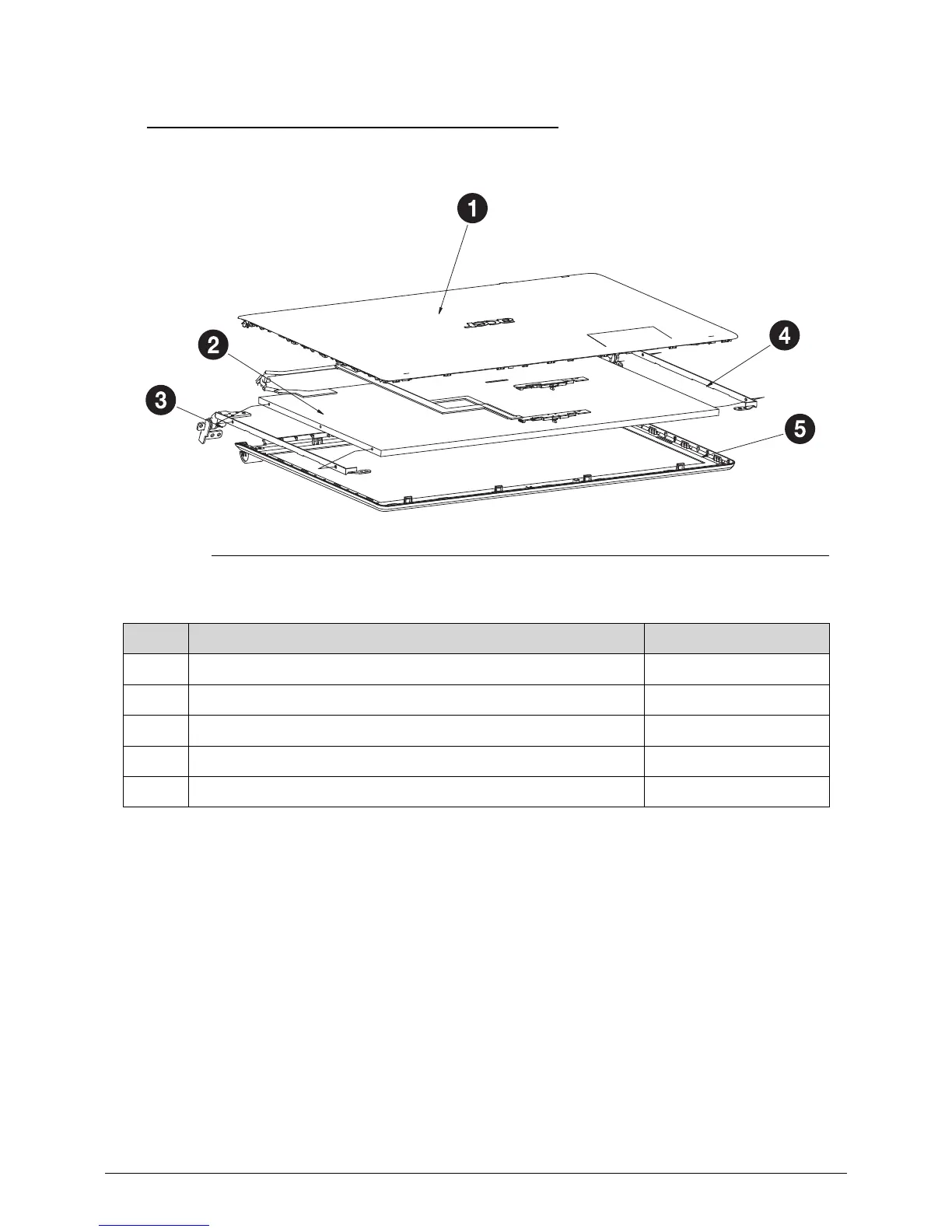

Figure 6-2.
LCD Assembly Exploded Diagram
T
able 6-2.
LCD Assembly Exploded Diagram
No.
Description
Part Number
1
LCD cover
60.RC901.005
2
LCD module
6M.RKC01.003
3
LCD left
hinge bracket
33.RC901.004
4
LCD right hin
ge bracket
3
3.RC901.003
5
LCD bezel
60.RC901.004
205
207
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
5
CHAPTER 1 Hardware Specifications
11
Features
15
Operating System
15
Platform
15
System Memory
15
Display
15
Graphics
15
Storage Subsystem
16
Audio Subsystem
16
Hard Disk Drive
16
Communication
17
Privacy Control
17
Power Adapter and Battery
17
Keyboard and Pointing Device
18
I/O Ports
18
Software and Tools
18
Optional Items
20
Warranty
20
Dimensions and Weight
20
Environment
20
Notebook Tour
21
Open Front View
21
Close Front View
23
Left View
24
Right View
25
Base View
26
Indicators
27
Touchpad Basics
28
Keyboard
28
Lock Keys
29
Windows Keys
30
Hotkeys
31
Special Keys
32
D2D Recovery
33
Specification Tables
35
CHAPTER 2 System Utilities
51
BIOS Setup Utility
53
Navigating the BIOS Utility
53
BIOS Menus
54
Setting a Password
57
Removing a Password
58
Changing a Password
58
BIOS Flash Utilities
61
DOS Flash Utility
62
Winflash Utility
62
Remove HDD/BIOS Password Utilities
63
Removing the HDD Password
63
Removing the BIOS Passwords
64
Clearing the BIOS Passwords
65
Using DMI Tools
66
LAN EEPROM Utility
66
CHAPTER 3 Machine Maintenance
67
Machine Disassembly and Replacement
71
Recommended Equipment
71
Replacement Requirements
71
Pre-Disassembly Instructions
72
Disassembly Process
73
External Module Disassembly Process
74
External Modules Disassembly Flowchart
74
Removing the Battery Pack
75
Remove the Dummy Card
76
Removing the ODD Module
77
Removing the Base Door
79
Removing the HDD Module
80
Removing the WLAN Module
82
Removing the Memory Modules
83
Main Unit Disassembly Process
85
Main Unit Disassembly Flowchart
85
Removing the Keyboard
86
Removing the Palmrest Module/Upper Cover
89
Removing the Speakers
93
Removing the Power Button Board
95
Removing the Touchpad Board
97
Removing the USB Board
99
Removing the Bluetooth Module
101
Removing the Mainboard
102
Removing the Thermal Module
104
Removing the CPU
106
Removing the LCD Module
107
LCD Module Disassembly Process
110
LCD Module Disassembly Flowchart
110
Removing the LCD Bezel
111
Removing the LCD Panel
113
Removing the LCD Brackets
117
Removing the Microphone
118
Removing the Camera Board
119
LCD Module Reassembly Process
120
Replacing the Camera Board
120
Replacing the Microphone
121
Replacing the LCD Brackets
122
Replacing the LCD Panel
123
Replacing the LCD Bezel
127
Main Unit Reassembly Process
129
Replacing the LCD Module
129
Replacing the CPU
132
Replacing the Thermal Module
134
Replacing the Mainboard
136
Replacing the Bluetooth Module
138
Replacing the USB Board
139
Replacing the Touchpad Board
141
Replacing the Power Button Board
143
Replacing the Speakers
145
Replacing the Palmrest Module/Upper Cover
147
Replacing the Keyboard
150
External Module Reassembly Process
152
Replacing the Memory Modules
152
Replacing the WLAN Module
153
Replacing the HDD Module
155
Replacing the Base Door
157
Replacing the ODD Module
158
Replacing the Dummy Card
160
Replacing the Battery Pack
161
CHAPTER 4 Troubleshooting
163
Introduction
165
General Information
165
Power on Issues
166
No Display Issues
167
Abnormal Video
168
LCD Failure
169
Keyboard Failure
170
Touchpad Failure
171
Internal Speaker Failure
172
Microphone Failure
174
USB Failure
175
WLAN Failure
176
Bluetooth Failure
177
Card Reader Failure
178
Thermal Unit Failure
179
Other Functions Failure
180
Intermittent Problems
181
Undetermined Problems
181
Error Codes
182
BIOS Beep Codes
183
POST Codes
188
Component Codes
188
Progress Codes
192
CHAPTER 5 Jumper and Connector Locations
193
Clearing the BIOS Passwords
194
Mainboard Layout
194
Mainboard Layout
195
Clearing Password Check and BIOS Recovery
197
Clearing the BIOS Passwords
197
Performing a BIOS Recovery
198
CHAPTER 6 FRU List
202
Aspire 4560/4560G Exploded Diagram
202
Main Assembly
202
LCD Assembly
202
FRU List
202
Main Assembly
204
Lcd Assembly
206
Model Definition and Configuration
219
Test Compatible Components
327
Microsoft Windows 7 Environment Test
328
Online Support Information
335
