Machine Maintenance Procedures 3-41
Keyboard Assembly Installation 0
1. Install keyboard (G) on upper cover. (Figure 3-43).
2. Install keyboard support plate (E) on keyboard. (Figure 3-42)
3. Slide keyboard support plate toward bottom edge (F) of upper cover.
NOTE:
NOTE:
Align support plate slots with upper cover guides (J) and guide pins (K) before securing
screws. Support plate must be secured under latch guide (H). (Figure 3-44)

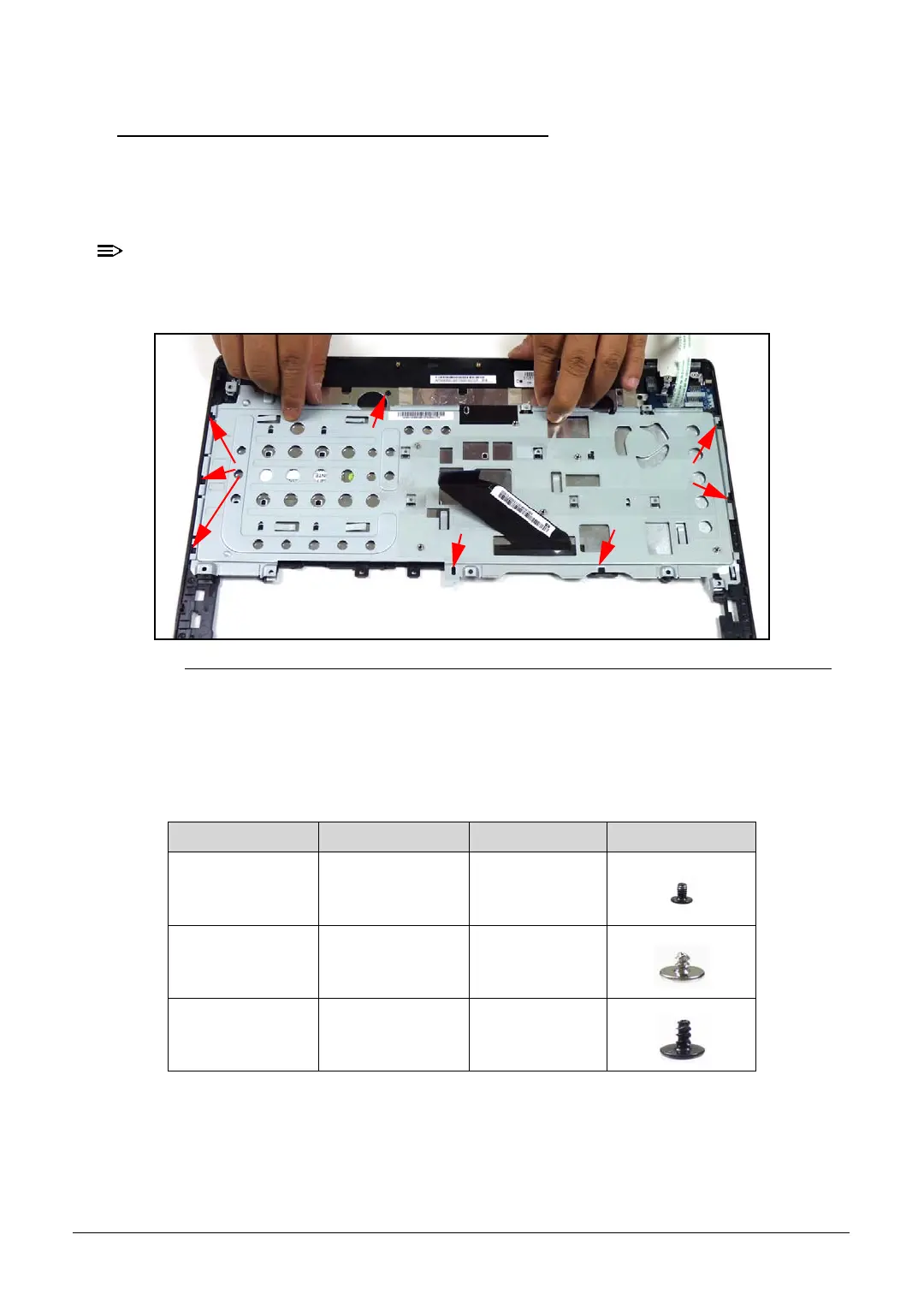

Figure 3-44. Keyboard Support Plate Guides
4. Install and secure three (3) screws (A), two (2) screws (B), and five (5) screws (C) to
keyboard. (Figure 3-42)
5. Install upper cover.
ID Size Quantity Screw Type
A M2.0x2.5 3
B M1.6x2.0 Ni 2
C M1.6x3.0 5
J
J
K
K
H
SG_JV51_HR.book Page 41 Friday, July 8, 2011 5:58 PM

Acer Aspire 5755 Specifications

General

RAM	Up to 8 GB DDR3
Display	15.6-inch HD (1366 x 768)
Graphics	Intel HD Graphics 3000 or NVIDIA GeForce GT 520M / 540M
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Optical Drive	DVD-Super Multi DL drive
Chipset	Intel HM65 Express
LAN	Gigabit Ethernet
Webcam	1.3MP
Processor	Intel Core i3/i5/i7
Weight	2.6 kg
Ports	3 x USB 2.0, HDMI, VGA
Wireless	Wi-Fi 802.11b/g/n
Card Reader	SD, MMC
Storage	320 GB, 500 GB, 640 GB, 750 GB HDD
