Acer Aspire 5755 User Manual

Machine Maintenance Procedures 3-17
HDD Carrier Removal 0
Prerequisite:
HDD Module Removal
1. Remove four (4) screws (A) from the brackets (Figure 3-13).

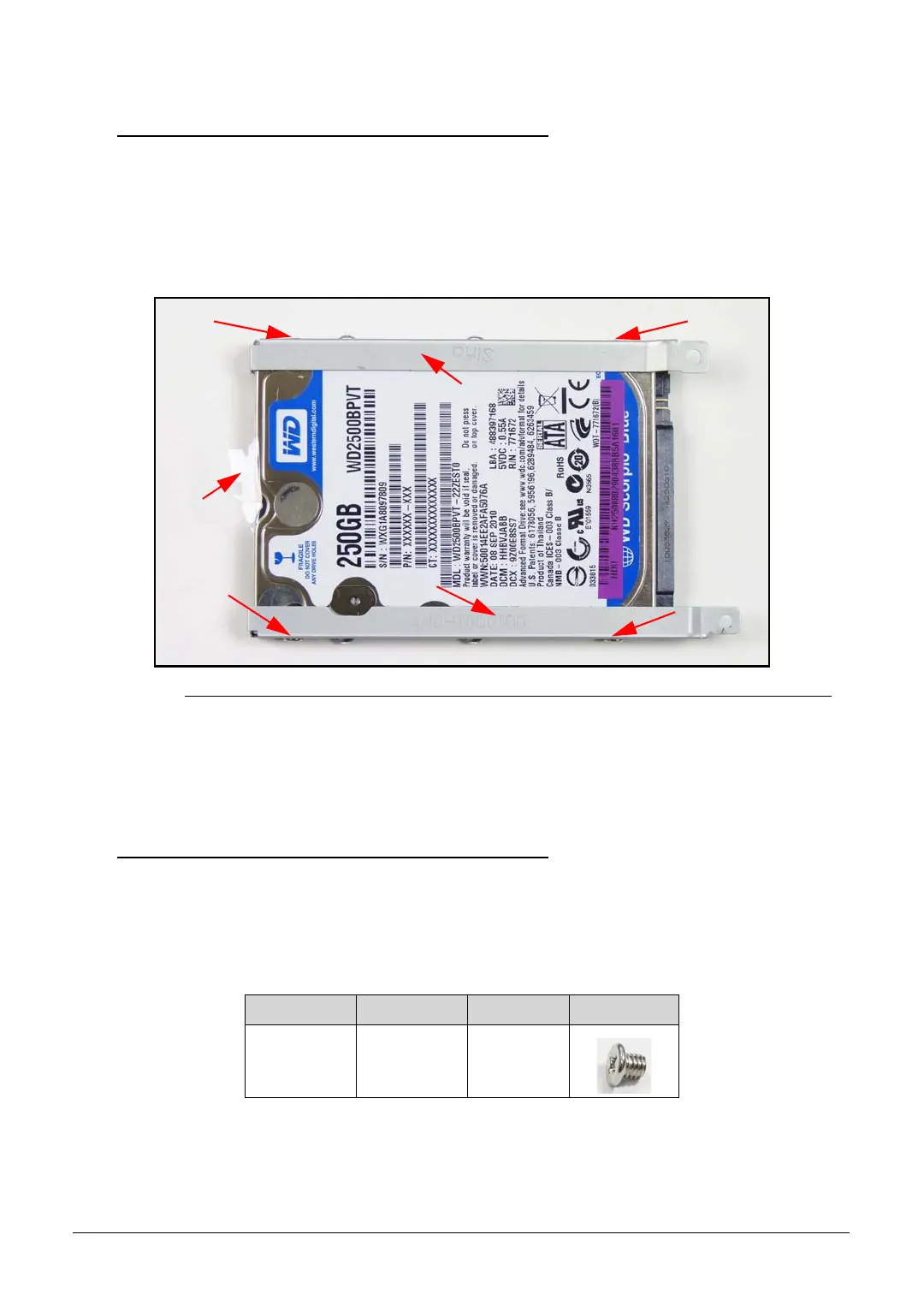

Figure 3-13. HDD Module Brackets
2. Remove brackets (B, C) and mylar (D) from HDD.
3. Remove mylar from brackets.
HDD Carrier Installation 0
1. Install mylar (D) to brackets (C, D). (Figure 3-13)
2. Install and secure brackets and mylar to HDD module with four (4) screws (A).
3. Install HDD module.
ID Size Quantity Screw Type
A M3.0x3.0Ni 4
A
A
A
A
B
D
C
SG_JV51_HR.book Page 17 Friday, July 8, 2011 5:58 PM

Acer Aspire 5755 Specifications

General

RAM	Up to 8 GB DDR3
Display	15.6-inch HD (1366 x 768)
Graphics	Intel HD Graphics 3000 or NVIDIA GeForce GT 520M / 540M
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Optical Drive	DVD-Super Multi DL drive
Chipset	Intel HM65 Express
LAN	Gigabit Ethernet
Webcam	1.3MP
Processor	Intel Core i3/i5/i7
Weight	2.6 kg
Ports	3 x USB 2.0, HDMI, VGA
Wireless	Wi-Fi 802.11b/g/n
Card Reader	SD, MMC
Storage	320 GB, 500 GB, 640 GB, 750 GB HDD
