Acer Aspire 5755 User Manual

Machine Maintenance Procedures 3-53
LCD (Liquid Crystal Display) Module Removal 0
Prerequisite:
Speaker Module Removal
IMPORTANT:
+
3G is not available in this model.
1. Disconnect WLAN antenna cables (A) from WLAN module connectors, refer to WLAN
Module Removal
1. Remove WLAN antenna cables (A) from guides (B) on lower cover (Figure 3-56).

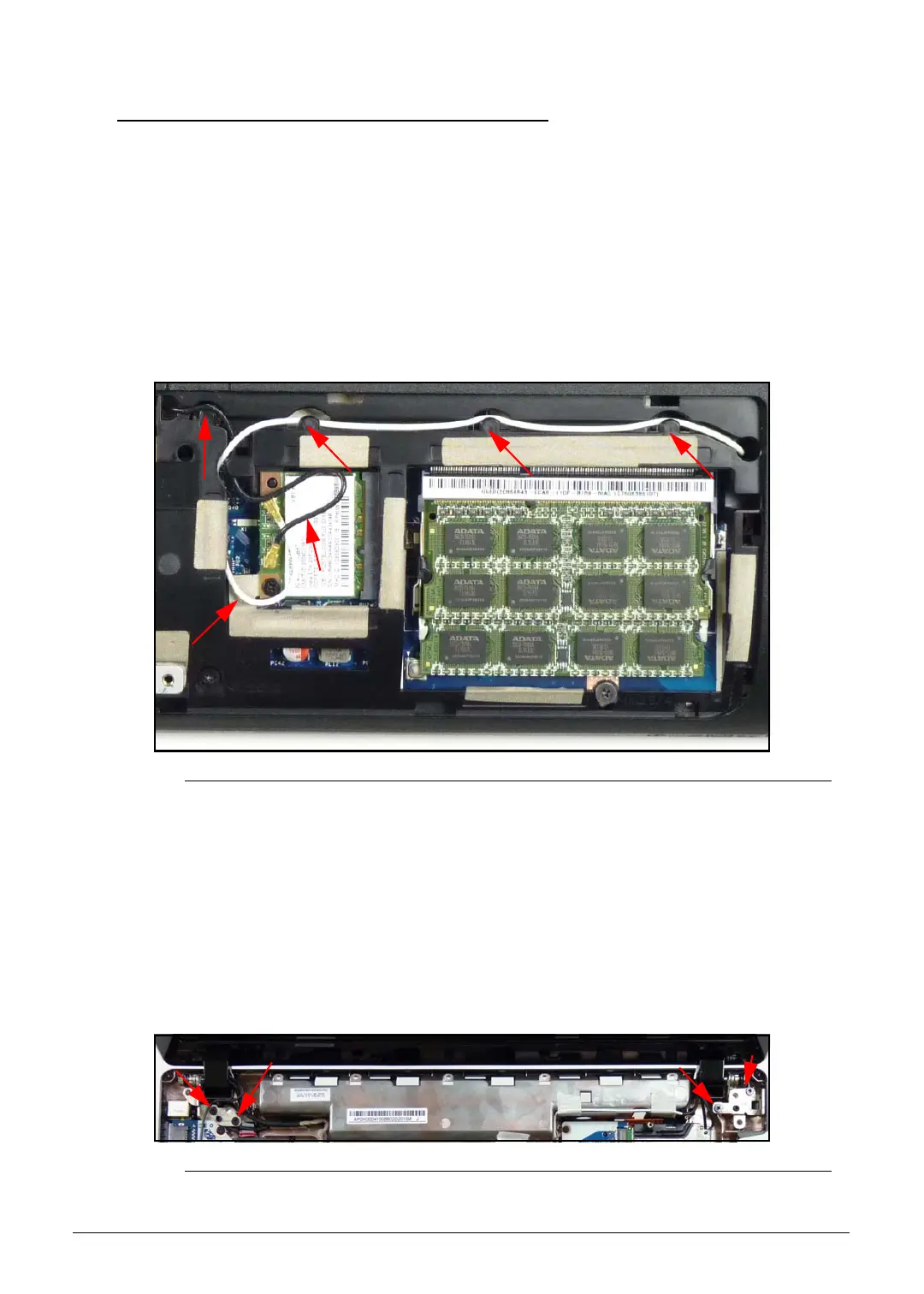

Figure 3-56. WLAN Module Cables
2. Disconnect 3G antenna cables (A) from 3G module connectors. Refer to 3G Module
Removal.
3. Place computer face up.
4. Remove adhesive tape on cables as required.
5. Guide WLAN antenna cable through opening (H). Refer to Figure 3-47.
6. Guide 3G antenna cables through opening (G). Refer to Figure 3-47.
7. Remove four (4) screws (C) from LCD module hinges (Figure 3-57).
Figure 3-57. LCD Module Hinge Screws
A
A
B
B
B B
C
C
C
C
