8 Chapter 1

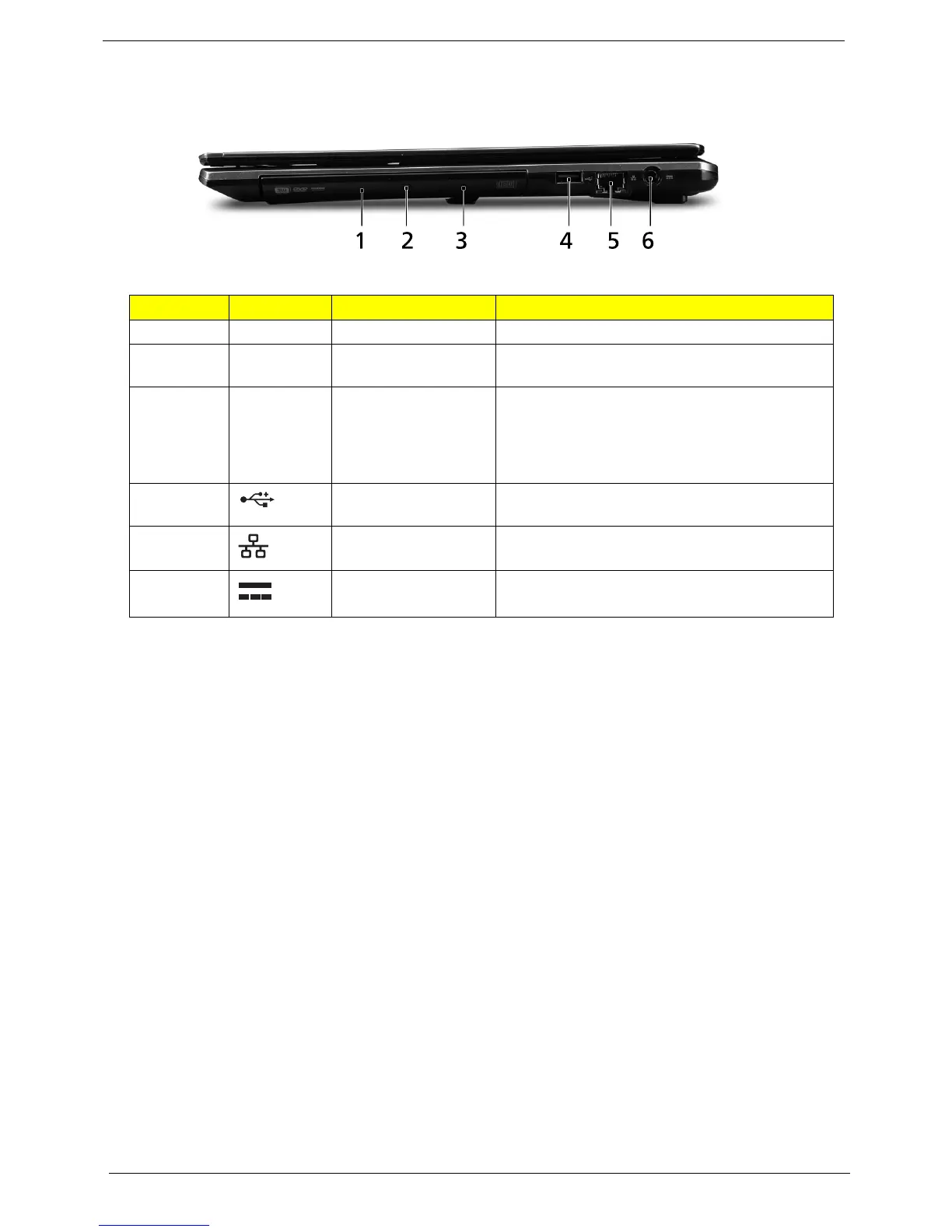

Right View
# Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access
indicator
Lights up when the optical drive is active.
3 Emergency eject hole Ejects the optical drive tray when the computer is
turned off.
Note: Insert a paper clip to the emergency eject
hole to eject the optical drive tray when the
computer is off.
4 USB 2.0 port Connects to USB 2.0 devices
(e.g., USB mouse, USB camera).
5 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based
network.
6 DC-in jack Connects to an AC adapter.
