Chapter 3 65

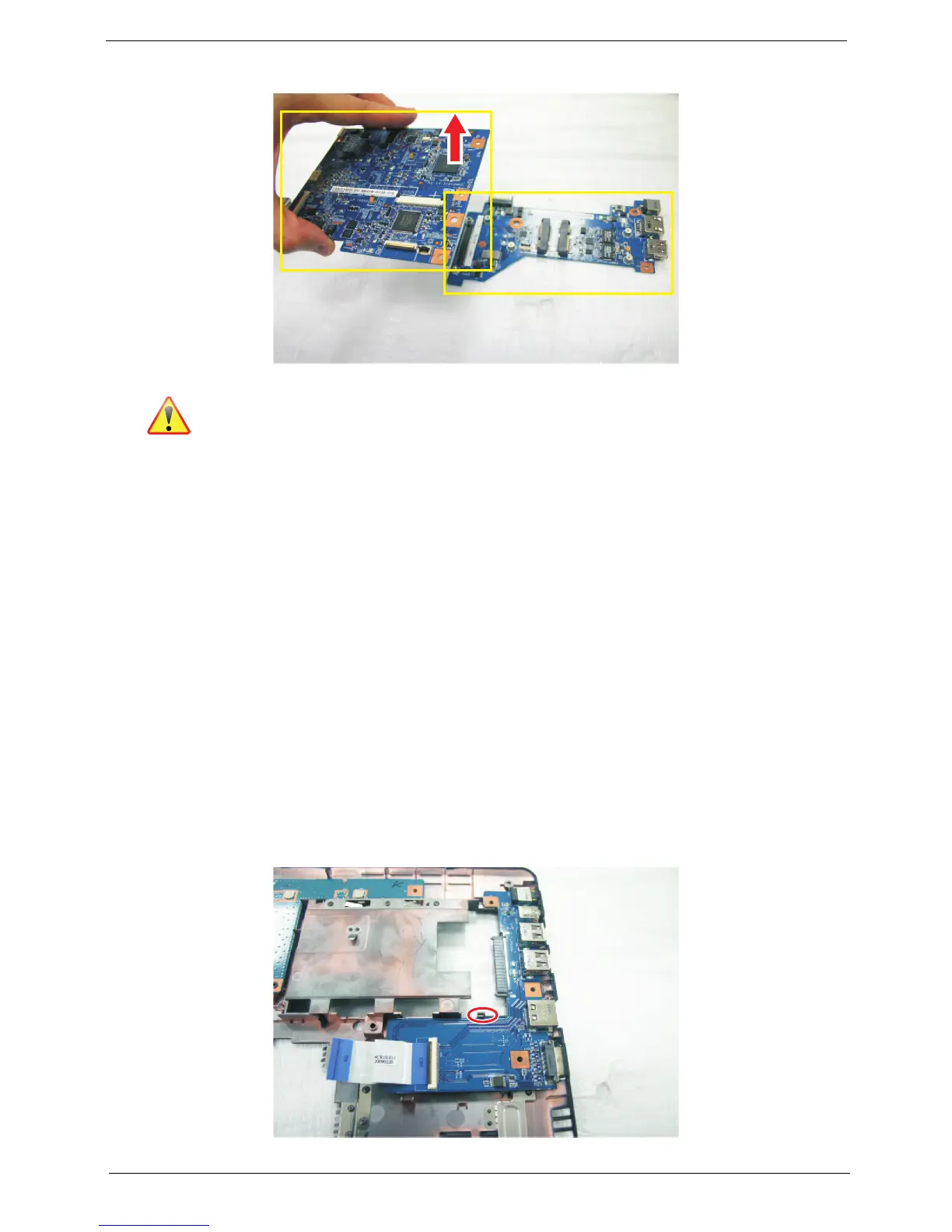

14. Detach the system board from the mini board.
Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Removing the CRT Board Module
1. See “Removing the Battery Pack” on page 42.
2. See “Removing the Lower Cover” on page 43.
3. See “Removing the Lower Cover” on page 43.
4. See “Removing the Optical Drive Module” on page 44.
5. See “Removing the DIMM” on page 45.
6. See “Removing the Hard Disk Drive Module” on page 46.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 48.
9. See “Removing the Keyboard” on page 50.
10. See “Removing the WLAN Board Module” on page 51.
11. See “Separating the Upper Case from the Lower Case” on page 52.
12. See “Removing the System Board” on page 58.
13. Release the CRT board from the latch.
To Next Page
