62 Chapter 3

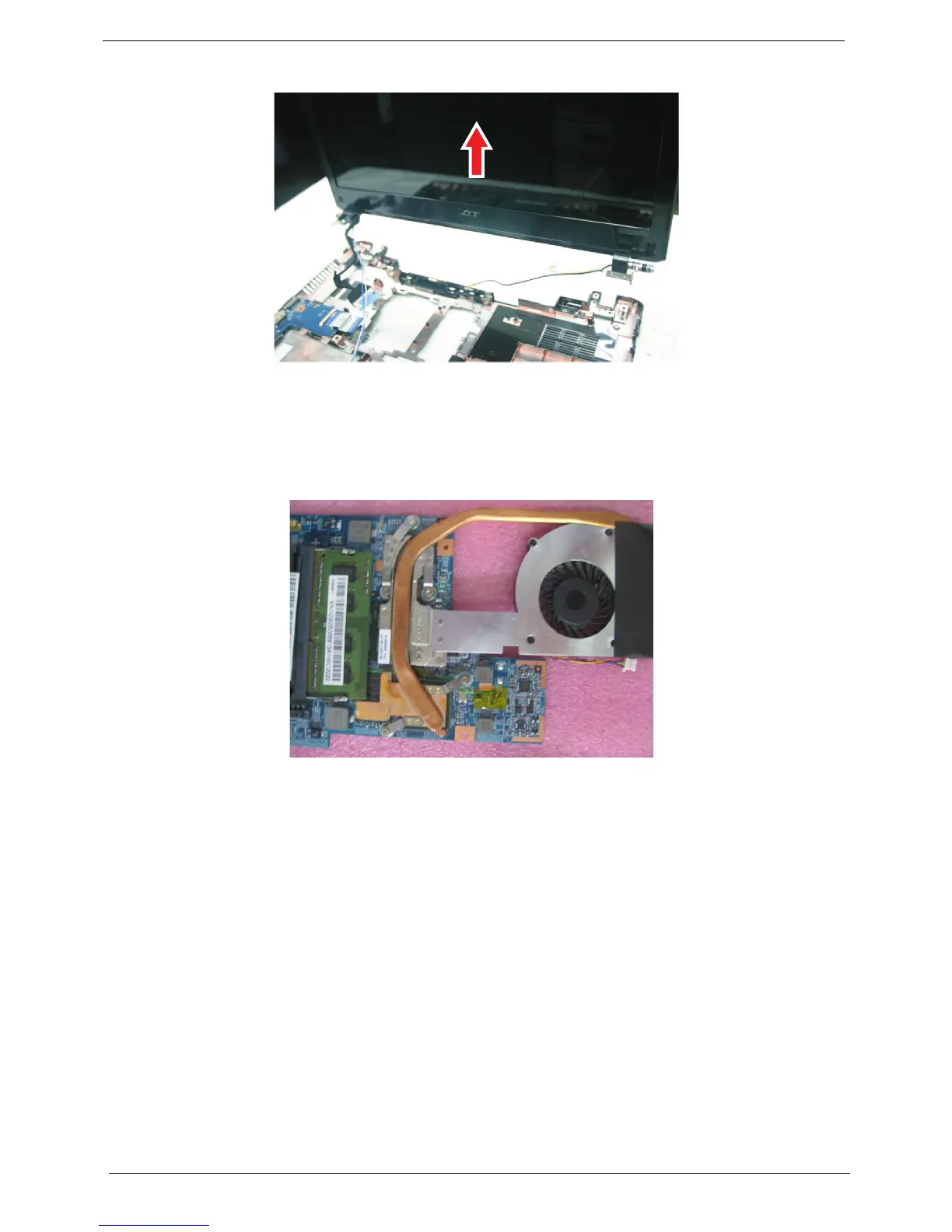

15. Carefully remove the LCD module from the base unit.
NOTE: When connecting the cable back to the unit, please note that the cable should be routed well.
Removing the Thermal Module
There are two version of thermal module. For this section, we are going to use the UMA model (for Aspire
5810T/5810TZ/5410T). The discrete version (for Aspire 5810TG) looks like the picture below:
1. See “Removing the Battery Pack” on page 42.
2. See “Removing the Lower Cover” on page 43.
3. See “Removing the Lower Cover” on page 43.
4. See “Removing the Optical Drive Module” on page 44.
5. See “Removing the DIMM” on page 45.
6. See “Removing the Hard Disk Drive Module” on page 46.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 48.
9. See “Removing the Keyboard” on page 50.
10. See “Removing the WLAN Board Module” on page 51.
11. See “Separating the Upper Case from the Lower Case” on page 52.
12. See “Removing the System Board” on page 58.
To Next Page
