Chapter 3
43

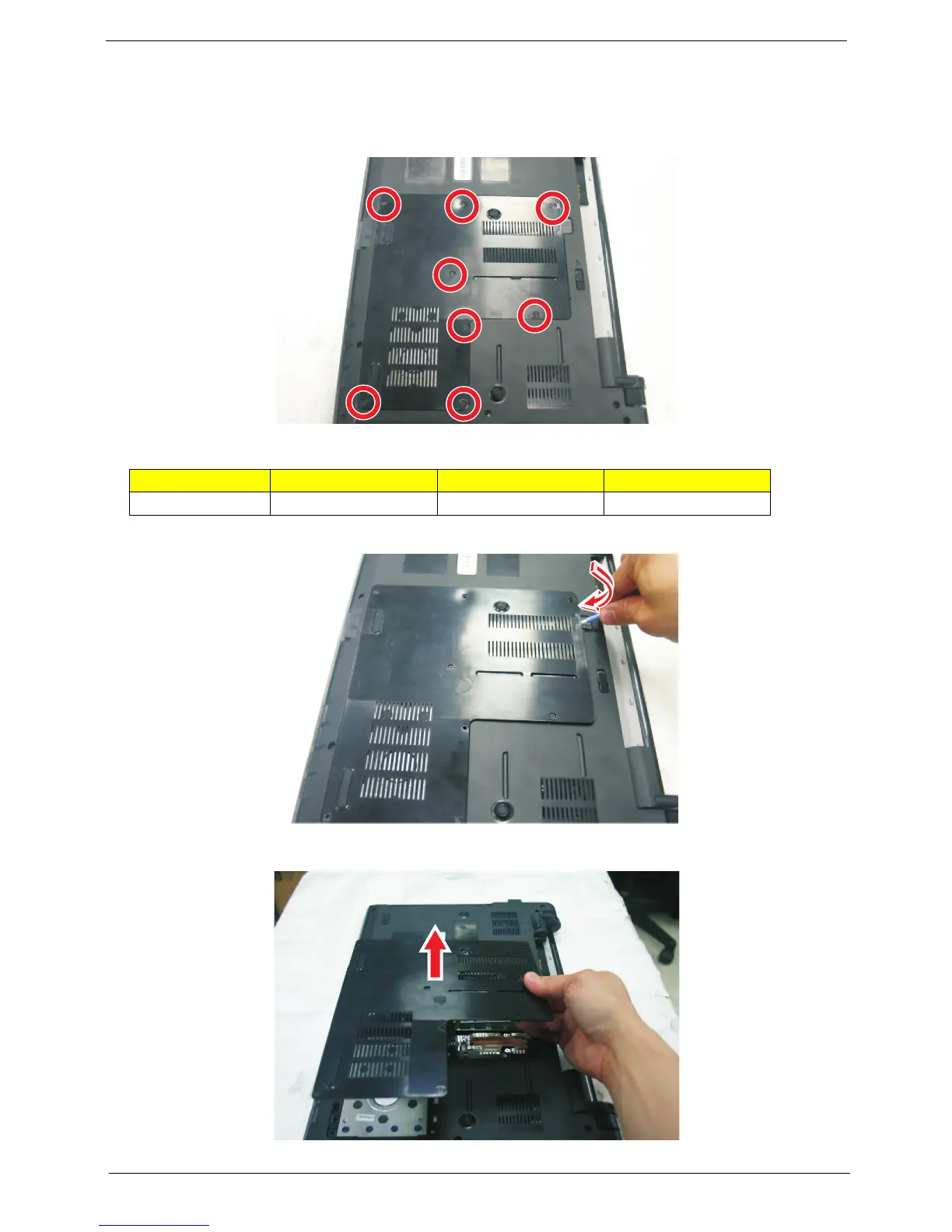

Removing the Lower Cover
1.
See “Removing the Battery Pack” on page 42.
2.
Remove the four captive scr
ews and four screws (H) securing the lower cover
.
3.
Use a plastic screw driver to carefully pry open the lower cover.
4.
Remove the lower cover from the lower case.
Ste
p
Size (Quantity)
Color
To
r
q
u
e
1~4
M2.5 x L1
1 (4)
Black
3.0 kg
f-cm
1
2
3
4
50
52
Table of Contents
Default Chapter
2
Revision History
2
Table of Contents
7
System Specifications
9
Features
9
Dimension and Weight
10
Aspire 5810T/5810TZ/5410T System Block Diagram
11
Aspire 5810TG System Block Diagram
12
Your Acer Notebook Tour
13
Closed Front View
14
Left View
15
Right View
16
Rear View
17
Bottom View
18
Easy-Launch Buttons
19
Indicators
19
Touchpad Basics (with Two-Click Buttons)
19
Using the Keyboard
21
Lock Keys and Numeric Keypad
21
Windows Keys
22
Hot Keys
23
Special Key (Only for Certain Models)
23
Windows Mobility Center
24
Using the System Utilities
25
Acer Gridvista (Dual-Display Compatible)
25
Hardware Specifications and Configurations
27
System Utilities
33
BIOS Setup Utility
33
Navigating the BIOS Utility
34
Information
35
Main
36
Security
38
Setting a Password
39
Removing a Password
39
Changing a Password
40
Boot
41
Exit
42
BIOS Flash Utility
43
Remove HDD and BIOS Passwords
44
Remove Bios Password
45
Machine Disassembly and Replacement
47
Disassembly Requirements
47
General Information
48
Pre-Disassembly Instructions
48
Disassembly Process
48
External Module Disassembly Process
49
External Modules Disassembly Flowchart
49
Removing the Battery Pack
50
Removing the Lower Cover
51
Removing the Optical Drive Module
52
Removing the DIMM
53
Removing the Hard Disk Drive Module
54
Removing the SSD Module
56
Removing the RTC Battery
56
Main Unit Disassembly Process
57
Main Unit Disassembly Flowchart
57
Removing the Keyboard
58
Removing the WLAN Board Module
59
Separating the Upper Case from the Lower Case
60
Removing the Power Button Board
63
Removing the Touchpad Module
64
Removing the Speaker Module
65
Removing the System Board
66
Removing the LCD Module
69
Removing the Thermal Module
70
Removing the Mini Board Module
72
Removing the CRT Board Module
73
Removing the Bluetooth Module
74
Removing the Card Reader Board
75
LCD Module Disassembly Process
77
LCD Module Disassembly Flowchart
77
Removing the LCD Bezel
78
Removing the LCD Panel Hinges
79
Removing the LCD Panel
81
Removing the Webcam
83
Troubleshooting
85
System Check Procedures
86
External Diskette Drive Check
86
External Optical Disk Drive Check
86
Keyboard or Auxiliary Input Device Check
86
Memory Check
87
Power System Check
87
Touchpad Check
88
Power-On Self-Test (POST) Error Messages
89
Post Code Table
90
Index of Symptom-To-FRU Errors
93
Intermittent Problems
97
Undetermined Problems
98
Connector Locations
99
Top and Bottom Views
99
Aspire 5810T/5810TZ/5410T Top View
99
Aspire 5810T/5810TZ/5410T Bottom View
100
Aspire 5810TG Top View
101
Aspire 5810TG Bottom View
102
Clearing Password Check and BIOS Recovery
103
Steps for Clearing Bios Password Check
104
BIOS Recovery by Crisis Disk
104
BIOS Recovery Boot Block/Hotkey
104
FRU (Field Replaceable Unit) List
107
Aspire 5810T/5810TZ/5410T Series Exploded Diagram
108
Aspire 5810TG Series Exploded Diagram
109
Model Definition and Configuration
125
Aspire 5810T/5810TZ/5410T/5810TG Series
132
Test Compatible Components
137
Microsoft® Windows® Vista Environment Test
144
Online Support Information
147
Index
149
