Chapter 5 105

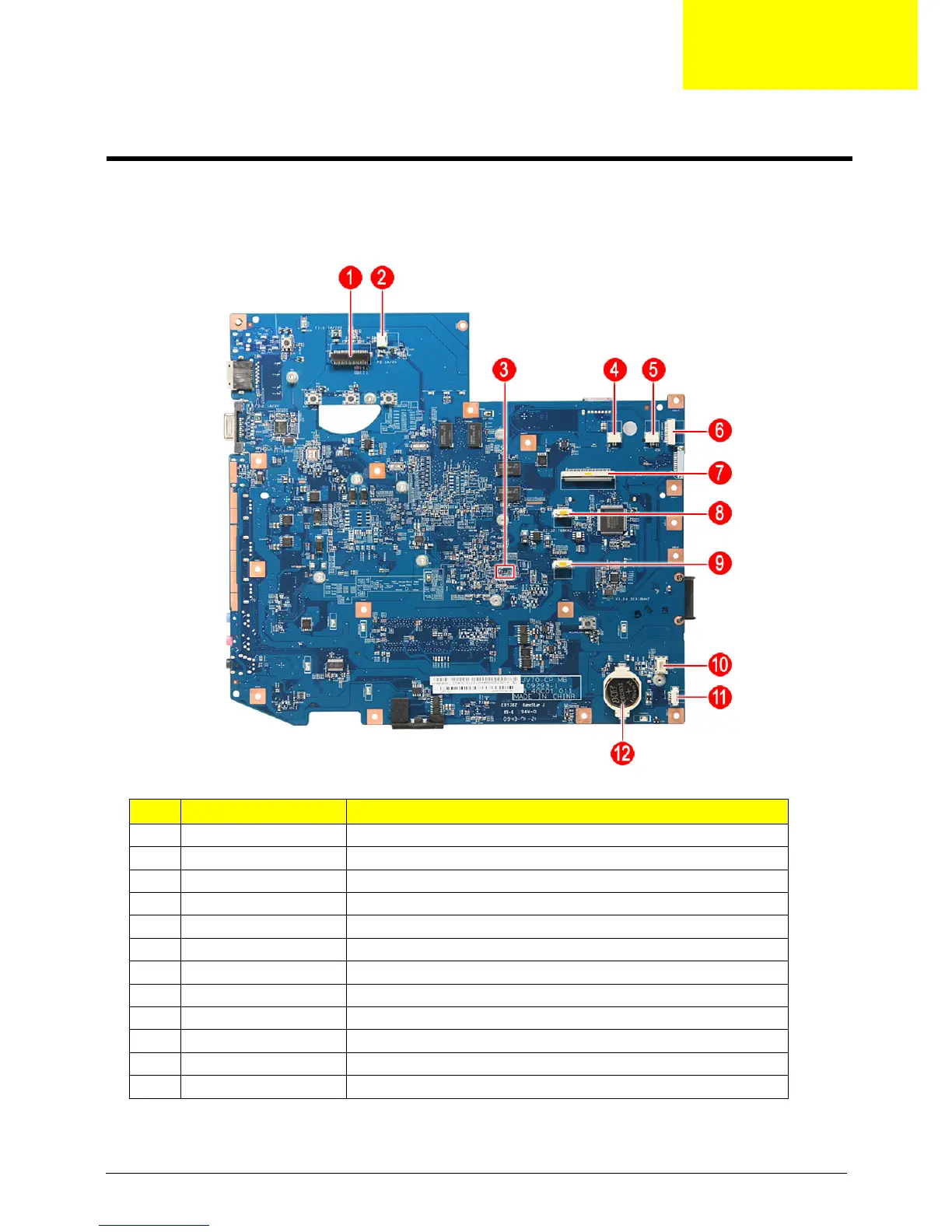

Main Board
Top View
No. Code Connector
1 LCD1 LCD cable connector
2 SPKR_L1 Left speaker cable connector
3 G29 Hardware gap
4 AMIC1 Microphone cable connector
5 SPKR_R1 Right speaker able connector
6 USBCN1 USB cable connector
7 KB1 Keyboard cable connector
8 TPCN1 Touchpad cable connector
9 FPCN1 Touchpad button connector
10 MDC1 Modem board connector
11 BT1 Bluetooth cable connector
12 RTC1 RTC battery socket
Connector Locations
