Acer Aspire 7740G Series User Manual

Chapter 3 85
Removing the FPC Cable
1. See “Removing the Battery Pack” on page 40.
2. See “Removing the Back Cover” on page 42.
3. See “Removing the Wireless LAN Card” on page 44.
4. See “Removing the Middle Cover” on page 53.
5. See “Removing the Keyboard” on page 53.
6. See “Removing the LCD Module” on page 55.
7. See “Removing the LCD Bezel” on page 80.
8. See “Removing the LCD panel with the Brackets” on page 81.

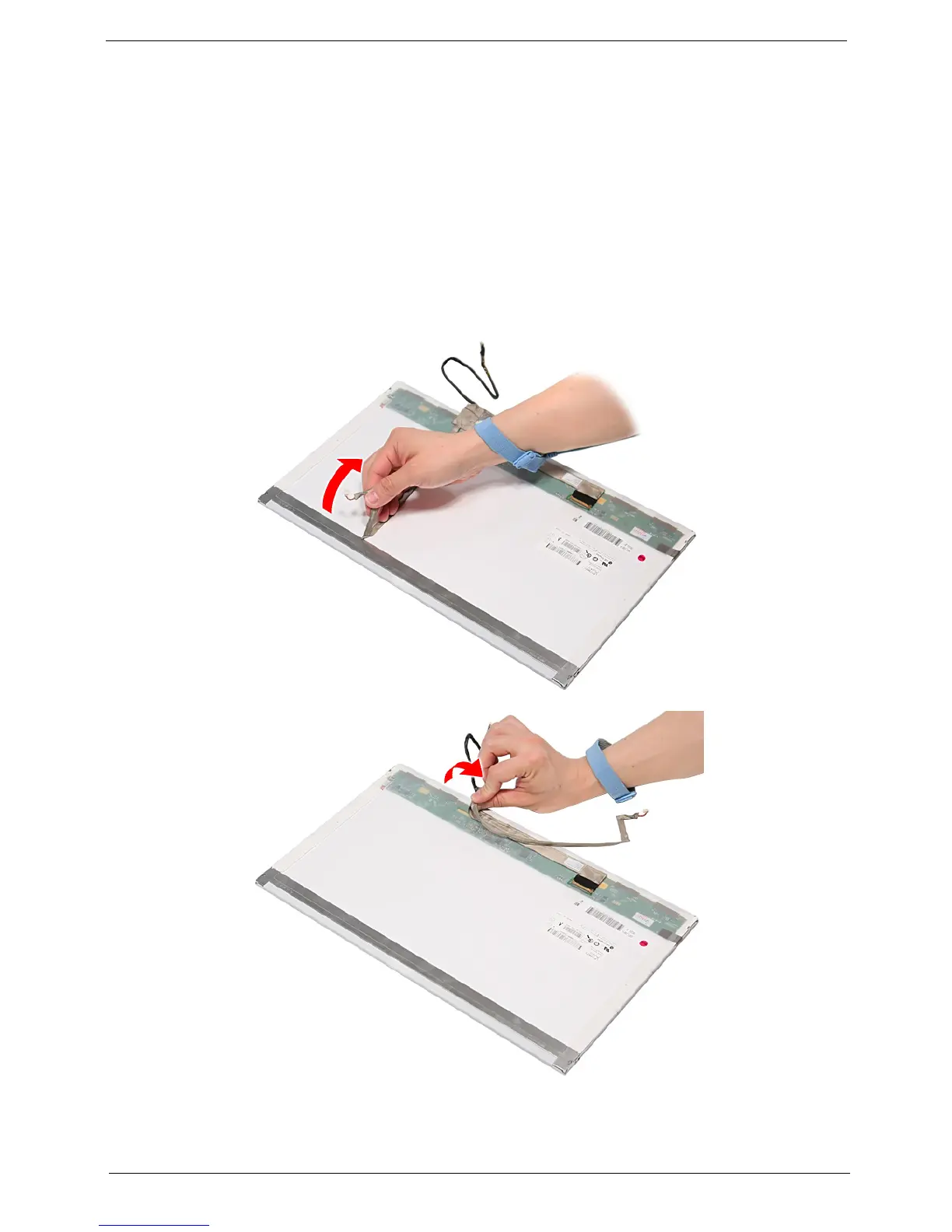

9. Detach all adhesive tapes and any cable that is glued to the LCD panel.

Acer Aspire 7740G Series Specifications

General

Memory	Up to 8GB DDR3
Storage	Up to 640GB HDD
Battery	6-cell Li-ion
Wireless	802.11b/g/n Wi-Fi
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Processor	Intel Core i3/i5/i7
Graphics	ATI Mobility Radeon HD 5650
Display	17.3" HD+ (1600 x 900) / Full HD (1920 x 1080)
Optical Drive	DVD Super Multi DL
Operating System	Windows 7 Home Premium / Professional
Chipset	Intel HM55
Card Reader	Multi-in-1 card reader
Ports	HDMI, VGA, Ethernet
