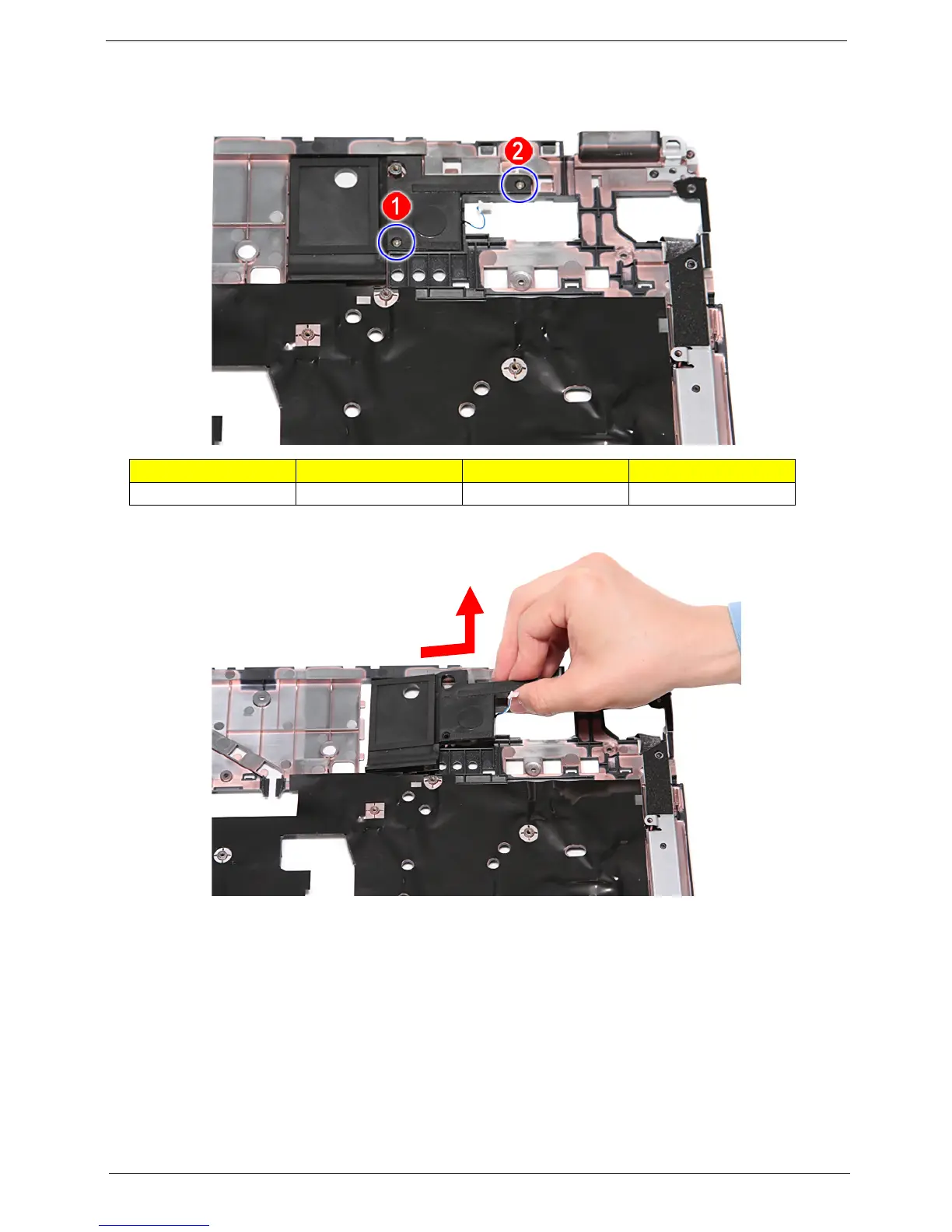

13. Remove the two screws (F) securing the left speaker to the upper case.
14. Remove the left speaker from the upper board.
NOTE: Be careful when removing the left speaker as it is held in place by plastic tabs.
Removing the USB Board Module
1. See “Removing the Battery Pack” on page 40.
2. See “Removing the Optical Drive Module” on page 41.
3. See “Removing the Back Cover” on page 42.
4. See “Removing the Hard Disk Drive Module” on page 43.
5. See “Removing the Wireless LAN Card” on page 44.
6. See “Removing the DIMM Module” on page 46.
Size (Quantity) Color Torque Part No.
M2 x L4 (2) Silver 1.6 kgf-cm 86.9A552.4R0

Acer Aspire 7740G Series Specifications

General

Memory	Up to 8GB DDR3
Storage	Up to 640GB HDD
Battery	6-cell Li-ion
Wireless	802.11b/g/n Wi-Fi
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Processor	Intel Core i3/i5/i7
Graphics	ATI Mobility Radeon HD 5650
Display	17.3" HD+ (1600 x 900) / Full HD (1920 x 1080)
Optical Drive	DVD Super Multi DL
Operating System	Windows 7 Home Premium / Professional
Chipset	Intel HM55
Card Reader	Multi-in-1 card reader
Ports	HDMI, VGA, Ethernet
