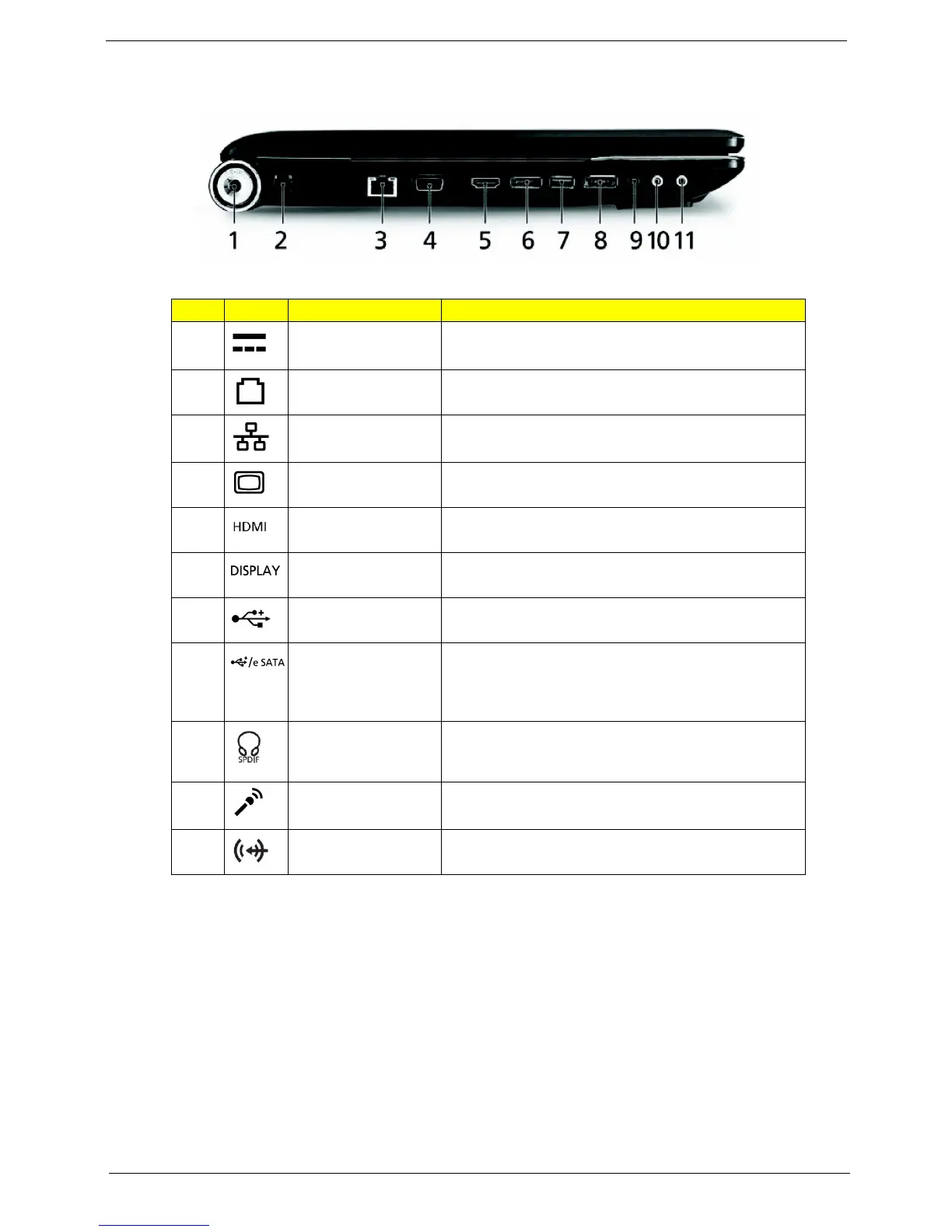

Left View
No. Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 Modem (RJ-11) port Connects to a phone line.
3 Ethernet (RJ-45) port Connects to an Ethernet 10/100-based network.
4 External display
(VGA) port
Connects to a display device (e.g., external monitor,
LCD projector).
5 HDMI port Supports high definition digital video connections.
6 DISPLAY port Supports high definition digital video connections.
7 2 USB 2.0 ports Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
8 USB 2.0 /
eSATA port
Connects to USB 2.0 or eSATA devices (only for
certain models).Note: If you plug an eSATA device
you will have three USB ports available in the mean
time.
9 Headphones/
speaker/line-out jack
with S/PDIF support
Connects to audio line-out devices (e.g., speakers,
headphones).
10 Microphone-in jack Accepts input from external microphones.
11 Line-in jack Accepts audio line-in devices (e.g., audio CD player,
stereo walkman).
