Chapter 1 11

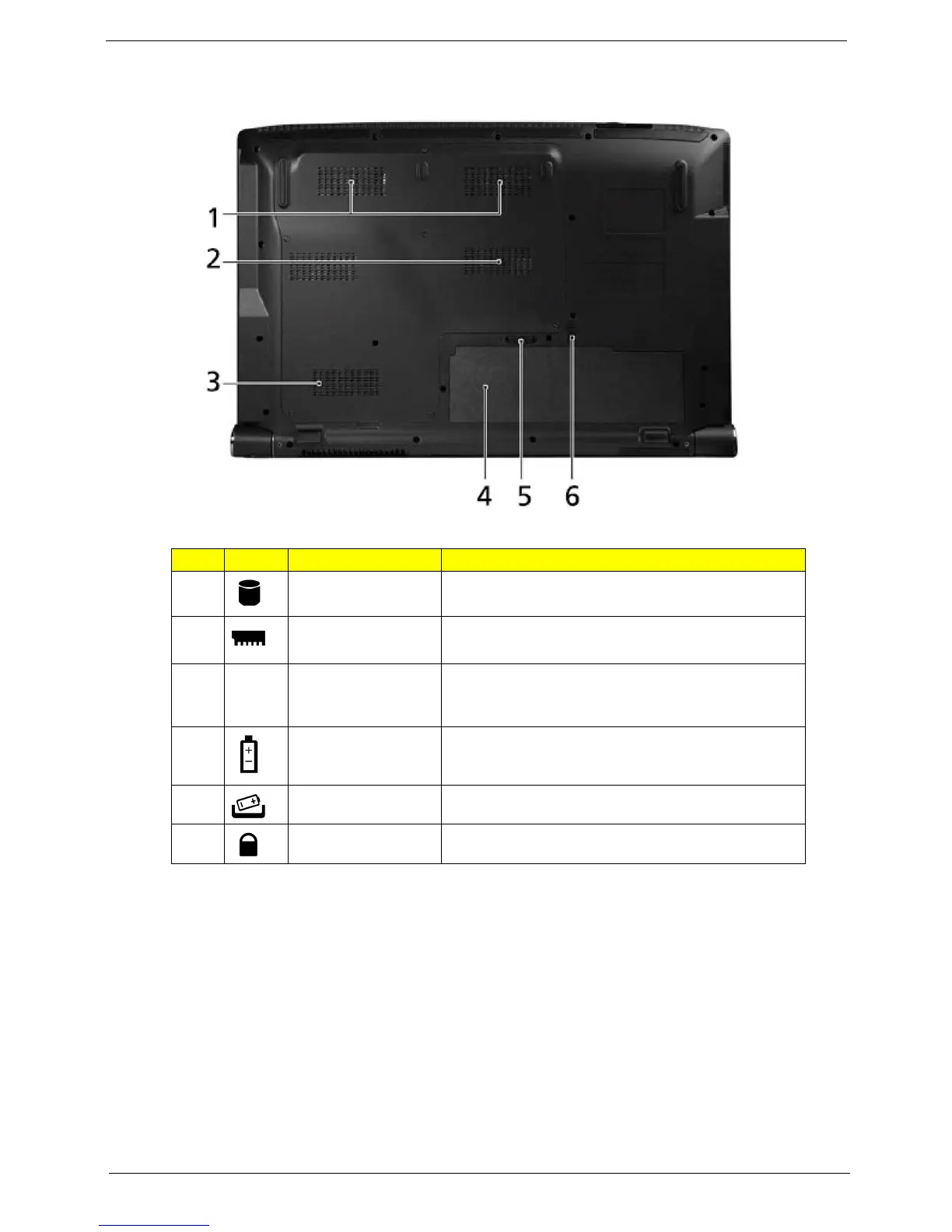

Base view
No. Icon Item Description
1 Hard disk bay Houses the computer's hard disk (secured with
screws).
2 Memory
compartment
Houses the computer's main memory.
3 Ventilation slots and
cooling fan
Enable the computer to stay cool, even after
prolonged use.
Note: Do not cover or obstruct the opening of the fan.
4 Battery bay Houses the computer's battery pack.
5 Battery release latch Releases the battery for removal.
6 Battery lock Locks the battery in position.
