66 Chapter 3

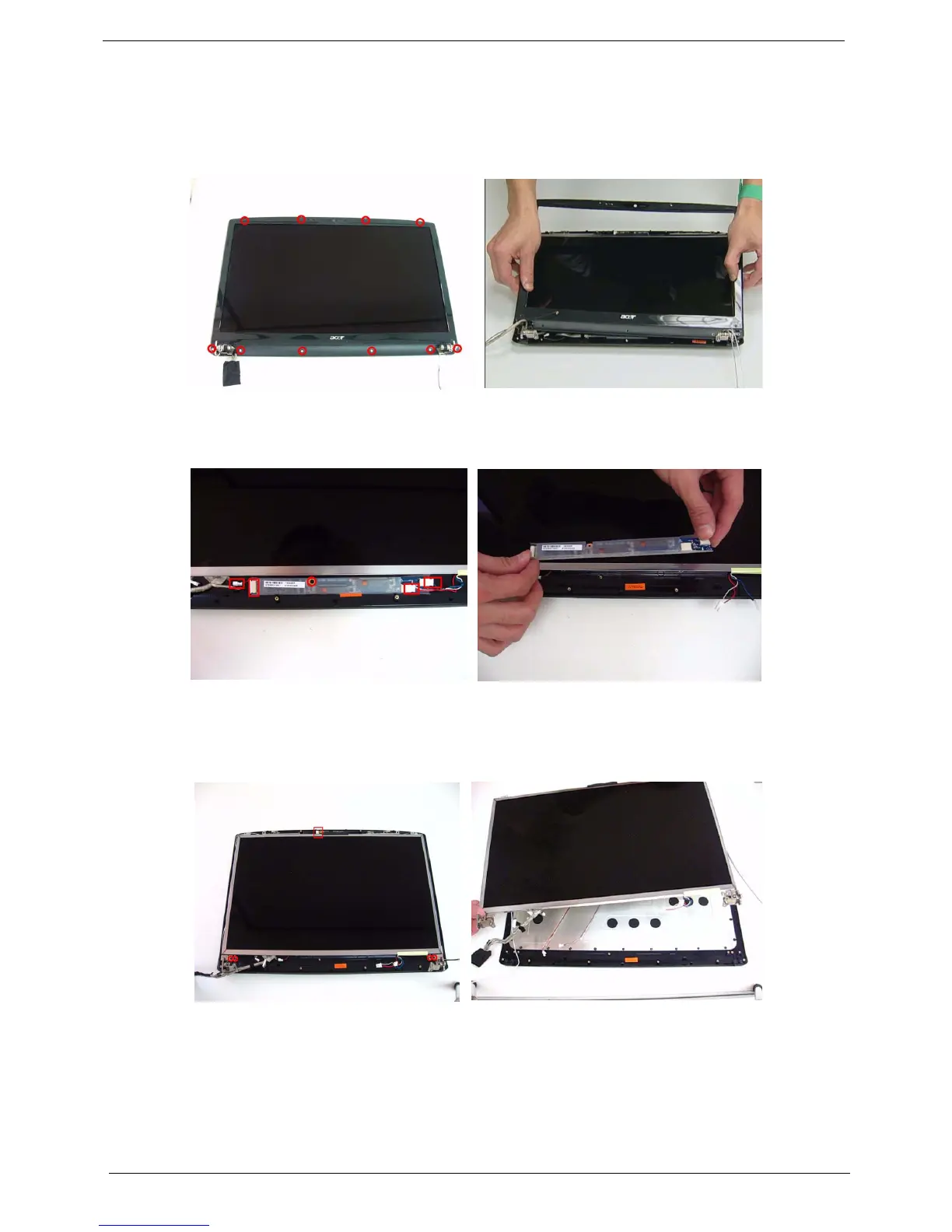

Disassembly LCM module
1. Remove six LCM bezel mylar.
2. Loose 10 LCM bezel screws.
3. Remove LCM bezel.
4. Disconnect Inverter cable and Back LED board cable.
5. Remove Inverter from BTCB.
6. Loose four LCD scrws from the hinge.
7. Disconnect CCD cable.
8. Remove the LCD panel.
