Chapter2 16

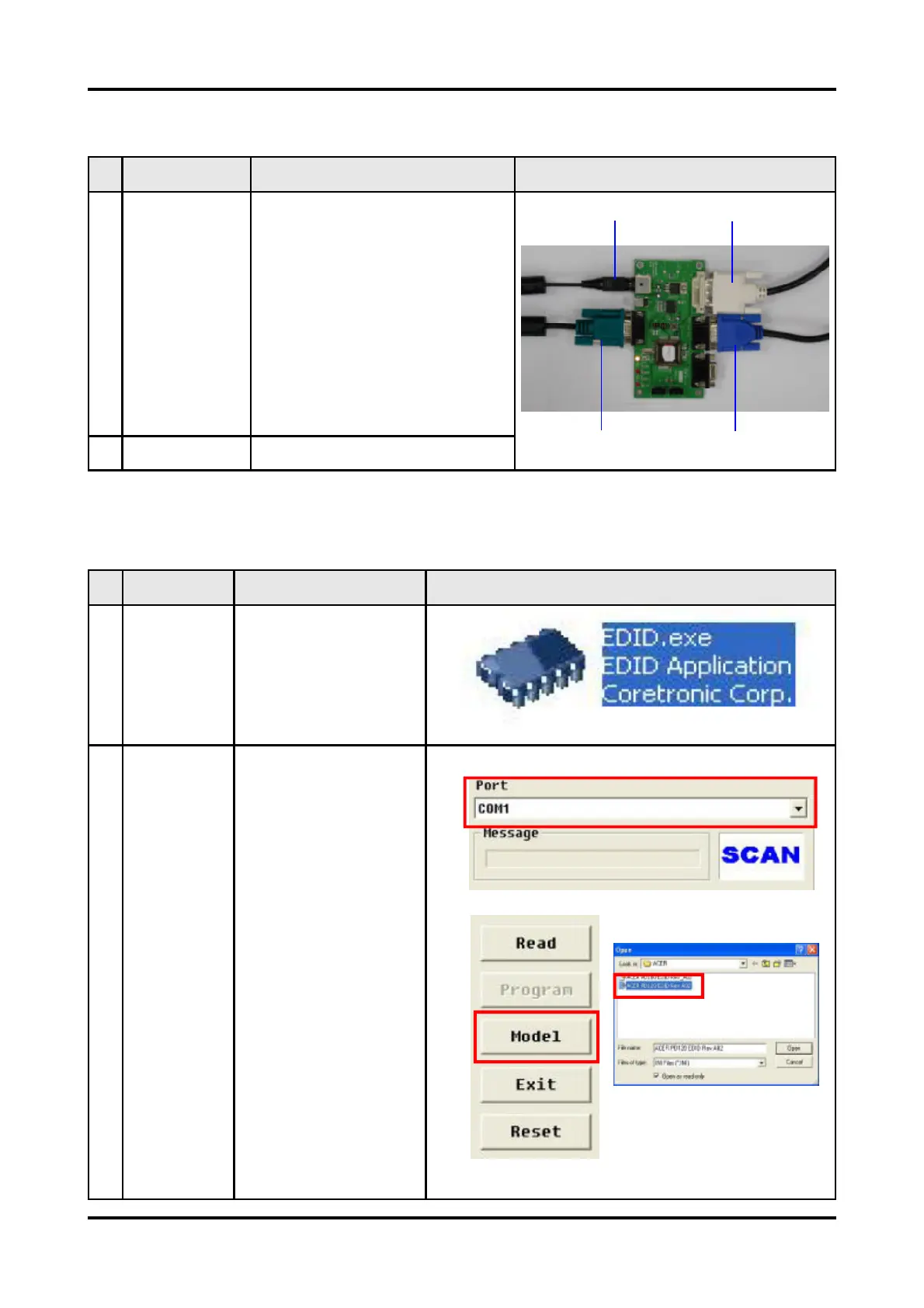

No Step Procedure Photo
1 Connect All Ports 1. Power Adapter to Fixture JP1
2. Fixture P1 to PC COM1 Port
3. Fixture P2 to Projector Analog Port
4. Fixture P3 to Projector Digital Port
2. Power On Fixture Power on Fixture
Setup Procedure
EDID Key-In Procedure
To Analog Port
To Digital Port
Adapter
RS-232 Cable
P3
P2
P1
JP1
No Step Procedure Photo
1 Execute EDID
Program.
Click on "EDID" to execute
EDID Program.
2 Choose Model 1. In the Port Selection Bar,
please choose the Port
that you use.
Ex: If you use "COM 1",
choose COM 1 in the
Port selection.
2. Click on "Model".
3. Choose the EDID that
responses to the model
that you choose.
1
32
To Next Page
