Acer PD100 Service Guide

Chapter 3 28
9. Remove Lamp Driver

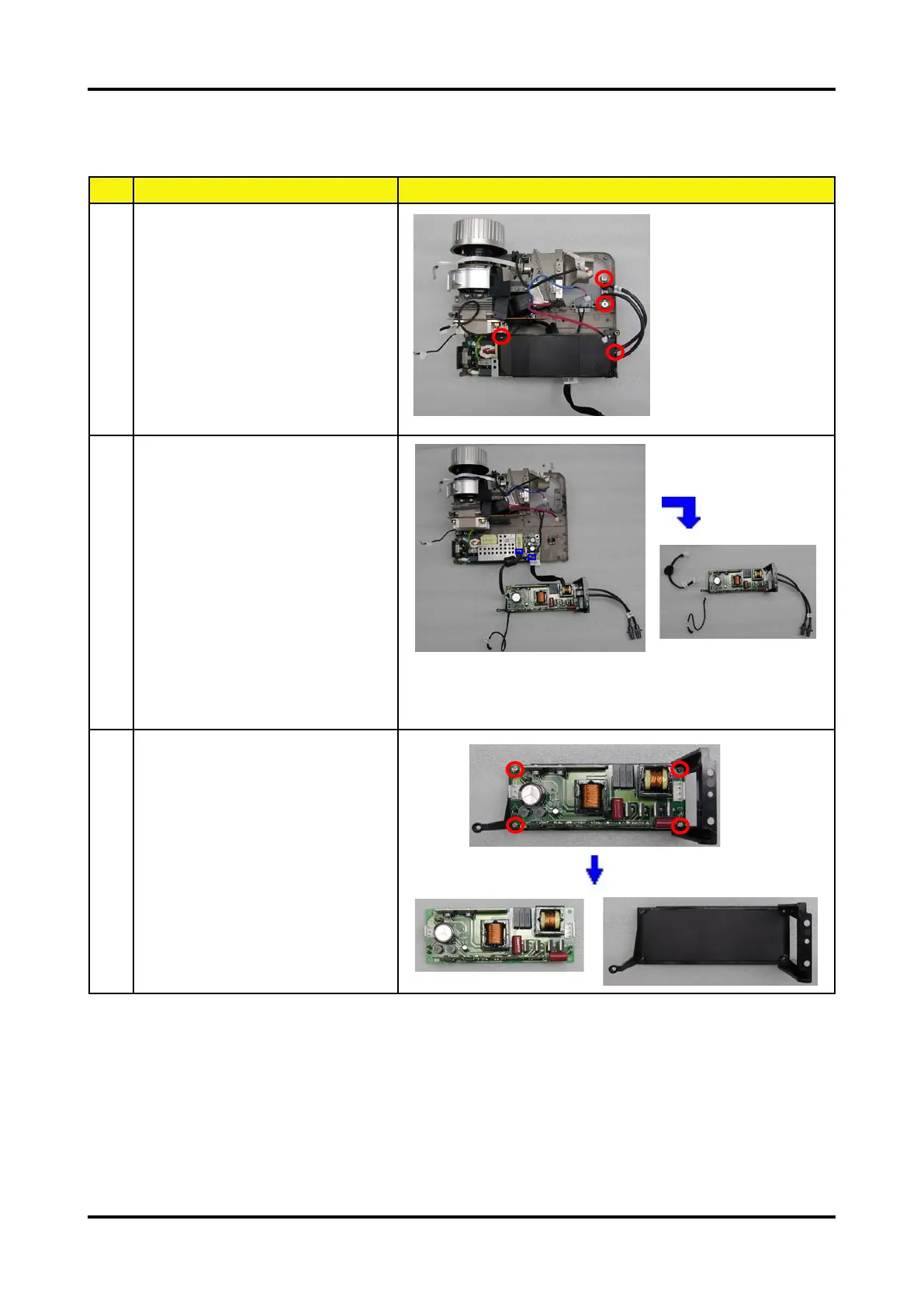

No Procedure Photo
1 Unscrew 4 screws.
2 Unplug 2 connectors to
remove the Lamp Driver
Module.
Note:
When assembling the LVPS,
please be aware of the
LVPS connector connection.
(the shorter wire should be
connected to the LVPS,
and the longer wire should
be connected to the Lamp
Driver.)
3 Unscrew 4 screws to separate
the Lamp Driver Housing.
