Chapter 5 54
Chapter 5
Exploded Overview
Exploded Parts List
Note: Please refer to RSPL for updated Part Number.

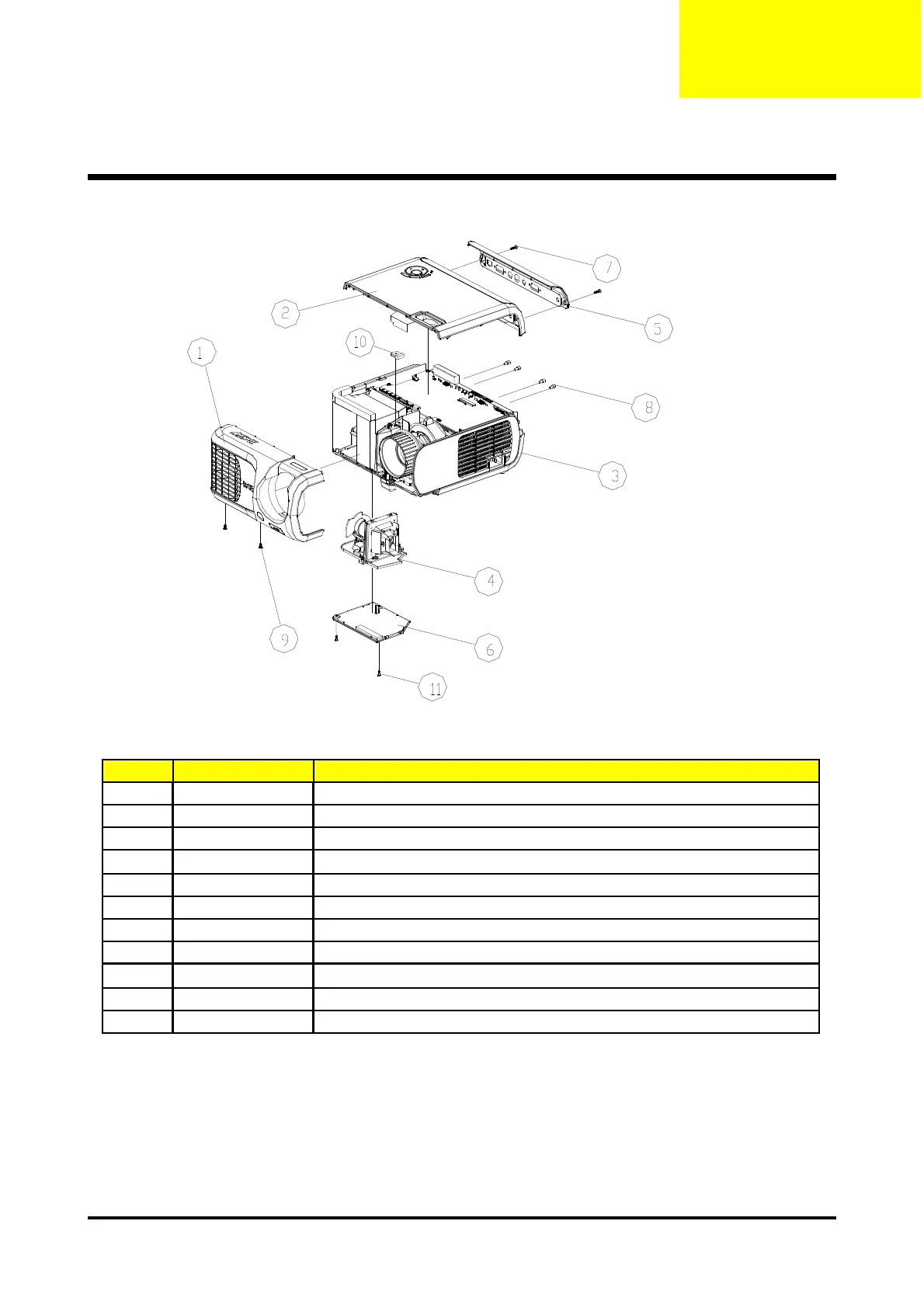

PD100 Exploded Overview
Item Part Number Description
1 70.82V22G001 ASSY FRONT COVER MODULE PD100
2 70.82V24G001 ASSY TOP COVER MODULE PD100
3 70.82V15G001 ASSY BOTTOM HOUSING MODULE PD100
4 70.82G09G001 ASSY LAMP MODULE EP7190
5 70.82V23G001 ASSY BACK COVER DC MODULE PD100
6 70.82V33G001 ASSY LAMP COVER MODULE PD100
7 85.1A323.100 SCREW PAN MECH M3*10 BLACK
8 85.005AGG040 SCREW I/O STEEL #4-40UNC*H4*L5.5 NYLOK
9 85.5A323.060 SCREW BIN MECH M3*6 Black
10 61.00079G001 GROUNDING CABLE CLAMP FN-008 "PINGOOD
11 61.00018G002 LOCK SCREW PAN MECH M3*8.5-3.5 BLACK
To Next Page
