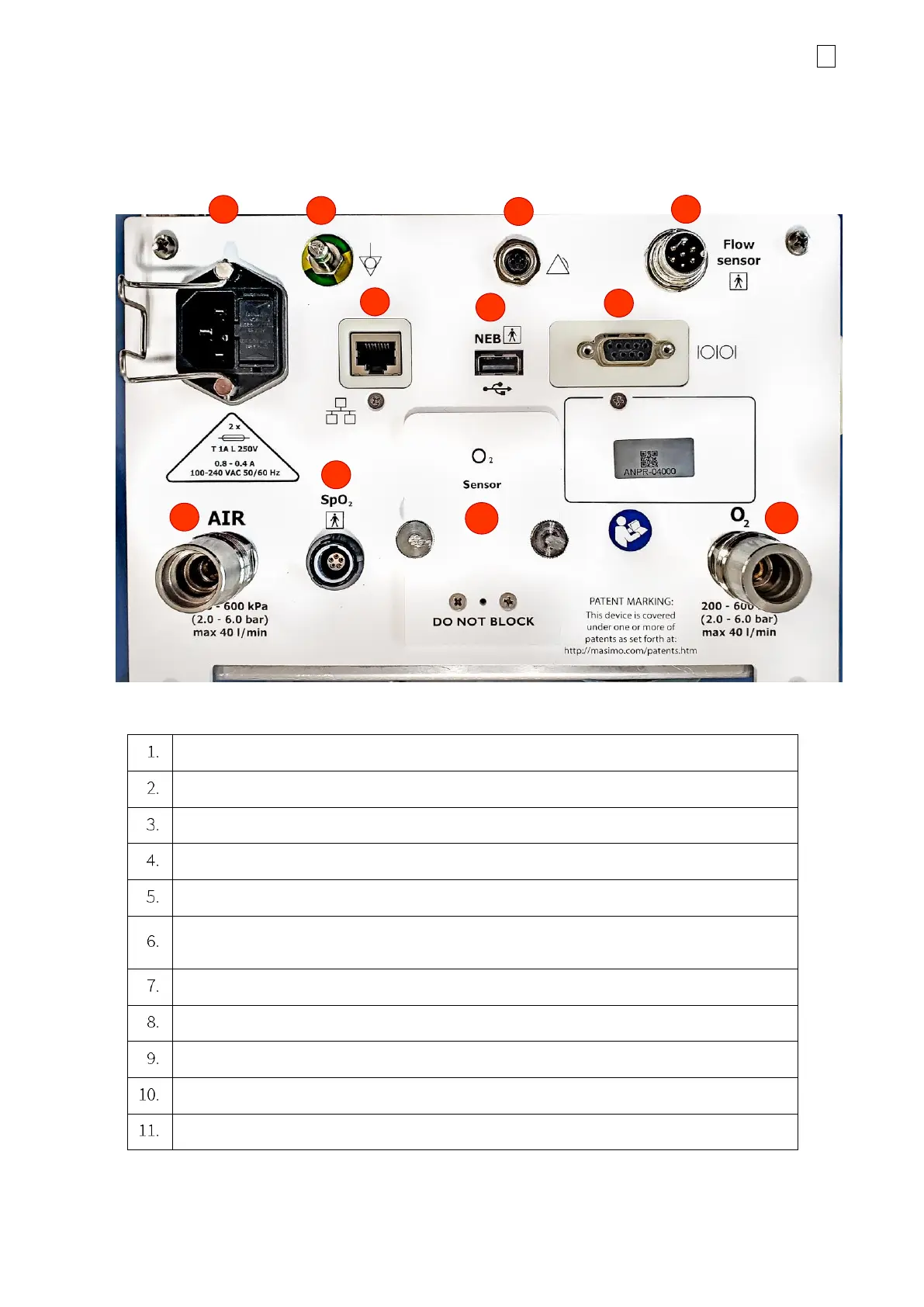

3.4 Rear panel
3.4.1 Devices without DC connector (from SN AN-04000)
Mains connection with fuse holder
Terminal stud for potential equalization
Nurse call connector, max switching voltage 30 VDC
Flow sensor connector
Network connection for data management (disabled)
USB connection for connection of a USB powered nebulizer. Also available when not
in clinical use for data output and software update.
RS232 interface, service, PDMS
Connection for compressed air supply 2.0 – 6.0 bar / max 40 L/min
Connector for Masimo SpO
2
module
Oxygen sensor access cover
Connection for oxygen “O
2
” supply 2.0 – 6.0 bar / max 40 L/min
1
2
5
6
3
7
4
8
9
10
11
