Install Heat Exchanger

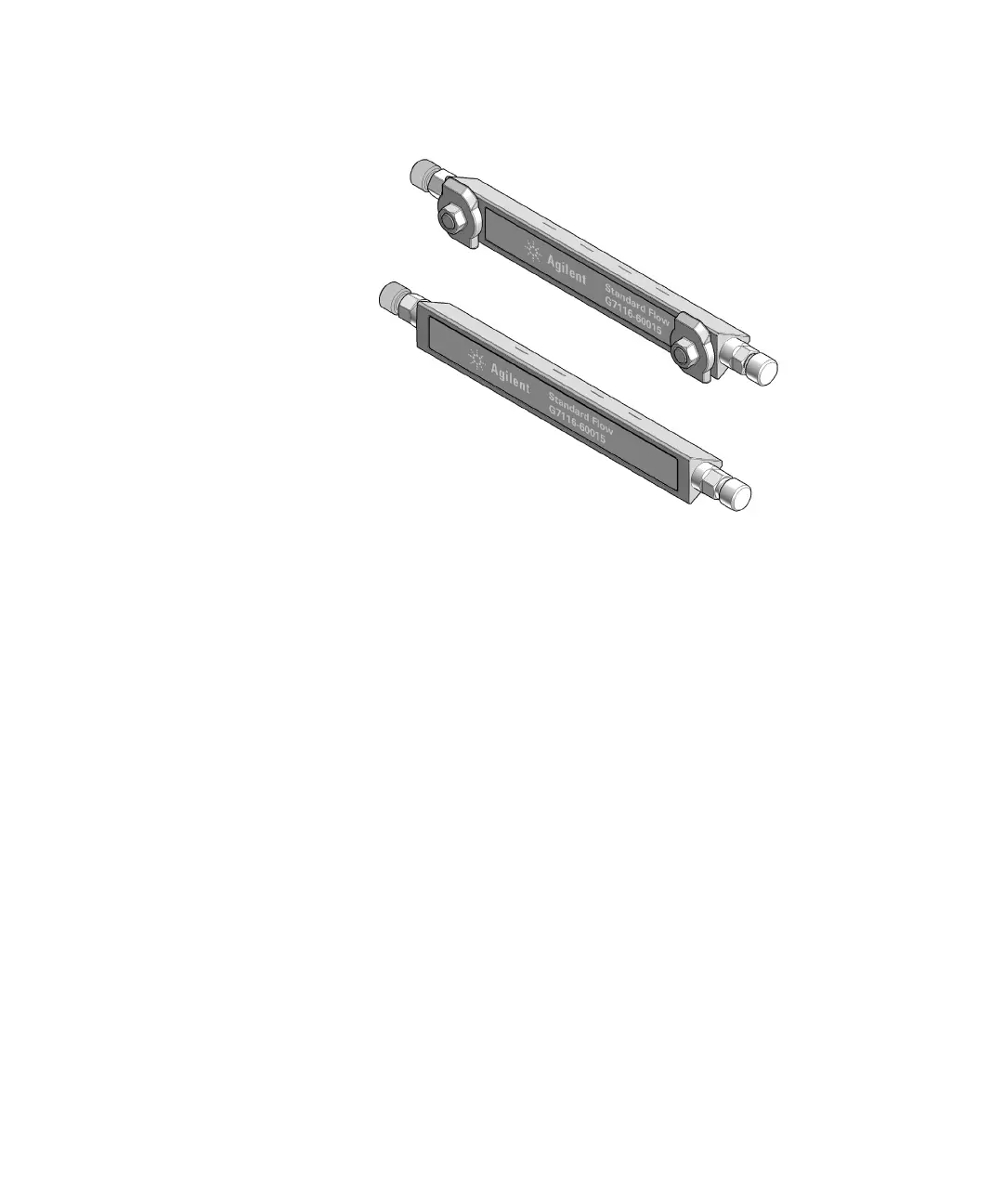

Figure 10 Quick Connect Heat Exchangers of the old design (top, A) and new design (bottom, B)
A
B
Tools required p/n Description
5043-0915 Fitting mounting tool
5023-2502 Hex driver SW-6.35, slitted
8710-0510 Open-end wrench 1/4 — 5/16 inch
Parts required p/n Description
For 1290:
G7116-60015 Quick Connect Heat Exchanger Standard
G7116-60021 Quick Connect Heat Exchanger Ultra Low Dispersion
G7116-60031 Quick Connect Heat Exchanger High Flow
5067-5957 InfinityLab Quick Connect Assy ST 0.12 mm x 105 mm
(from heat exchanger to column)
G7116-68003 Column Holder Lamella, 2/pk
For 1260:
G7116-60061 Quick Connect Heat Exchanger Large ID High Flow
5500-1193 InfinityLab Quick Turn Capillary ST 0.17 mm x 105 mm, long socket
(from heat exchanger to column)
G7116-60051 Quick Connect Heat Exchanger Large ID
5067-5966 InfinityLab Quick Turn Fitting
G7167-68703 Fitting Intermediate Kit
G7116-68003 Column Holder Lamella, 2/pk
Bio-inert option:
