224cc 4 Stroke Petrol Lawn Mower
e-mail: info.aldi@positecgroup.com1300 889 028
MODEL No.: SLM531 • 10/2020 • 10093
21
Assembly
B3 B4
1
2
B5

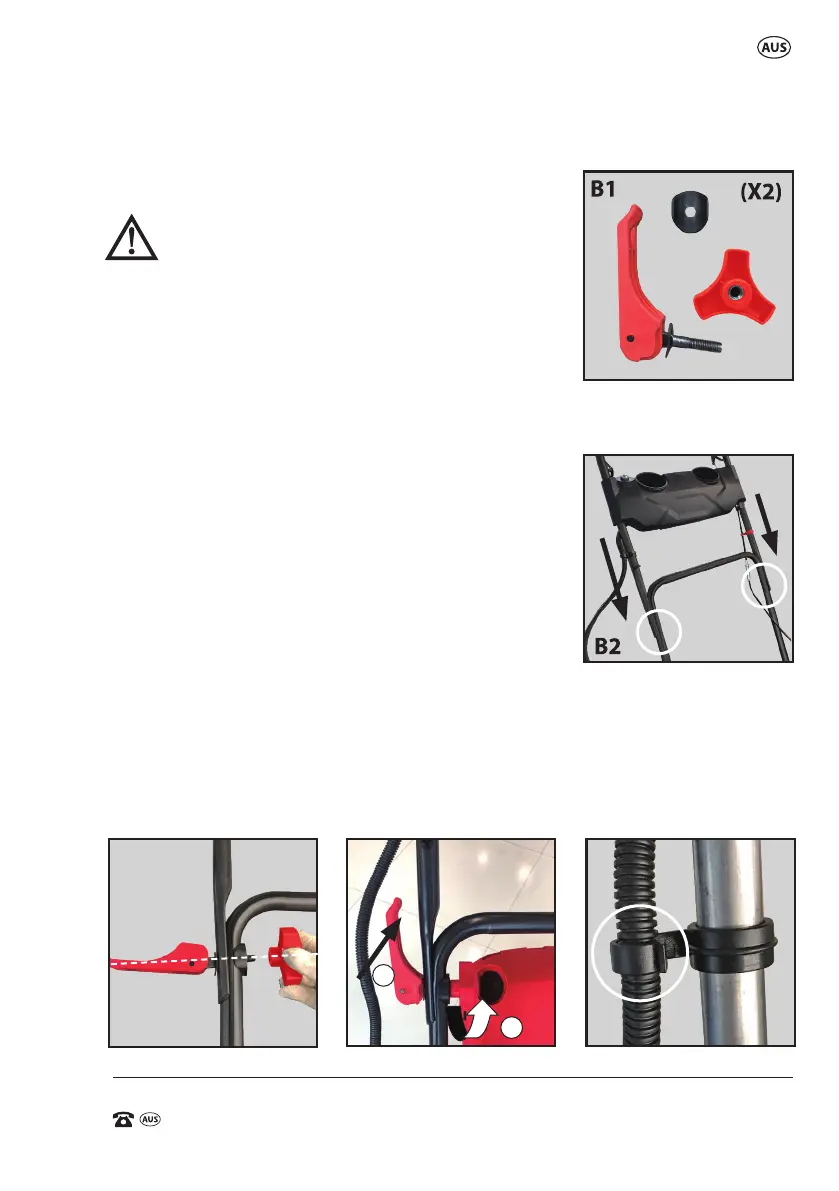

Attaching the Upper Handle Bar to the Lower Handle
With the lower handle (8) in position, the upper
handle bar (1) can now be secured in position.
IMPORTANT: Again ensure the cables are
not tangled or crossing over before
applying the upper handle bar (1).
1.
Take out the 2 x upper handle locking levers (5)
with washers & 2 x curved washers & 2 x locking
knobs (6) from your accessory bag. (Fig. B1)
2. Align and insert the ends of the upper handle
bar (1) on the external side of the lower handle (8) such that the holes in
the ends of the upper handle bar (1) align with the holes in the top of the
lower handle (8). (Fig. B2)
3. Insert the upper handle locking lever (5) bolt
through the upper handle bar (1), then through
the lower handle (8). When in position repeat on
the opposite side to keep the upper handle bar
(1) sturdy in position. (Fig. B3)
4. Apply the curved washer and locking knob (6) on
the internal side of the lower handles (8), push
the locking lever down towards the handle bar
(1), then tighten the locking knob (6) until secure. (Fig. B4)
NOTE: Tension on the upper handle locking lever/s (5) can be adjusted by
rotating the lever (5).
5. The cable holder clips (4) already tted on the lower handle (8) ensure the
key start battery system charging cable (24) and self propel engagement
cable (7) are secure in position above the handle bar and not tangled. (Fig. B5)
