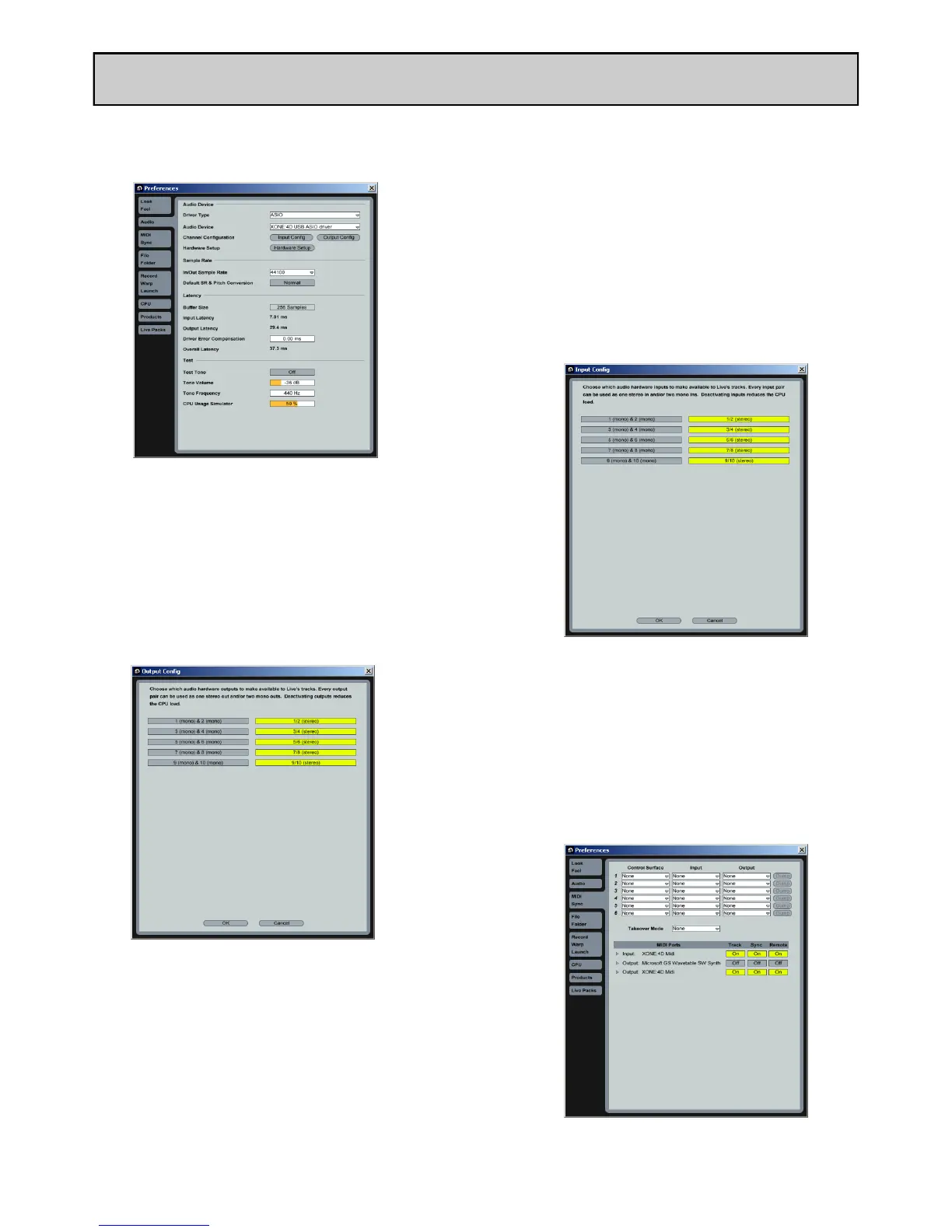

Turn on your Xone:4D, launch your Ableton software and open the Preferences window.
ABLETON SET UP
1— In the Preferences window select the Audio
tab. Change the driver type to ASIO and set the Au-
dio Device to Xone:4D USB ASIO driver
In the Settings section click on the Input Config but-
ton.
2— Select the Stereo options and de-select the Mono
options. You must click OK for the changes to take
effect.
Now, in the Settings section of the Audio tab, click on
the Output Config button.
3—Select the Stereo options and de-select the Mono
options. You must click OK for the changes to take
effect.
Now select the MIDI Sync tab of the Preferences
window.
4— Set the Track, Sync and Remote to On for the
Xone:4D MIDI Input and Output.

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
