ALLEN & HEATH Xone 4D User Manual

Allen & Heath 29 XONE:4D User Guide
FILTER / XFADE SELECT
1 2
OFF
DC
FILTER 1 MIX BUS FILTER 2 MIX BUS MAIN LR MIX BUS
FILTER 1 MIX
FILTER 2 MIX
X Y
CROSSFADER
X
FILTER 1 FILTER 2
Y
XFADE CURVE
XFADE ON
VCA
VCA
LFO DEPTH
TAP TEMPO
FROM INPUT CHANNEL

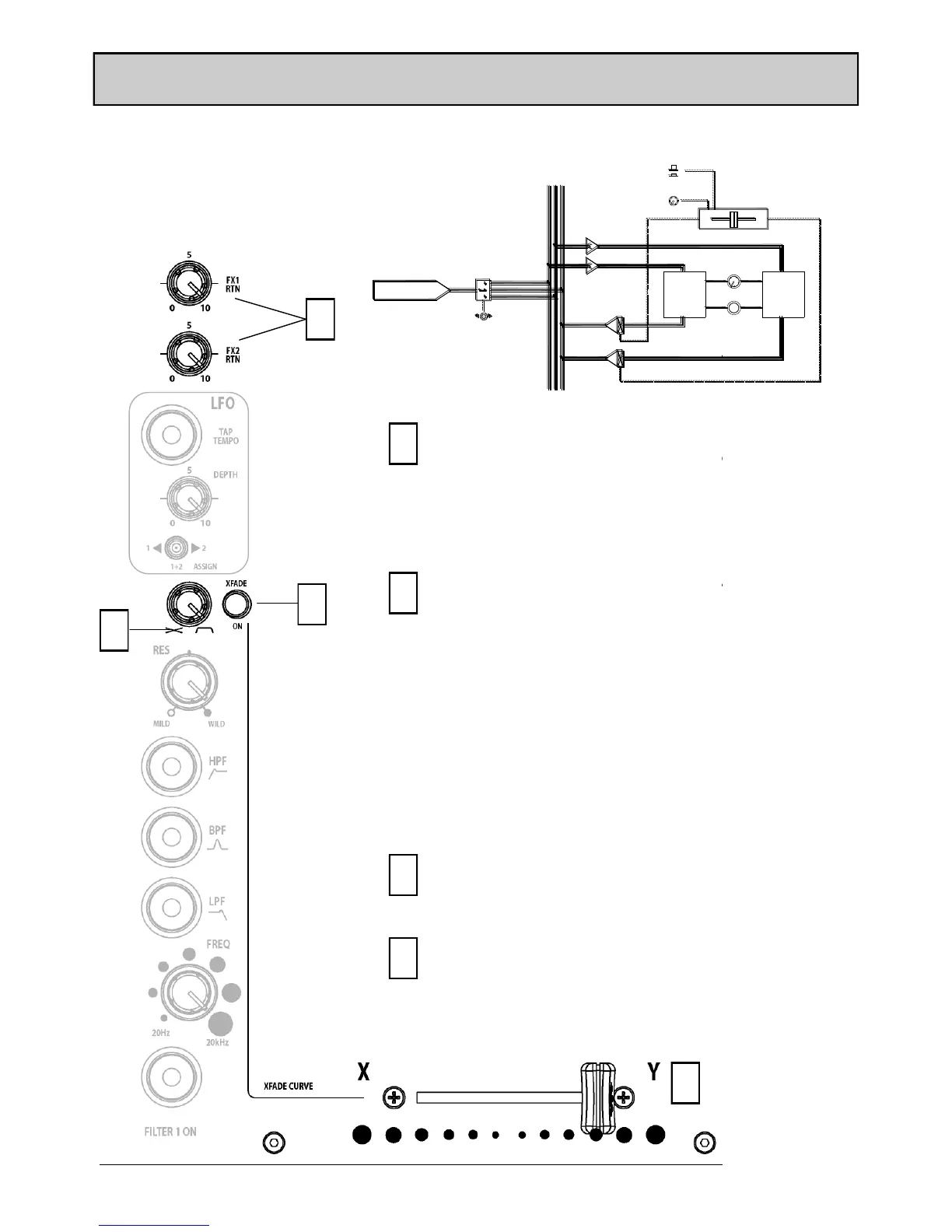

MIXER SECTION — FX RTN & CROSSFADER
1
4
FX Return Controls
These controls route the incoming signal
from the stereo FX1 and FX2 Return RCA
connectors on the rear panel to the mix.
They adjust how much return signal is add-
ed to the mix.
1
Crossfader
This lets you fade between signals routed to
either side, typically to fade smoothly into a
new music track or to creatively layer
sounds when scratch or cut mixing.
The crossfader is a VCA controller, which
affects the level of signals routed via the
filters. Make sure the toggle switches on the
channels you wish to fade are set to X or Y
as appropriate.
Please contact your Allen and Heath
approved service centre for crossfader
service or replacement.
2
Xfade on switch
Press this switch to activate the crossfader.
3
3
2
XFade Curve Control
This control adjusts the crossfader curve
between dipped response, ideal for seamless
beat mixing and fast-attack, suitable for
scratch or cut mixing.
4

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
