Allen & Heath 47 XONE:4D User Guide
SPECIFICATIONS
Dimensions and Weights
The console is fitted with rubber feet for desktop operation. A screw on rack ear kit is
included for 19” rack or plinth mounting.
Width Height Depth Weight
Desktop 432 mm (17”) 88 mm (3.5”) 358 mm (14”) 5kg (11 lbs)
Rack ears fitted 483 mm (19”) 88 mm (3.5”) 358 mm (14”)
Packed 575 mm (22.6”) 195 mm (7.7”) 490 mm (15.7”) 6 kg (13.2 lbs)

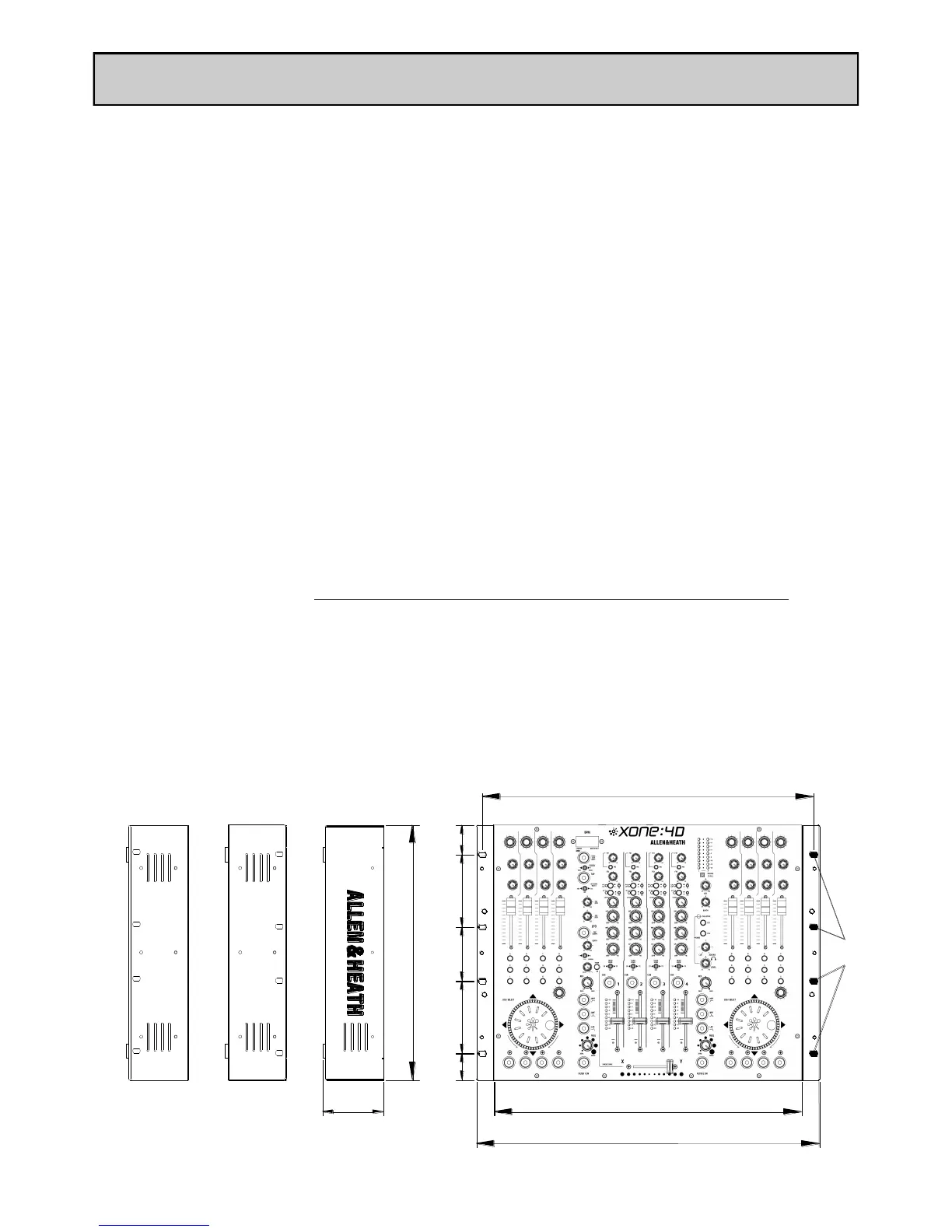

Rack ears allow permanent fixing in a plinth or rack system. They can be fitted two ways; either
with the flange flush with the top panel or flush with the underside of the chassis. The rack ears
are fixed in place using the 6x M4 screws provided. Ensure that air vents are not obstructed.
432
483 with rack ears fitted
465 rack ear fixings
88
358
76.2101.637.3 101.6 41.3
M6
Operating levels
Main outputs +4dBu XLR
Monitor 0dBu RCA
FX sends -2dBu RCA
Maximum output level +26dBu
Mic Sensitivity -45 to -15dBu
RIAA input sensitivity 7-100mV 47K/330pF
Frequency response Line in to Mix out 20 Hz to 30KHz +0/-2dB
Distortion at 1kHz Line in at +0Vu out <0.02%
Main Mix noise 22Hz— 22KHz unweighted <-80dBu (84dB S/N)
Residual Mix noise22Hz— 22KHz unweighted <-97dBu
Equalization 3-band +6dB/off (kill), 120Hz, 1.2kHz, 10kHz
Fader Shutoff <-90dB

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
