It is most important that the system level settings are correctly set. It is well known
that many DJs push the level to maximum with meters peaking hard in the belief that
they are getting the best from the system. THIS IS NOT THE CASE ! The best
can only be achieved if the system levels are set within the normal operating range
and not allowed to peak. Peaking simply results in signal distortion, not more vol-
ume. It is the specification of the amplifier / speaker system that sets the maximum
volume that can be achieved, not the console. The human ear too can fool the oper-
ator into believing that more volume is needed. Be careful as this is in fact a warning
that hearing damage will result if high listening levels are maintained. Remember that
it is the QUALITY of the sound that pleases the ear, not the VOLUME.
OPERATING LEVELS

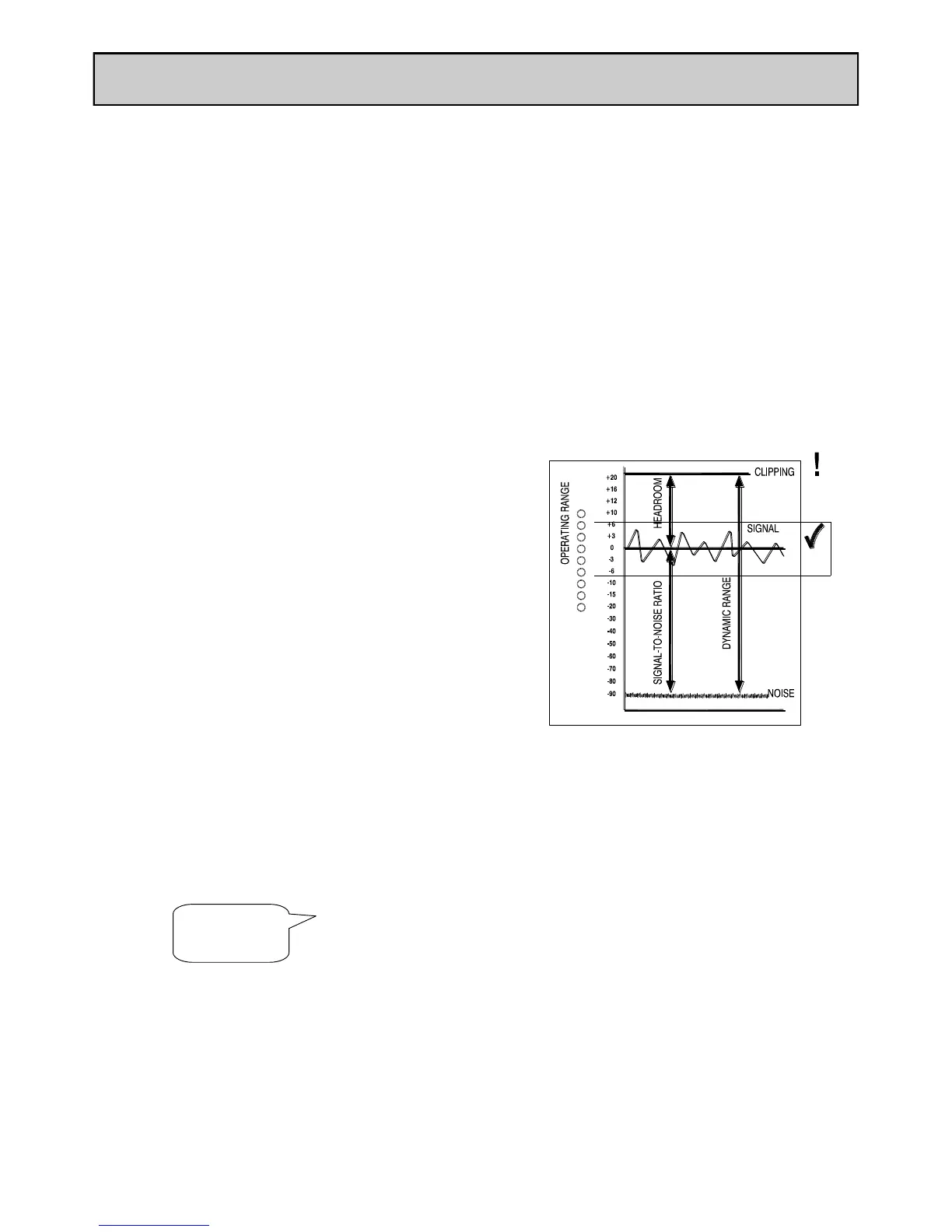

This diagram illustrates the operating range of
the audio signal.
NORMAL OPERATING RANGE. For
normal music the signal should range between
–6 and +6 on the meters with average around
0dB. This allows enough HEADROOM for
unexpected peaks before the signal hits its
maximum CLIPPING voltage and distorts.
It also achieves the best SIGNAL-TO-
NOISE-RATIO by keeping the signal well
above the residual NOISE FLOOR (system
hiss).
The DYNAMIC RANGE is the maximum
signal swing available between the residual
noise floor and clipping.
An important note …
The human ear is a remarkable organ with the ability to com-
press or ‘shut down’ when sound levels become too high. Do
not interpret this natural response as a reason to turn the sys-
tem volume up further ! As the session wears on ear fatigue
may set in, and the speaker cones may become hot so reducing
the effectiveness of the system and listeners to gain any benefit
from increased volume.
!

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
