Allen & Heath 23 XONE:4D User Guide

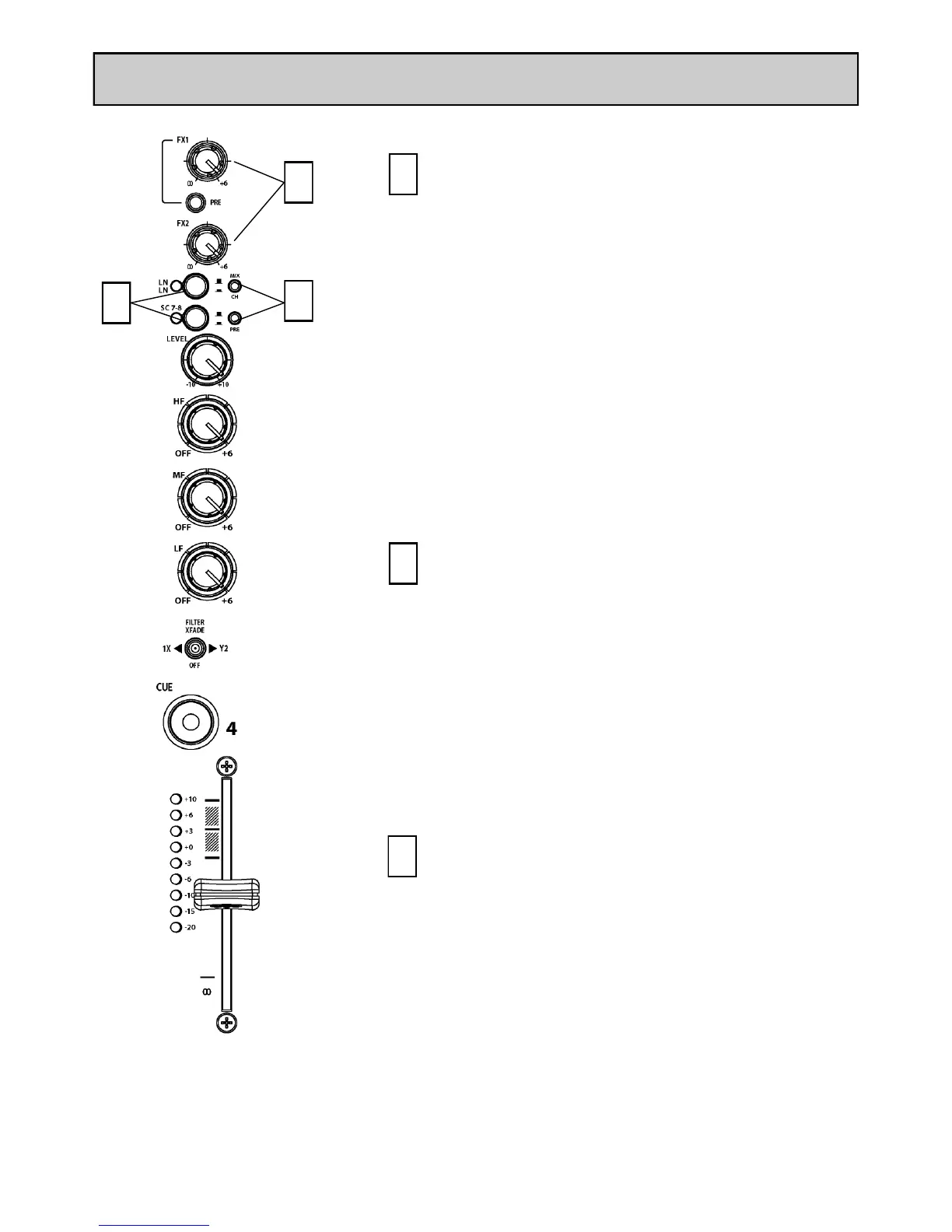

MIXER SECTION — CHANNEL INPUT
1
2
3
FX 1-2 send controls
These controls adjust the signal level that
is sent from each channel to the two FX
mix busses. These signals will appear at
the RCA sockets on the rear of the unit.
FX1 PRE switch determines whether the
FX1 send signal is affected by the channel
fader. When pressed the signal is pre-
fader, when released post-fader.
FX1 can also be sent to the input of the
soundcard for processing or recording by
the PC (see Soundcard Mode for
details).
FX2 is pre-fader (this can be changed
internally - see User Options). FX2 can
also be selected as the audio source for
the Auto Beat detector (See BPM
Detector).
1
Input Selection
Two switches select one of three possible
stereo audio sources; Line A (RIAA phono
on CH 1-3), Line B, or output from the
computer via the internal soundcard (SC1-
6). Switch 2 (SC) overrides switch 1
(phono/line). The LED indicator displays
which source is active:
CH1 CH2 CH3 CH4
Switch1 gn LineA Phono Phono Phono
Switch1 red LineB LineB LineB LineB
Switch2 red SC1-2 SC3-4 SC5-6 SC1-2
2
Soundcard Input Selection Switches
Two switches select one of three possible
soundcard input sources. All channels have
the option of pre or post channel fader
sends as well as the microphone input, FX1
bus, FX2 bus and main mix. The selector
switches are set up as follows:
Ch Switch 1 Switch 2
1 Mic / Channel Pre / Post fader
2 FX2 / Channel Pre / Post fader
3 FX1 / Channel Pre / Post fader
4 Mix / Channel Pre / Post fader
3

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
