ALLEN & HEATH Xone 4D User Manual

Allen & Heath 30 XONE:4D User Guide
MIC
-12
+ 12
-12
+ 12
0
LEVEL
10
PHONES
HFLF

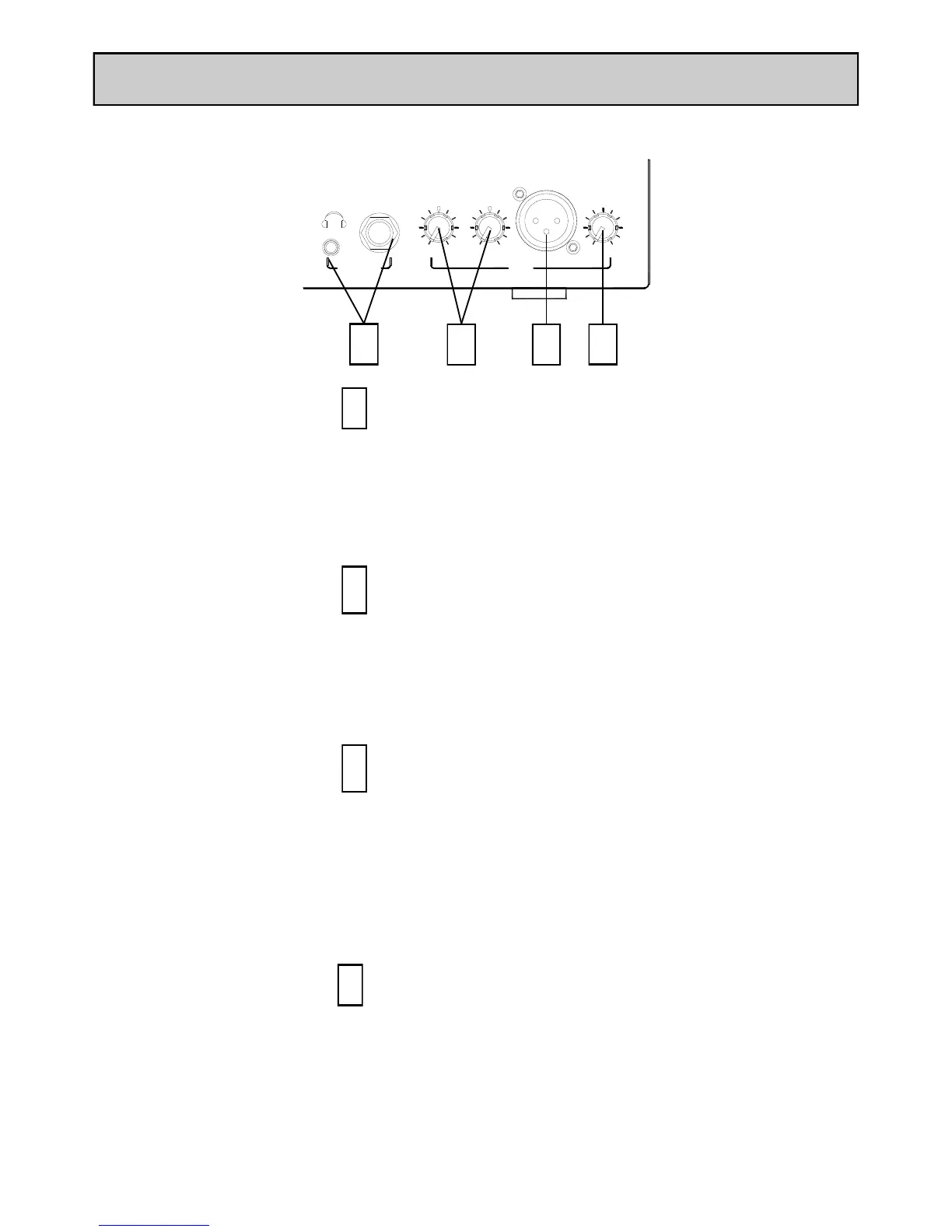

FRONT CONTROLS & CONNECTORS
Headphones Outputs
Stereo 1/4” TRS jack and 3.5mm mini-jack. Plug in
good quality stereo headphones intended for DJ
monitoring. Use closed-ear headphones that
provide maximum acoustic isolation when cueing
your sources. We recommend that you use high
quality headphones rated between 30 to 100 ohms
impedance. 8 ohm headphones are not
recommended.
1
1
4 2
3
Mic EQ Controls
The MIC equaliser provides a tool to adjust the
tonal quality of the sound to correct source
problems such as microphone response, proximity
effect, noise and feedback, to help the voice cut
through the mix, or to adjust the overall ‘feel’.
Start with the EQ controls set to their mid (flat)
position, then adjust to achieve the desired sound.
2
Mic Input
Balanced XLR. Plug in a DJ, guest or announcement
microphone here. Use a good quality low
impedance dynamic mic such as those specifically
designed for vocals. Do not use high impedance or
unbalanced microphones, or condenser types which
require phantom power. Use the best professional
grade balanced cables and connectors you can
afford, as these are typically subject to intense use
and abuse in the club environment.
3
Mic Level Control
Adjusts the input sensitivity of the Mic channel to
match the connected source to the console’s 0dB
operating level.
When the Mic channel is not in use, always turn the
level control fully anti-clockwise to prevent
unwanted noise from this sensitive input entering
the main Mix.
4

ALLEN & HEATH Xone 4D Specifications

General

Sample rate	96 kHz
Frequency range	22 - 22000 Hz
Channels quantity	20 channels
Digital sound processing	24 bit
Microphone in	Yes
Product color	Black
Video capability	No
Equalizer bands quantity	3

Weight and Dimensions

Depth	358 mm
Width	432 mm
Height	88 mm
Weight	5000 g
Package depth	490 mm
Package width	575 mm
Package height	195 mm
Package weight	6000 g
