2–18 Installation
Publication 1203–5.1 –– July, 1997
The Enclosed remote I/O is powered from a separate 24V dc or
115V ac power supply (Figure 2.17). With the open style remote I/O
board mounted in the drive, no separate power supply connections
are required.

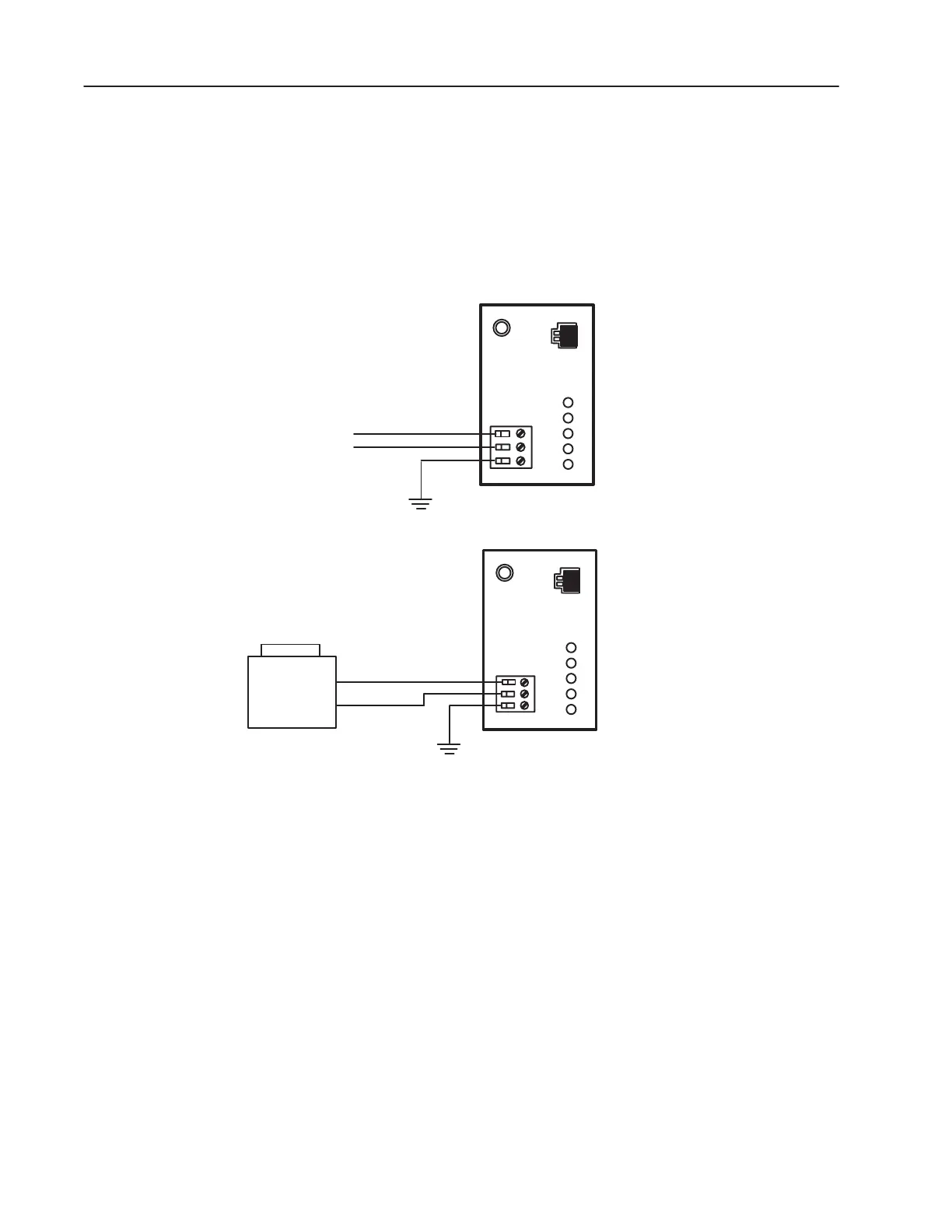

Figure 2.17
Typical Power Supply Connection
Enclosed Remote I/O
Communication Module
115/230V
Typical Connection
L
N
G
GND
115V AC Hi
115V AC Low
Enclosed Remote I/O
Communication Module
24V DC
Typical Connection
+
–
G
GND
24V DC +
Power
Supply
–
Connecting the Power
Supply
