Chapter 3 Lift and Mount the Drive
Join the Cabinets
To join the cabinets, follow these steps.
1. Pass the M8 x 16 mm hex-head thread-forming screws from inside the
wiring bay through the clearance holes.
2. Engage the screws with the holes in the cabinet options bay.
Make sure that the cabinets are level and aligned and pushed tightly
together.
3. Lightly tighten the screws in a uniform pattern.

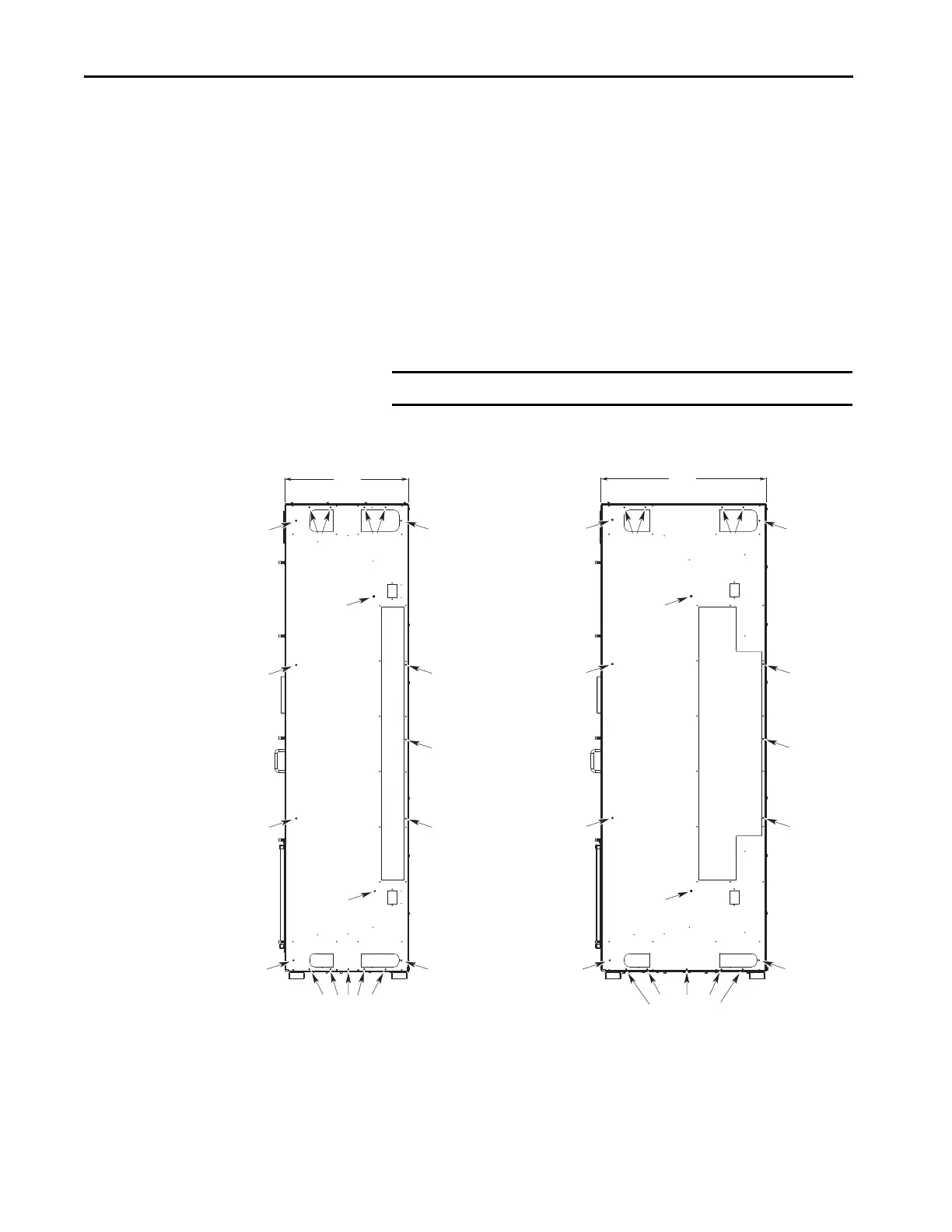

4. Torque the screws as shown here.
IMPORTANT Do not use hardware to draw cabinets together.
600
(23.6)
800
(31.5)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
1.3 N•m
(100 lb•in)
9.0 N•m
(80 lb•in)
9.0 N•m
(80 lb•in)
9.0 N•m
(80 lb•in)
9.0 N•m
(80 lb•in)
9.0 N•m
(80 lb•in)
9.0 N•m
(80 lb•in)
