Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 161

Configure a Standard Module Chapter 6

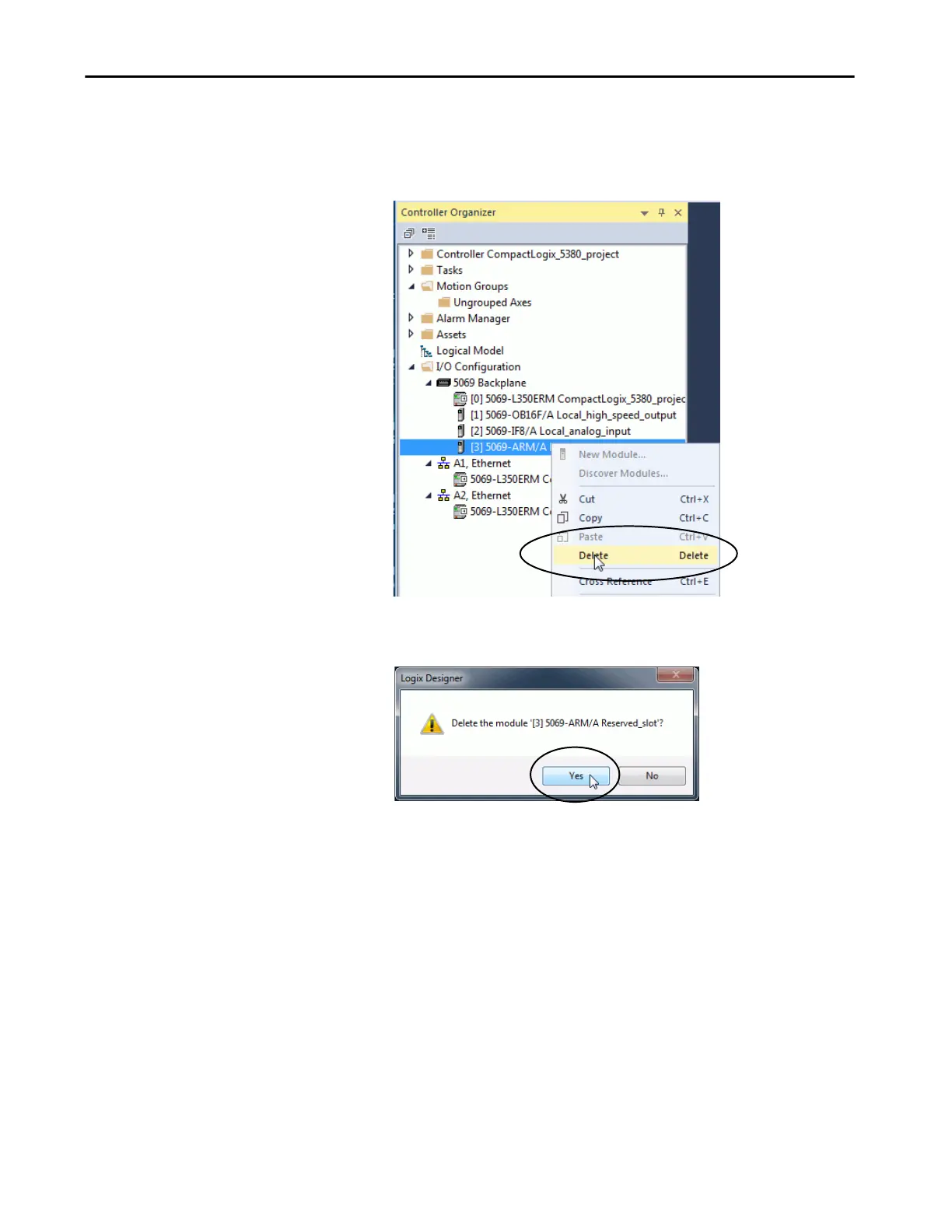

You must delete the 5069-ARM module from the project as follows.

1. Right-click the module name and choose Delete.

2. To confirm the module deletion, click Yes on the dialog box

that appears.

3. To add the Compact 5000 I/O digital module that uses the node

address that the 5069-ARM module reserved, follow the steps that are

described previously in this section.
