Troubleshoot Your Module Appendix A
Compact 5000 I/O
Standard Output
Modules Status Indicators

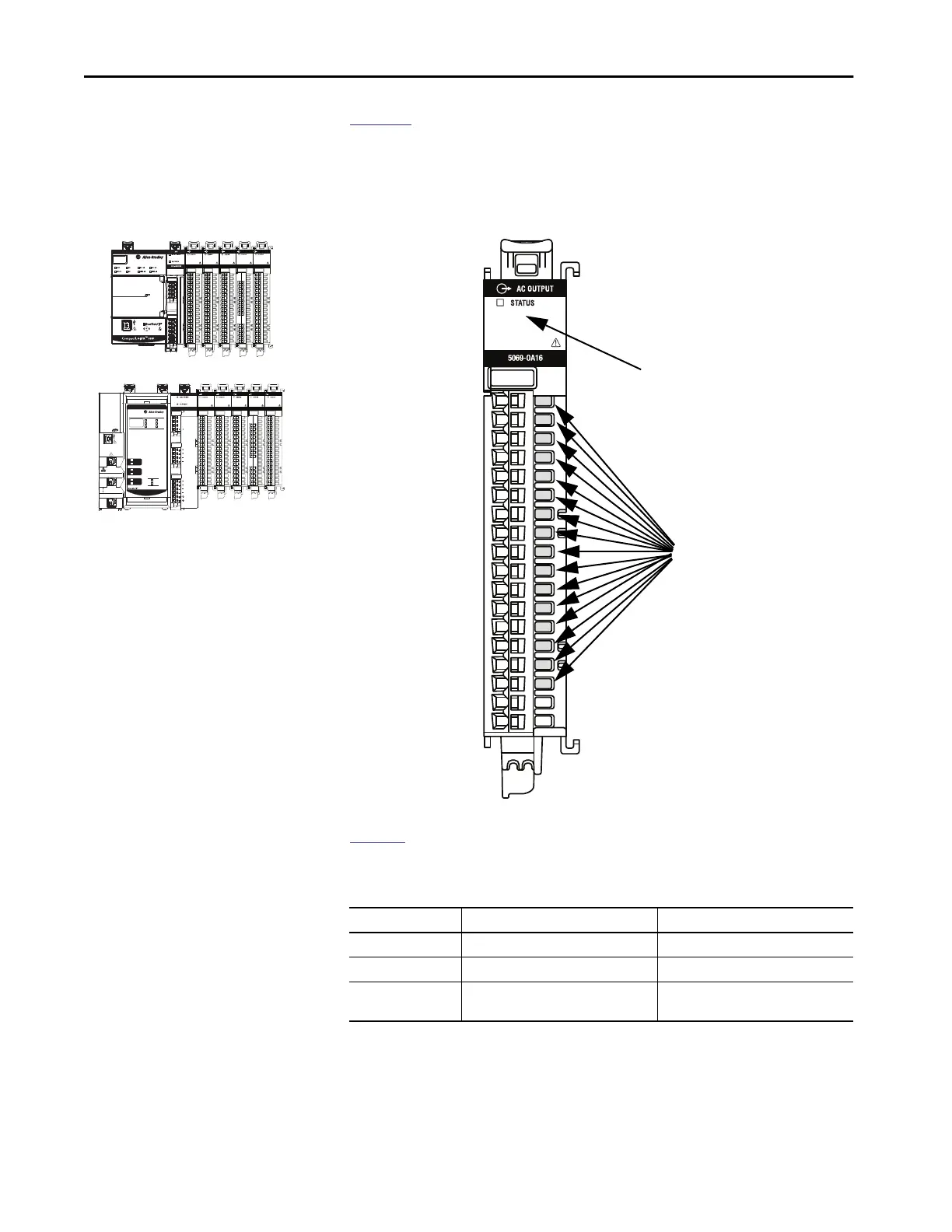

Figure 23 shows the status indicators on the Compact 5000 I/O standard AC
output module.
Figure 23 - Compact 5000 I/O Standard AC Output Modules Status Indicators
Table 51 describes the I/O status indicators on Compact 5000 I/O standard
AC output modules.
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Table 51 - I/O Status Indicators - Compact 5000 I/O Standard AC Output Module
Indicator State Description Recommended Action
Off Output is Off, or no module power applied. None
Steady yellow The output is On. None
Flashing red A Field Power Loss detection
condition exists.
Reconnect power to the input.
5069-OA16
Output Channel 0 (O00)
Output Channel 1 (O01)
Output Channel 2 (O02)
Output Channel 3 (O03)
Output Channel 4 (O04)
Output Channel 5 (O05)
Output Channel 6 (O06)
Output Channel 7 (O07)
Output Channel 8 (O08)
Output Channel 9 (O09)
Output Channel 10 (O10)
Output Channel 11 (O11)
Output Channel 12 (O12)
Output Channel 13 (O13)
Output Channel 14 (O14)
Output Channel 15 (O15)
No Connect
No Connect
Module Status Indicator
I/O Status Indicators
