Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 235
Module Tag Definitions Appendix B
5069-IB16 Module Tags
This section describes the tags that are associated with the 5069-IB16 module.
You use the 5069-IB16 module profile in your Logix Designer application
project with the 5069-IB16K module.
Configuration Tags
Table 61 describes the 5069-IB16 module configuration tags.
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules

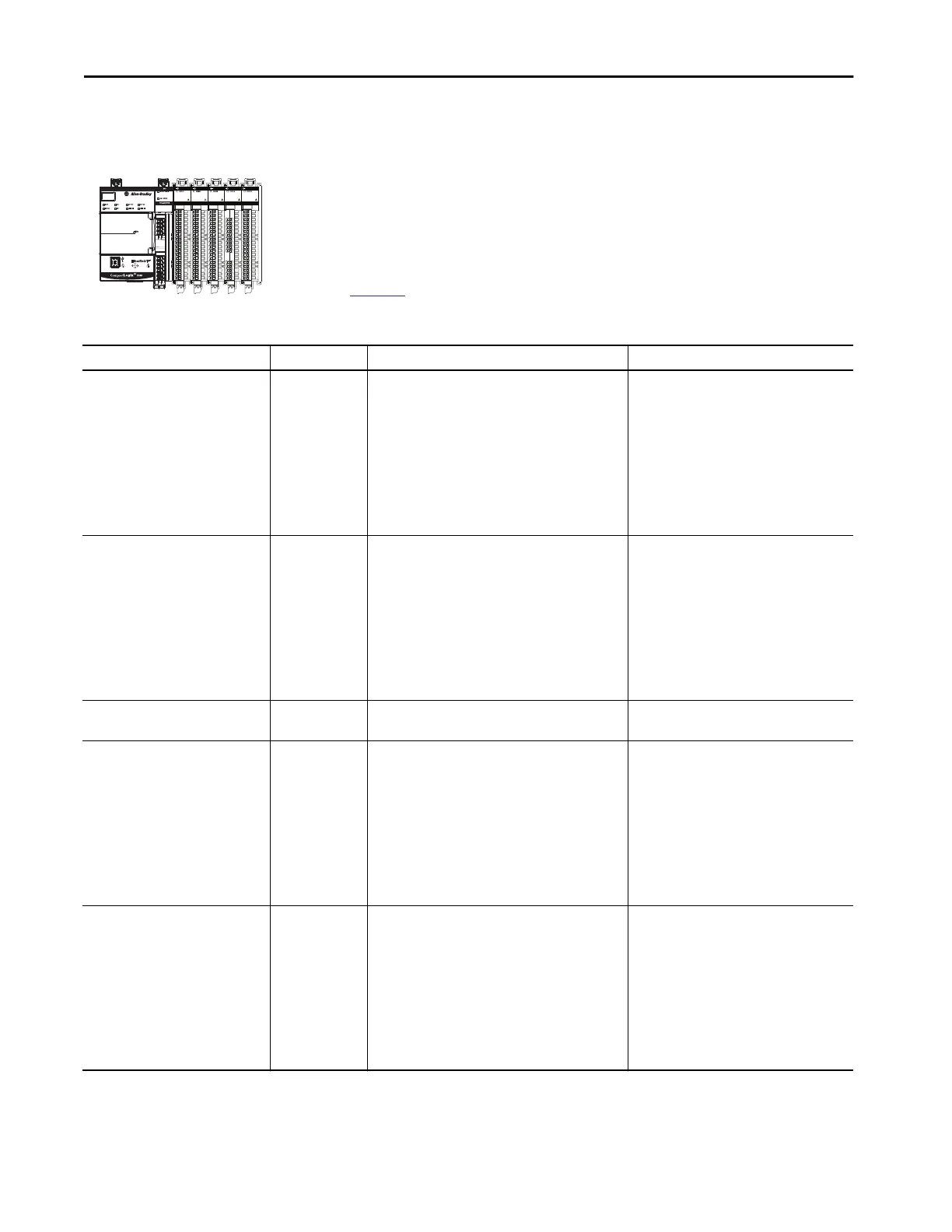

Table 61 - 5069-IB16 Module Configuration Tags
Name Data Type Definition Valid Values
Counterxx.InputOffOnFilter SINT The amount of time that a signal must be in the on state
before the input data indicates the on state.
The amount of time is indicated using an enumeration.
Not all products support all enumeration values.
• 9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
Counterxx.InputOnOffFilter SINT The amount of time that a signal must be in the off state
before the input data indicates the off state.
The amount of time is indicated using an enumeration.
Not all products support all enumeration values.
• 9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
Counterxx.RolloverAtPreset BOOL Determines whether the simple counter rolls over to 0
when it reaches O:Preset (1) or at 2147483647 (0).
• 0 = Maximum value
• 1 = Preset value
Ptxx.InputOffOnFilter SINT The amount of time that a signal must be in the on state
before the input data indicates the on state.
The amount of time is indicated using an enumeration.
Not all products support all enumeration values.
• 9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
Ptxx.InputOnOffFilter SINT The amount of time that a signal must be in the off state
before the input data indicates the off state.
The amount of time is indicated using an enumeration.
Not all products support all enumeration values.
• 9 = 0 μs
• 10 = 100 μs
• 11 = 200 μs
• 12 = 500 μs
• 13 = 1 ms
• 14 = 2 ms
• 15 = 5 ms
• 16 = 10 ms
• 17 = 20 ms
• 18 = 50 ms
