Allen-Bradley 5069-IB8S User Manual

Rockwell Automation Publication 5069-UM004A-EN-P - April 2019 21
Digital Module Operation in a Control System Chapter 1

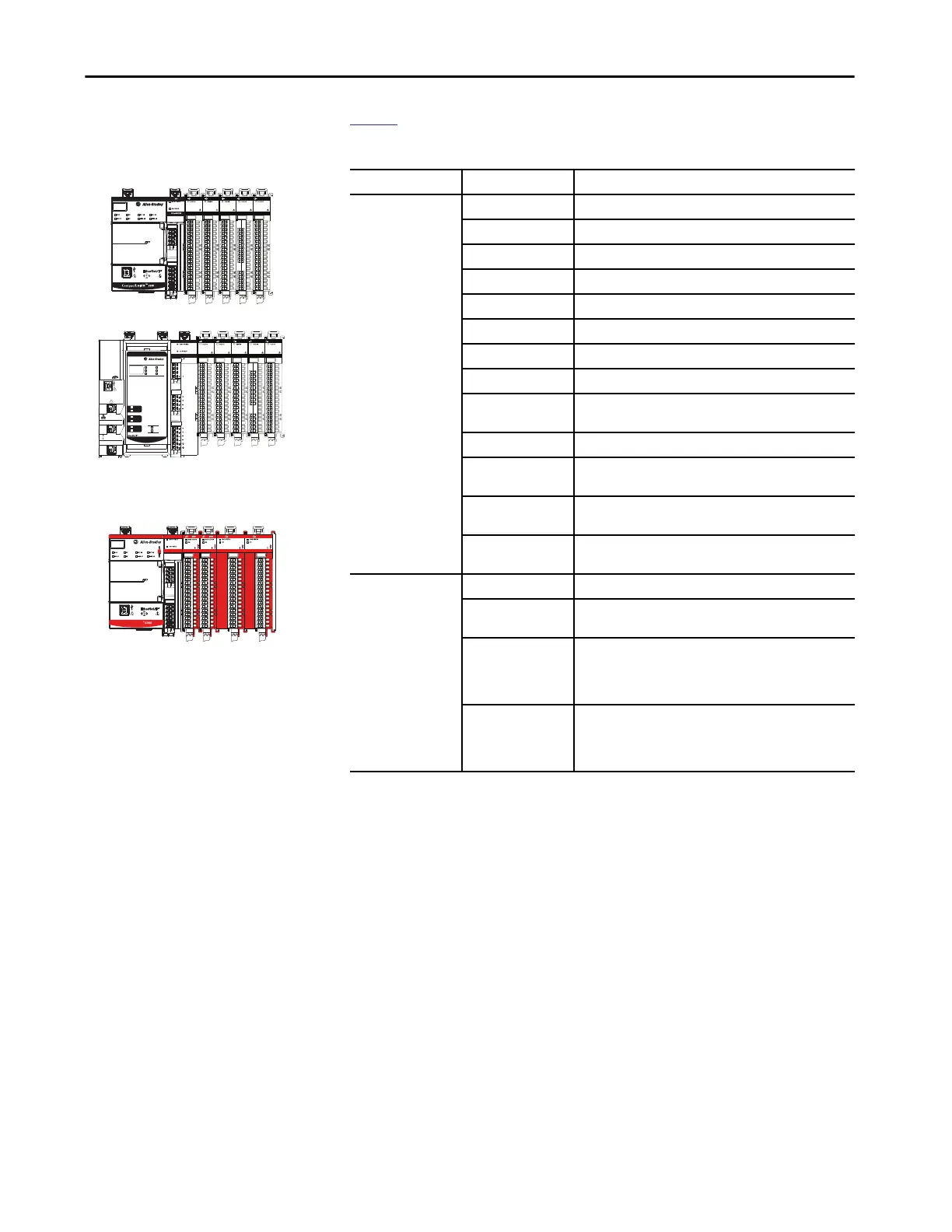

Types of Modules
Table 4 describes the Compact 5000 I/O digital modules.
5069-OBV8S
SIL2 CPU
5069-L3100ERMS2
Compact GuardLogix
5069-OBV8S
5069-IB8S5069-IB8S
OUTPUT OUTPUT
SA Power MOD Power
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
SA Power MOD Power
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Standard Modules
Safety Modules
™
NET B1
LINK B1
NET A1
LINK A1
NET A2
LINK A2
SPEED X1
LINK X1
OK
RUN
FORCE
FAN 1
SD
FAN 2
CompactLogix 5480
B1
A1
1
2
A2
5069-L46ERMW
CONTROLLER
UPS
MP
SA
R
B
F
R
B
F
DC INPUT
5069-IB16
DC OUTPUT
5069-OB16
ANALOG INPUT
5069-IY4
ANALOG OUTPUT
5069-OF8
DC INPUT
5069-IB16
Table 4 - Compact 5000 I/O Digital Modules
Module Type Cat. No. Description
Standard 5069-IA16 79…264V AC 16-point, input module
5069-IB16 10…32V DC 16-point, sinking input module
5069-IB16K 10…32V DC 16-point, conformal coated sinking input module
5069-IB16F 10…32V DC 16-point, sinking fast input module
5069-IB6F-3W 10…32V DC 6-point, 3-wire, sinking fast input module
5069-OA16 85…264V AC 16-point, output module
5069-OB8 10…32V DC 8-point, sourcing high-current output module
5069-OB16 10…32V DC 16-point, sourcing output module
5069-OB16K 10…32V DC 16-point, conformal coated sourcing output
module
5069-OB16F 10…32V DC 16-point, sourcing fast output module
5069-OW4I 5…264V AC /125V DC 4-point, isolated normally open relay
output module
5069-OW16 5…264V AC/125V DC 16-point, normally open relay output
module
5069-OX4I 5…264V AC /125V DC 4-point, isolated normally open/
normally closed relay output module
Safety
(1)
(1) You can use the safety modules in applications that are rated up to, and including, SIL CL3, PLe, Cat. 4 as defined in IEC 61508, IEC
61511, IEC 62061, and ISO 13849-1.
5069-IB8S 18…32V DC 8-point, safety sinking input module
5069-IB8SK 18…32V DC 8-point, conformal coated safety sinking
input module
5069-OBV8S 18…32V DC 8-point, safety output module that can be used as
follows:
• Bipolar output module
• Sourcing output module
5069-OBV8SK 18…32V DC 8-point, conformal coated safety output module
that can be used as follows:
• Bipolar output module
• Sourcing output module
