Allen-Bradley Micro850 User Manual

8 Micro850 24-Point Programmable Controllers
Publication 2080-IN007A-EN-P - September 2012
Overview
The Micro850 24-Point controller is an expandable brick style controller with embedded
inputs and outputs. It can accommodate up to three plug-in modules, up to four Micro800
expansion I/O, and any 24V DC output power supply that meets minimum specifications
such as the optional Micro800 power supply.

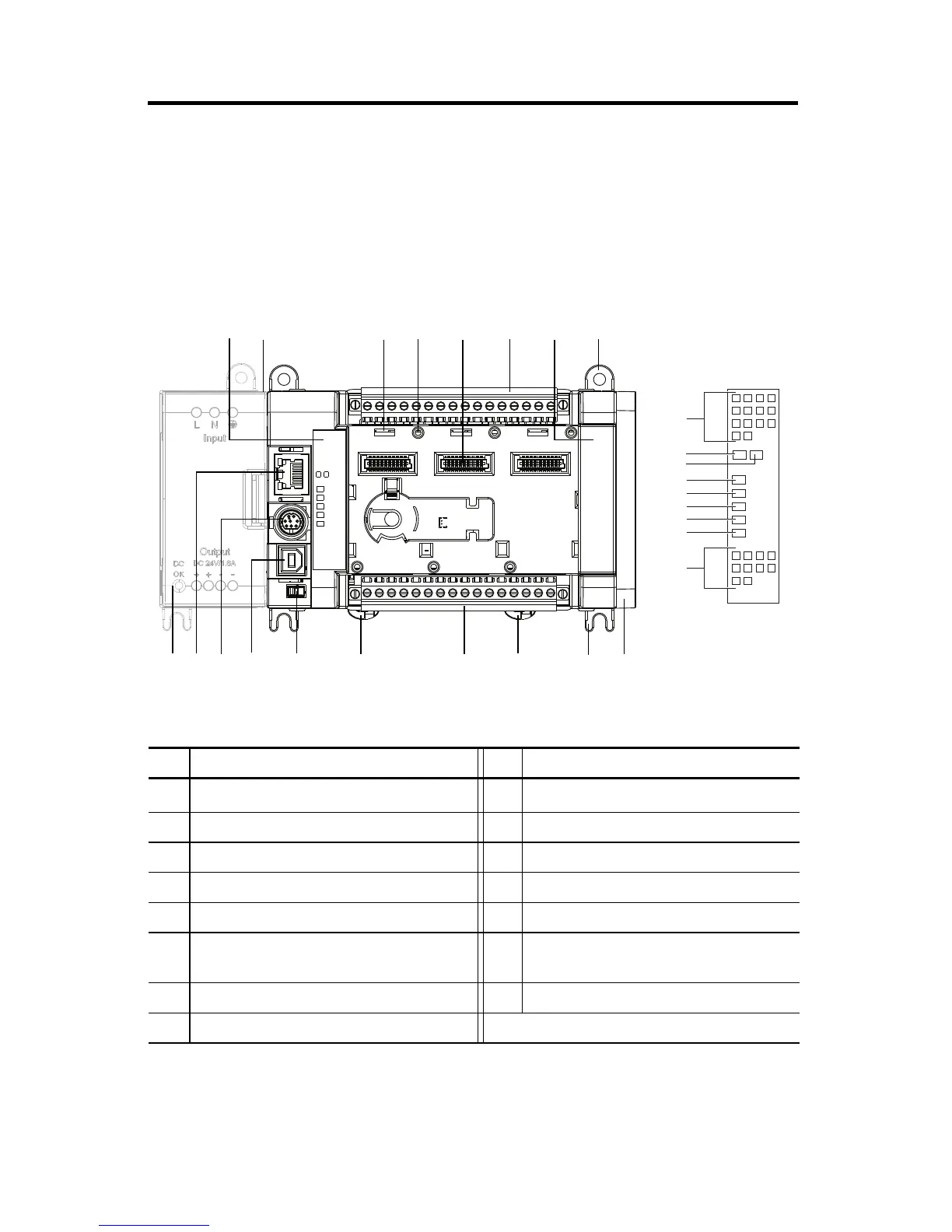

Controller Overview
Controller Description
Description Description
1 Status indicators 9
Expansion I/O slot cover
(1)
(1)
For use when the controller does not have an expansion I/O module attached to it.
2 Optional power supply slot 10 DIN rail mounting latch
3 Plug-in latch 11 Mode switch
4 Plug-in screw hole 12 Type B connector USB port
5 40 pin high speed plug-in connector 13 RS232/RS485 non-isolated combo serial port
6 Removable I/O terminal block 14 RJ-45 Ethernet connector (with embedded
green and yellow LED indicators)
7 Right-side cover 15 Optional power supply
8 Mounting screw hole / mounting foot
16
21
17
18
19
20
22
23
24
45909
45910
Status Indicators
1
2
3
4
5
6
7
8
8
10
6
11
12
13
14
15 9
10
