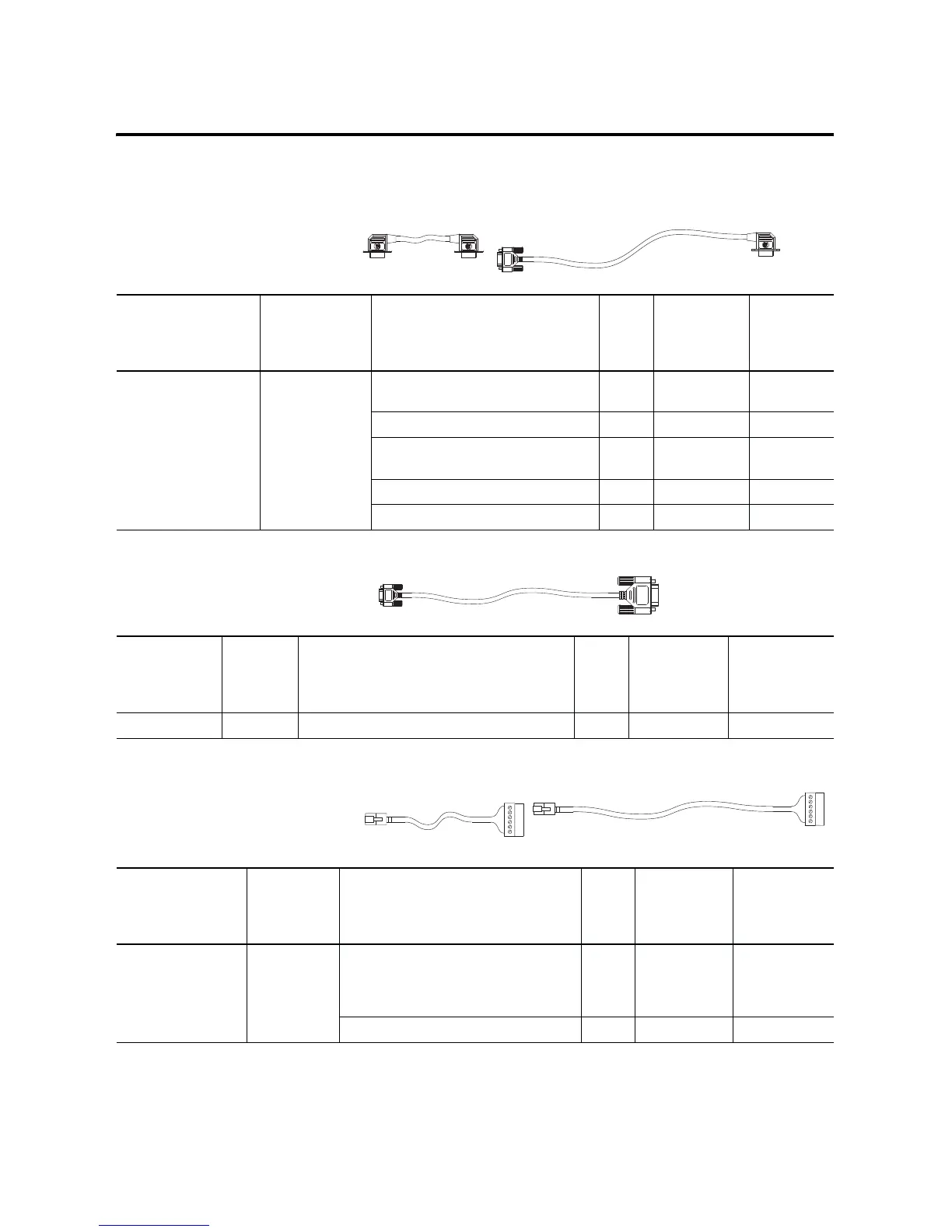

Communication Connections 4-15
(2)
Series C or higher cables are required.
1761-CBL-AC00
1747-CP3
Cable Length Connections from to AIC+ External
Power Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1747-CP3
1761-CBL-AC00
(1)
3m (9.8 ft)
45 cm (17.7 in)
SLC 5/03 or SLC 5/04 processor, channel
0
port 1 yes external
PC COM port port 1 yes external
PanelView 550 through NULL modem
adapter
port 1 yes external
DTAM Plus / DTAM Micro™ port 1 yes external
Port 1 on another AIC+ port 1 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
user-supplied cable
Cable Length Connections from to AIC+ External
Power Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
straight 9-25 pin — modem or other communication device port 1 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
1761-CBL-AS03
1761-CBL-AS09
Cable Length Connections from to AIC+ External
Power Supply
Required
(1)
Power
Selection
Switch
Setting
(1)
1761-CBL-AS03
1761-CBL-AS09
3m (9.8 ft)
9.5m (31.17 ft)
SLC 500 Fixed,
SLC 5/01, SLC 5/02, and SLC 5/03
processors
port 3 yes external
PanelView 550 RJ45 port port 3 yes external
(1)
External power supply required unless the AIC+ is powered by the device connected to port 2, then the selection switch should be set to cable.
