82 Rockwell Automation Publication 750-RM003A-EN-P - April 2018
Chapter 3 Communication Configuration
PowerFlex 755TM Bus Supply Communications
The PowerFlex 755T product supports 16 input and 16 output 32-bit
Datalinks when using Embedded EtherNet or 20-750-ENETR
communication option module. When using Logix V16 and later, PowerFlex
755T parameters and Logix Datalink tags automatically have the same data
type and scaling factor. Figure 23
and Figure 24 show similar 32-bit Datalinks
when using a PowerFlex 755TM bus supply with embedded EtherNet/IP
communication.

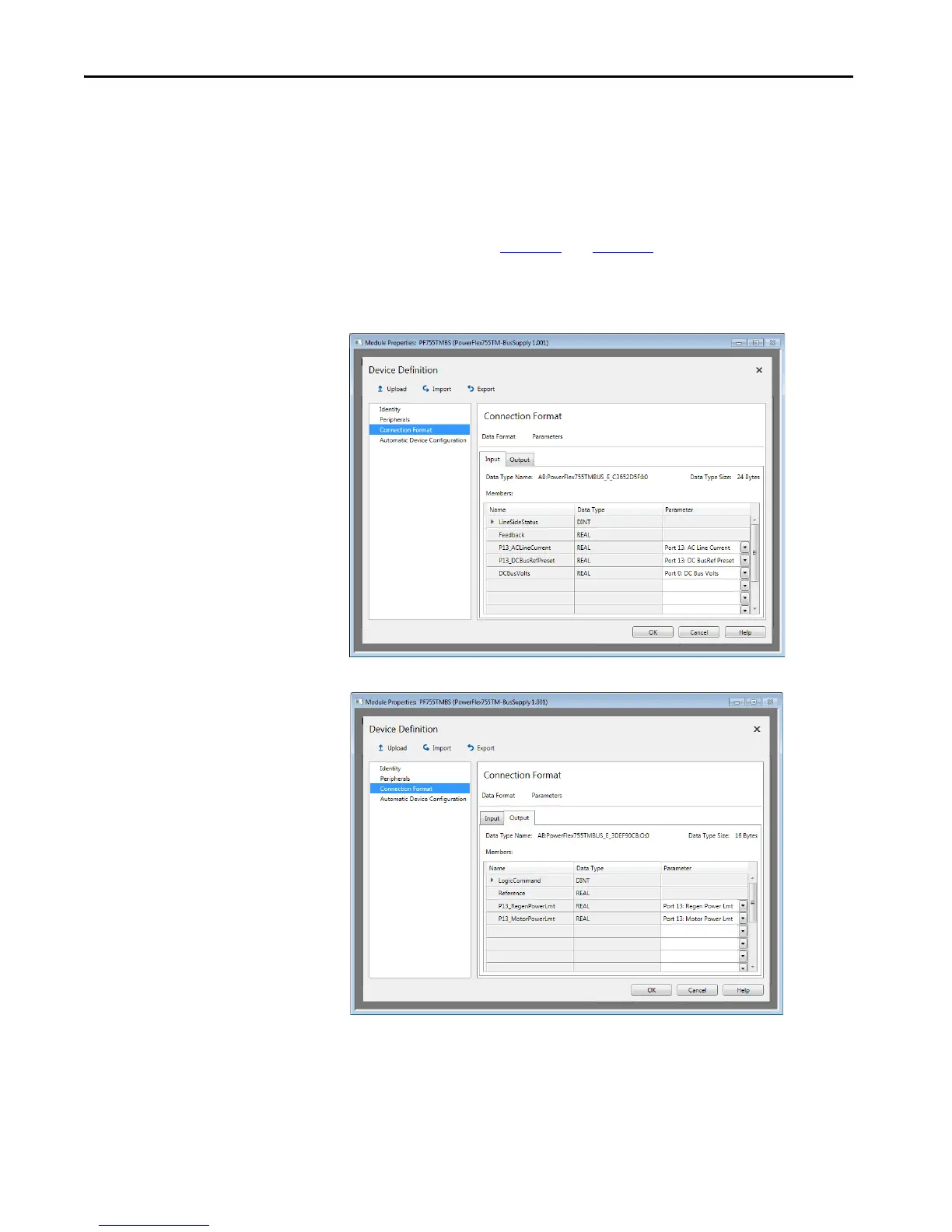

Figure 23 - Connection Formats - Inputs
Figure 24 - Connection Formats - Outputs
