Version 1.6 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 23

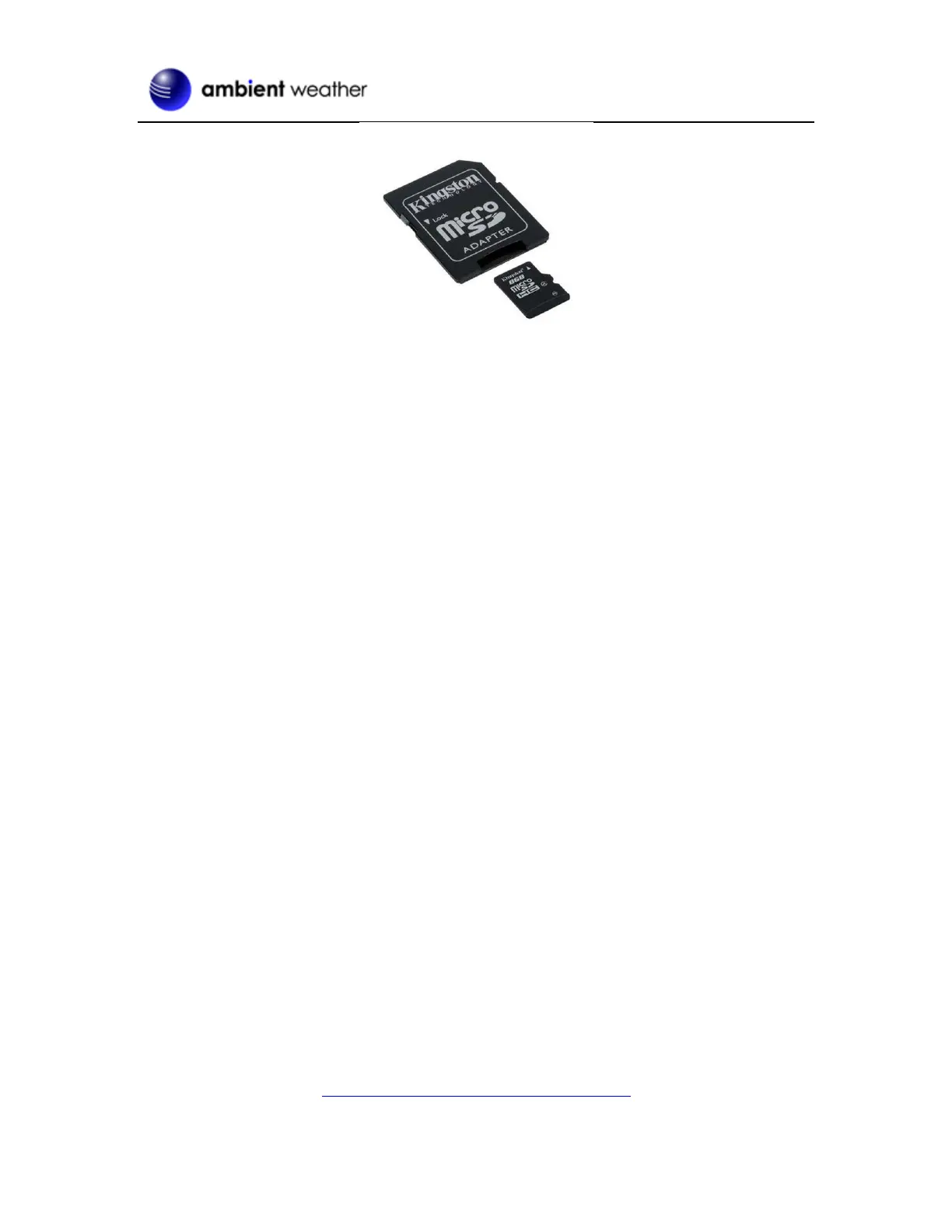

Figure 23
5.2.1 SD Data Export
The console includes a micro SD / TF card slot on the right side, as shown in Figure 4.
Backup data to micro SD / TF card (see the Accessories section of this manual for more information
on micro SD / TF cards).
The SD card will record data into the HISTORY directory.
The file is comma separated value (csv) and can be imported into Microsoft Excel, or other text based
applications.
The file format is as follows:
YYYYCH#A
where YYYY is the year, # is the channel number and A is the revision letter.
Example: 2016CH2A is the data for 2016, Channel 2, and A is the revision letter each time you change
a units of measure or calibration setting.
Below is an example of the file output:
Time,Temperature(F),Humidity(%),Dewpoint(F),HeatIndex(F)
2016/02/18 08:05,48.7,32,20.3,48.7
2016/02/18 08:10,49.1,33,21.2,49.1
2016/02/18 08:15,49.1,31,19.8,49.1
5.2.2 Back Up Graph Data
In the event of a power failure, the graph data on the main screen is lost, unless an optional MicroSD
Card is inserted into the SD Card Slot. The graph back up data file located on the SD Card is labeled
GRAPH.bin.
5.2.3 Firmware Updates
Firmware updates and instructions are available at the following link:
https://www.ambientweather.com/ws3000.html
