MVP Modero ViewPoint Touch Panels

Navigation Buttons

The following Navigation buttons (FIG. 44 and FIG. 45) appear on the left side of the Setup page:

Custom Logo

The custom logo feature allows a user to customize the boot splash screen with a JPEG image. The

custom logo will be displayed a short time after the standard AMX logo appears and will be visible until

the user pages are loaded. Adding a custom logo to a panel is done by importing an image into the

resource manager of the user pages in TPDesign. Afterwards, transfer the user pages to the panel and

reboot to see the new logo. The following guidelines must be followed:

 The custom logo image must be a JPEG

 Once the image is imported into the resource manager, it should be renamed to

"custom_logo.jpg" (case sensitive)

 The image resolution should match the panel resolution

 The image should be saved with 2x2,1x1,1x1 sub-sampling. Different image editing tools

implement this in different ways. If you are unsure how to set this with your application and

you are having issues, try saving with a lower quality setting.

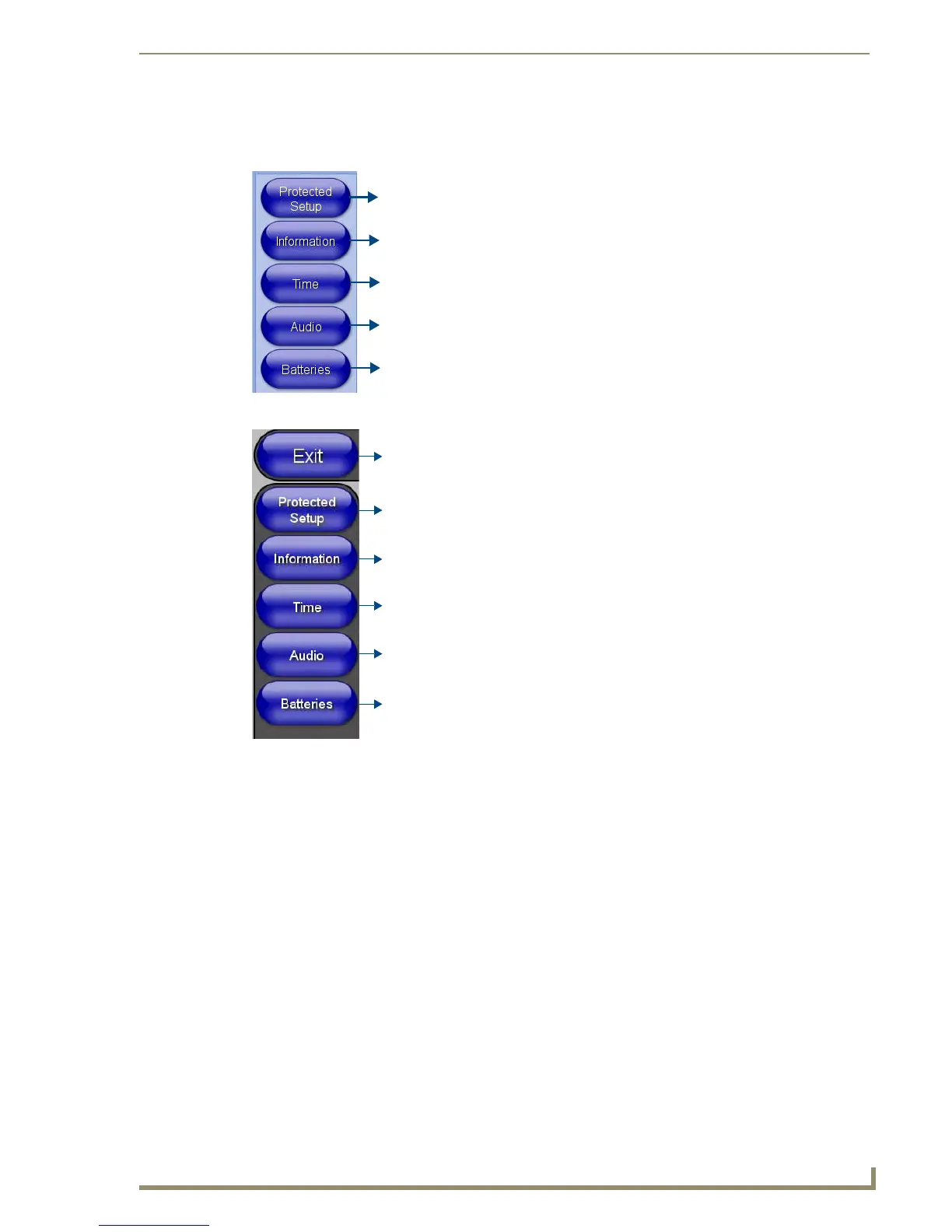

FIG. 44 Setup Page Navigation Buttons (MVP-7500)

FIG. 45 Setup Page Navigation Buttons (MVP-8400)

Press to access the Volume page where you can adjust audio parameters on the

panel.

Press to access the Protected Setup page for panel calibration and to access

security release passwords and connection settings.

Press to access the Information menu and select either Project Information or

Panel Information.

Press to access the access the Batteries page to monitor MVP-BP Power Pack

status in the panel as well as the docking station.

Press to access the Time Adjustment page where you can alter the time and

date settings on the Master.
