UDM-0808-SIG WebConsole

UDM-0808-SIG, UDM-RX02N and UDM-ABB-8-SIG Operation /Reference Guide

UDM Control Page

Select Control from the Admin menu to access the UDM Control page (FIG. 17). The options on this page

allow commands to be directly entered and replies (notifications) to be displayed for the UDM-0808-SIG hub

and connected UDM-RX02N receivers. This page provides a rudimentary control method if there is no master

connection.

Sending Commands to the UDM-0808-SIG

Select Hub from the Device drop-down menu.

2. Select Port 1 from the Port drop-down.

3. Type a send command into the Commands window.

4. Click the Accept button to send the command.

5. Click the Refresh button to receive new replies (notifications). New replies are added to the bottom of the

list. Press the Clear button to clear the Replies window.

Sending Commands to a Connected UDM-RX02N

Select the target receiver (RX1 - RX8) from the Device drop-down menu.

2. Check the Send as string option.

3. Select the appropriate port on the RX02N to receive the command(s):

Port 1 - SEND_COMMANDS/LEVELS

Port 2 - SERIAL (RS232) SEND_COMMANDS

Port 3 - IR SEND_COMMANDS

4. Type a send command into the Commands window.

5. Click the Accept button to send the command.

6. Click the Refresh button to receive new replies (notifications). New replies are added to the bottom of the

list. Press the Clear button to clear the Replies window.

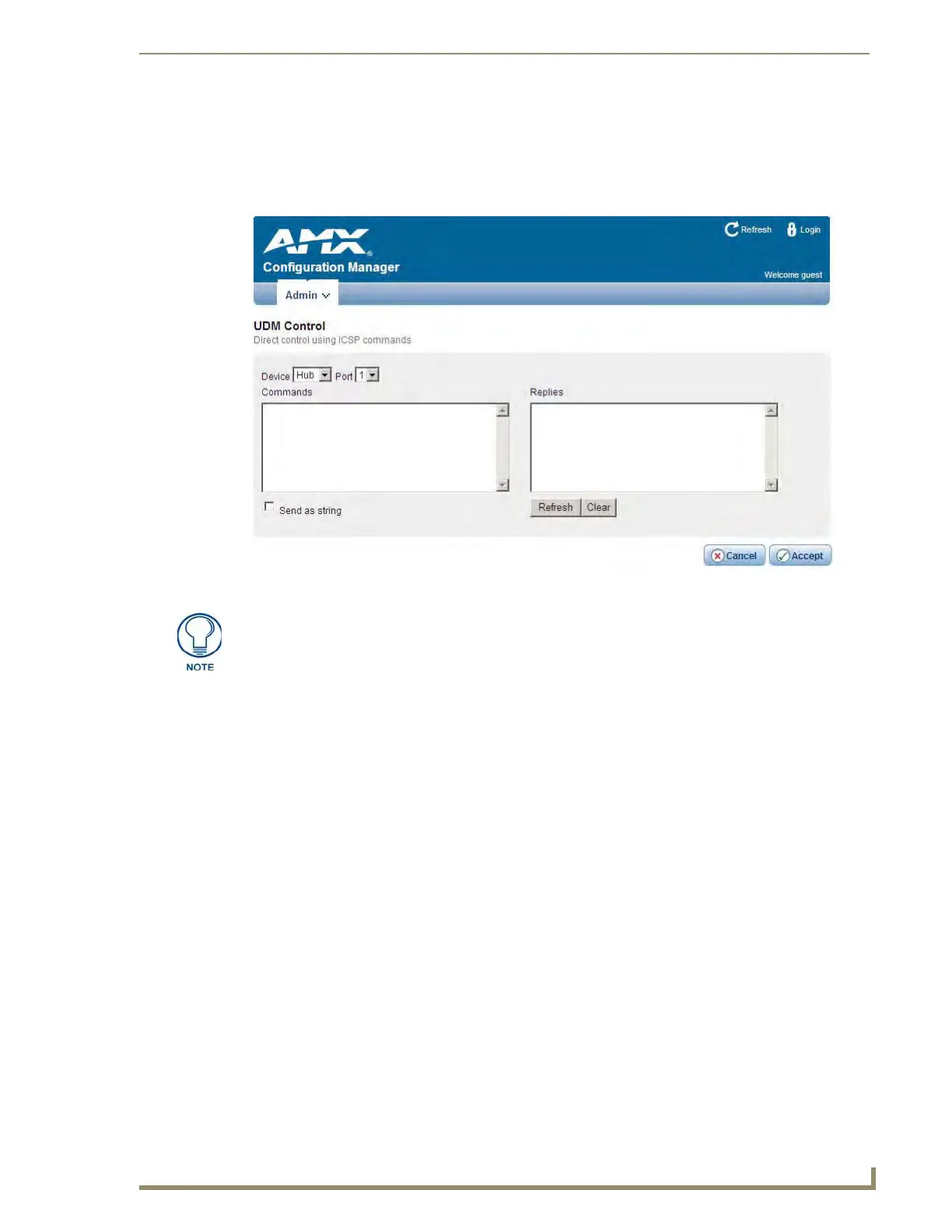

FIG. 17 UDM Control Page

Only ASCII-printable characters are supported.
