To connect to a display device using a serial cable:
1. Connect a serial cable to the UDM-RX02N’s SERIAL port (see FIG. 37 on page 43).
2. Run the serial cable (observing distance limitations) to the display device’s serial port and connect.
IR Rx (IR Receiver) Port
The IR Rx IR Receiver port supports pass-through remote control of connected IR devices (FIG. 39).
If pass-through mode is required (where an IR-controlled device is controlled via the UDM-RX02N using a an
AMX or UDM remote control), then an IR03 External IR Receiver (FG-IR03, not included) is required to
receive IR commands from the remote control. Likewise, an IR Receiver is required to compensate video on
the UDM-RX02N using the UDM RC05 (Endeleo) remote control.
To connect an IR Receiver to the UDM-RX02N:
1. Connect the IR03 IR Receiver cable to the IR Rx port on the UDM-RX02N.
2. Run the cable and attach the IR receiver bud such that it has a clear line-of-sight with the intended remote
control device.
The serial cable must be pinned out according to the Manufacturer’s instructions.
Failure to do so will result in serial commands failing.

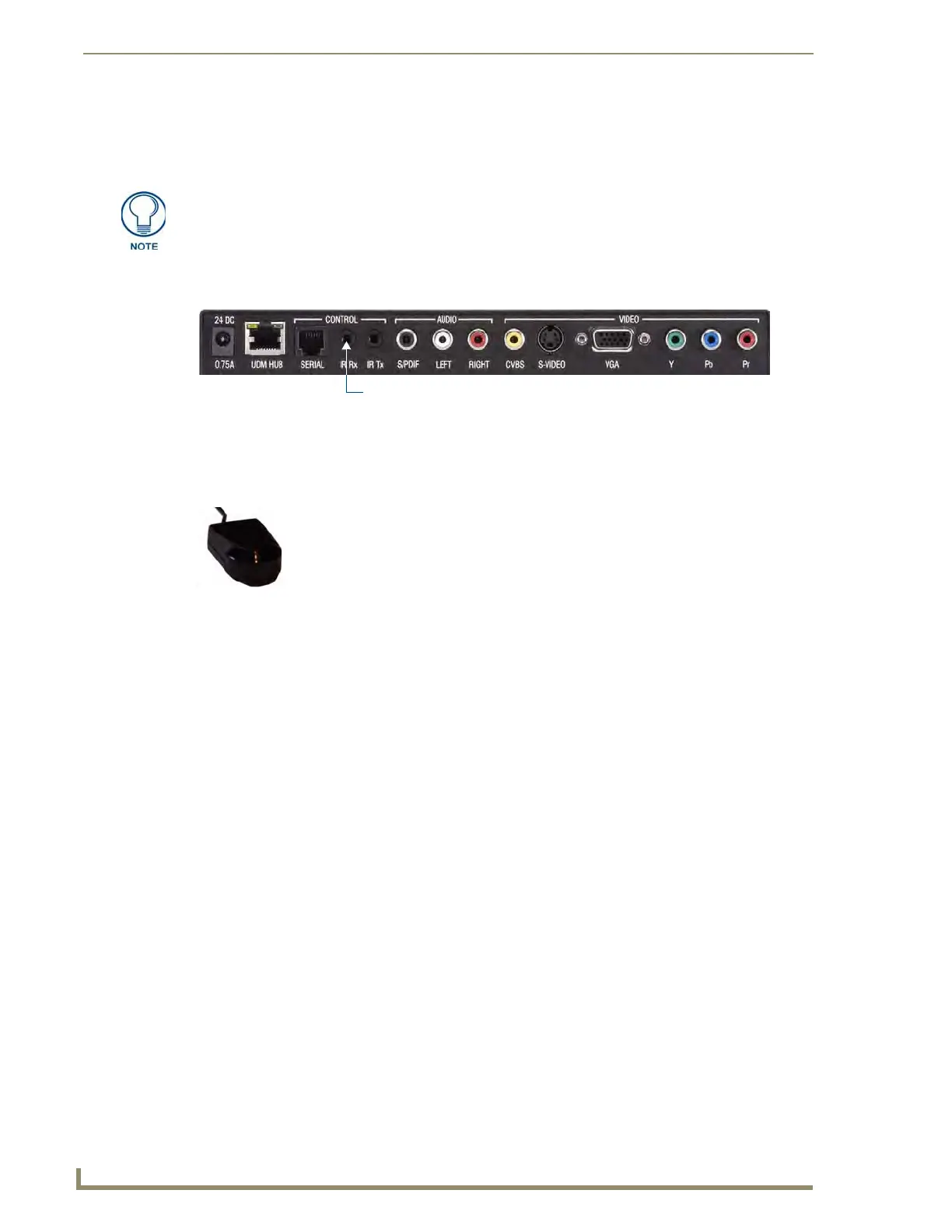

FIG. 39 UDM-RX02N - IR Rx Port
FIG. 40 IR03 IR Receiver (FGIR03 - not included)
IR03 IR Receiver (FGIR03)
