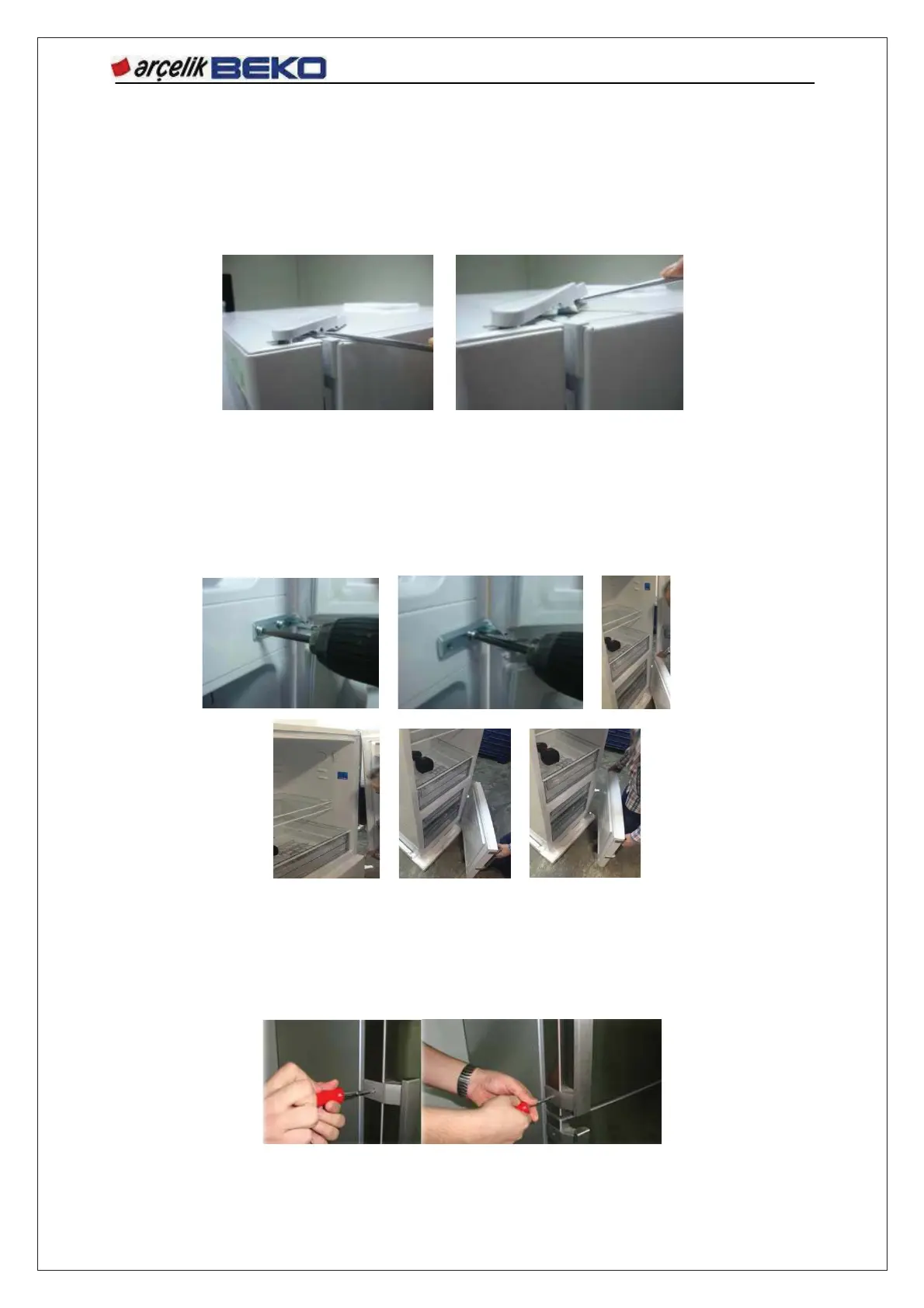

14. ATTACHMENT/DETACHMENT PROCESSES OF PARTS
14.1. Upper Hinge Lid
Hinge lid is mounted on the hinge body with tab locks and without any screw. To remove it, screw has
to be disconnected by using phillips screwdriver and the cover has to be slightly lifted from bottom.
14.2. Removing the Doors
Hinge screws located in the interim section on the lower part of the upper door are unscrewed with the
help of a torque-tip. After unscrewing, the door is removed by tilting and by using the door-top
pediment gap. Then, the lower door is also disconnected from the lower hinge pin by pulling upward,
thus both doors are detached.
14.3. Removing Door Handles (* For Products with Handle)
Door handles are attached to the door by means of two screws which are unscrewed with the help of a
torque-tip screwdriver to remove the door handles.
