To snap them on again, first the upper part and side tabs are snapped on the drawer body, then the
tabs on the lower part are snapped on the drawer body to complete attachment.
14.12. Fridge Compartment Evaporator Cover Group

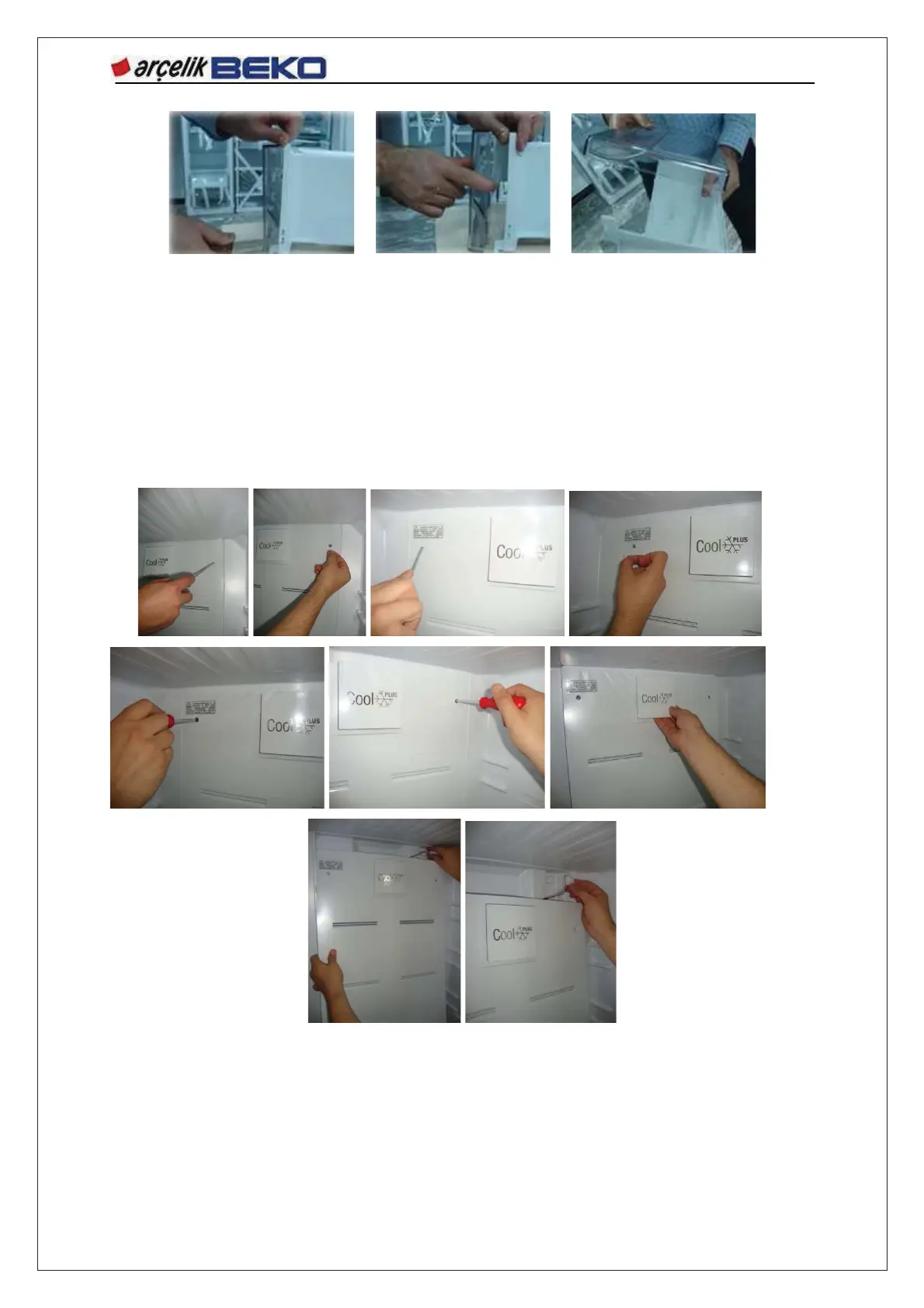

To detach the fridge compartment evaporator group, first of all the two square screw plugs on the
upper right and left parts shall be removed with the aid of a flat-head screwdriver. Then, the 2 fixing
screws shall be unscrewed with a phillips screwdriver. Cover shall be pulled out after the screws are
removed. To detach the cover from the body, the socket of the fridge evaporator cover group fan shall
be removed from its socket housing on the body.
All processes should be applied in reverse order for attachment.
