To re-attach it, the new group should be mounted by applying appropriate force on the housing in
accordance with the tab directions.
14.16. Above-Body Pediment and Above-Body Pediment Connection Sheet Iron

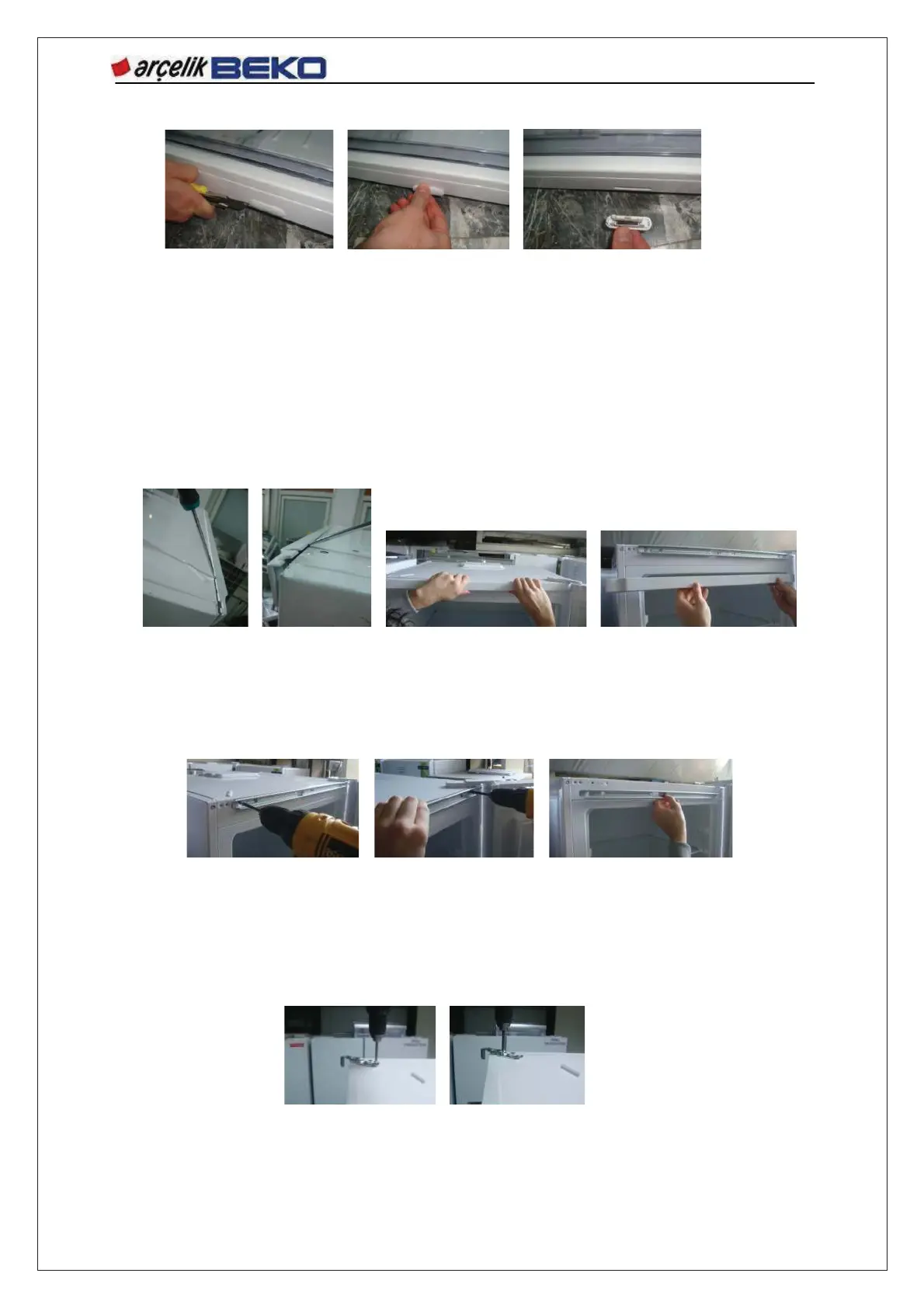

Above-body pediment's tab connection shall be released from both sides by applying force using a
thin-tipped screwdriver on the evacuations on the upper sheet as shown in the picture. To re-attach it,
the pediment piece is seated on the connection sheet symmetrically and locked by applying force to
secure it.
The connection plate on which the above-body pediment piece is fitted is secured on the body with 2
screws. These screws are removed with the aid of torque tip, thus the connection plate is detached.
For attachment process, considering the position of the sheet iron in the picture, it is re-tightened on
the body with the 2 screws.
14.17. Upper Hinge
Upper hinge cover is removed by following step 16.1. 2 connection screws are removed to detach the
upper hinge.
