AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO:
00
47
All processes should be applied in reverse order for attachment.

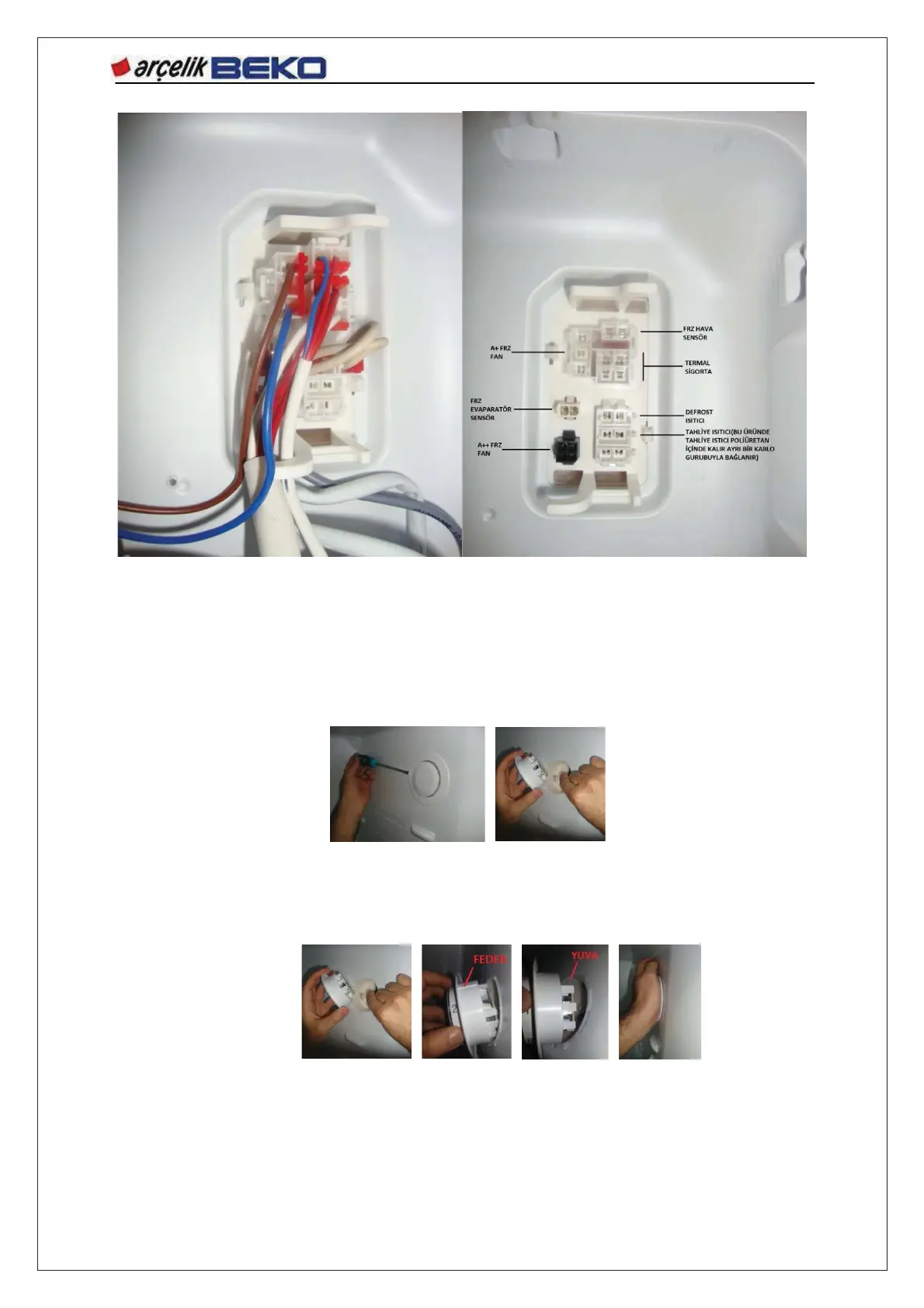

14.14. Thermostat Setting Box
To detach the thermostat box, thermostat box is pulled outwards with the aid of a thin-tipped
screwdriver from the gap in the indicated part of it, thus the thermostat box is released from the body.
Socket connection is unfastened to detach it.
For attachment process, after the socket connection is made, the connection rib shown on the
thermostat box is passed along the channel on the housing and locked by applying manual force on
the entire box surface. Once locked, a click sound is heard from the tab.
14.15. Reed Sensor Board
Reed sensor board is serviced as grouped with the reed sensor cover. To detach this group, cover
connection should be loosened and removed with the aid of a thin-tipped screwdriver or a box knife.
