arcelik BEKO K70520NU User Manual

AG2014 70 CM REFRIGERATORS 13.11.2013 / REV NO:
00
43

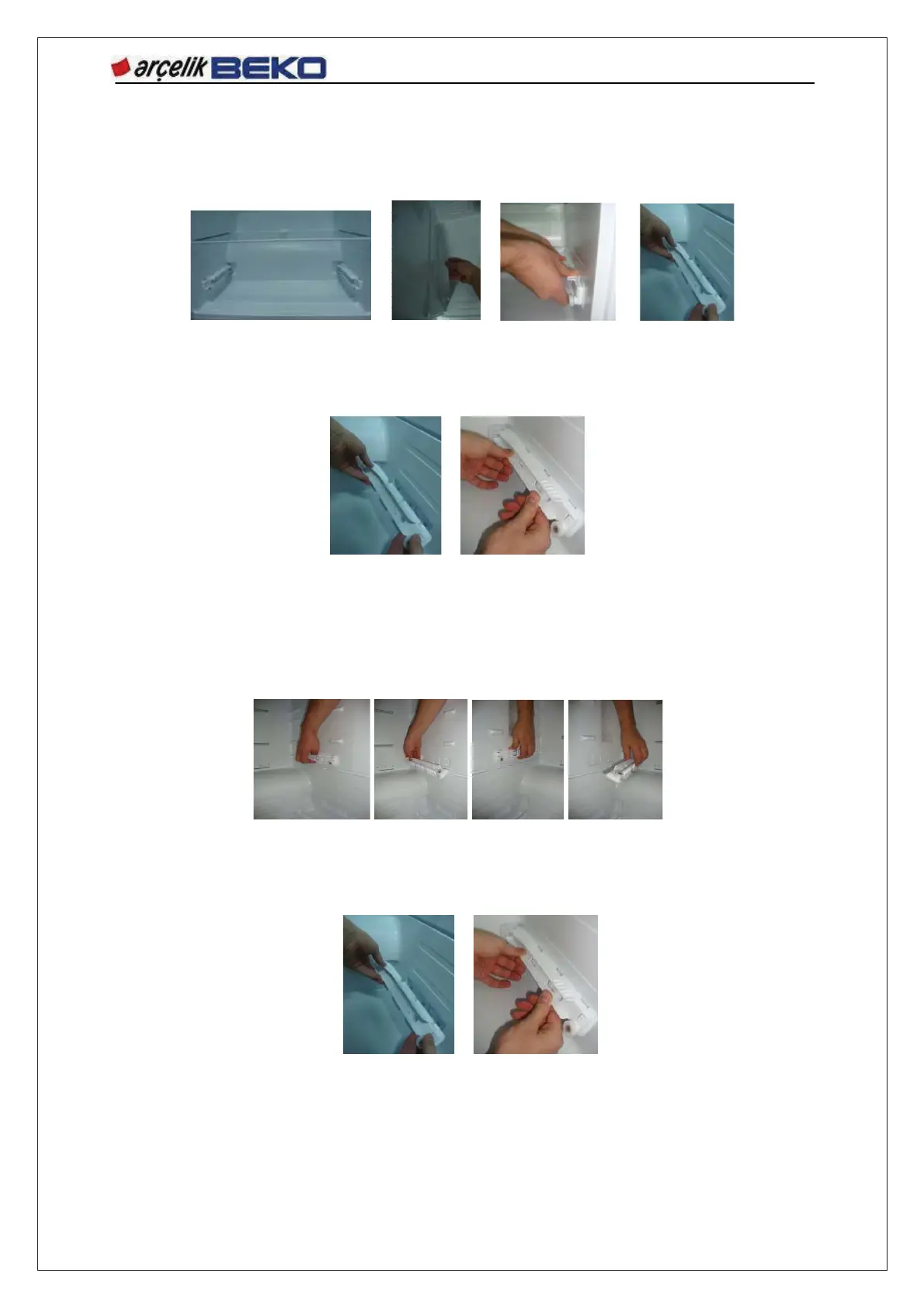

14.8. Crisper Sliding Rails
Crisper compartment slides on total 2 rails located on the left and right. Rails are fixed on the body
through tab snapping and there is screw connection. To remove these rails, crisper have to be taken
out. Then, by applying force from lower surface of the rail upwards, the rail can be removed.
To re-attach the rails, the rail shall first be fitted in the housing on the interior body from upper side and
by applying force from lower side, it is locked on the interior body snapping the tab.
14.9. Second Floor Crisper Sliding Rails
Second floor crisper compartment slides on total 2 rails located on the left and right. Rails are fixed on
the body through tab snapping without any screw connection. To remove these rails, crisper have to
be taken out. Then, by applying force from lower surface of the rail upwards, the rail can be removed.
To re-attach the rails, the rail shall first be fitted in the housing on the interior body from upper side and
by applying force from lower side, it is locked on the interior body snapping the tab.
