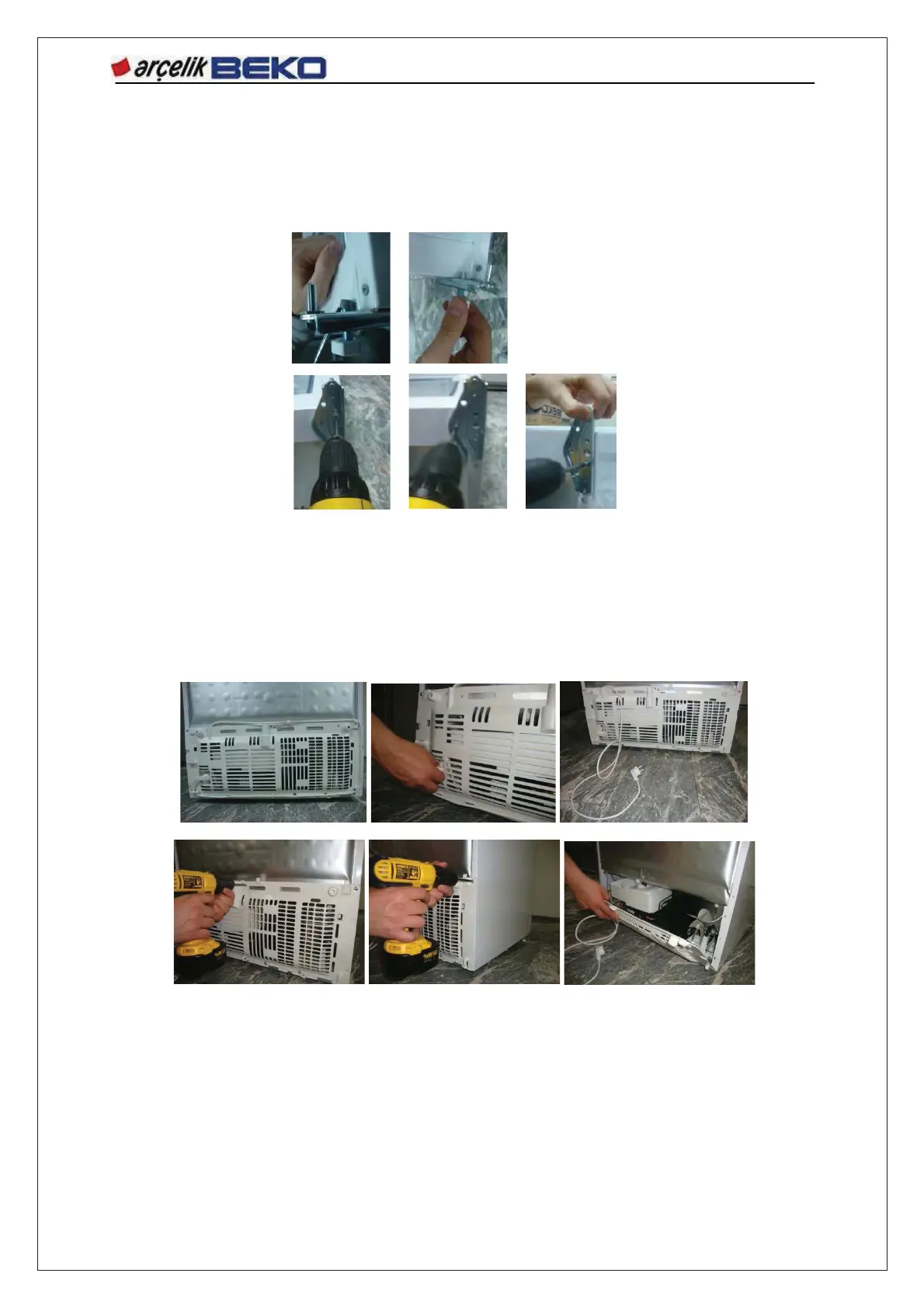

14.18. Lower Hinge and Adjustable Foot
To remove the lower hinge, the plug which is connected to the hinge is removed from the adjustable
foot primarily by using a thin-tipped screw and the adjustable foot is detached from the hinge. 3 screws
connecting the lower hinge to the body are removed to detach the lower hinge.
14.19. Compressor Rear Cover
First, the supply cable wrapped on the rear cover of the compressor shall be released. Compressor
rear cover is secured on the panels and the body with 3 screws. Furthermore, it is fixed on the rear
foot by means of fixed tabs under it. It is pulled up to remove by unscrewing the screws with a phillips
screwdriver and holding it from the fixed tabs.
