11

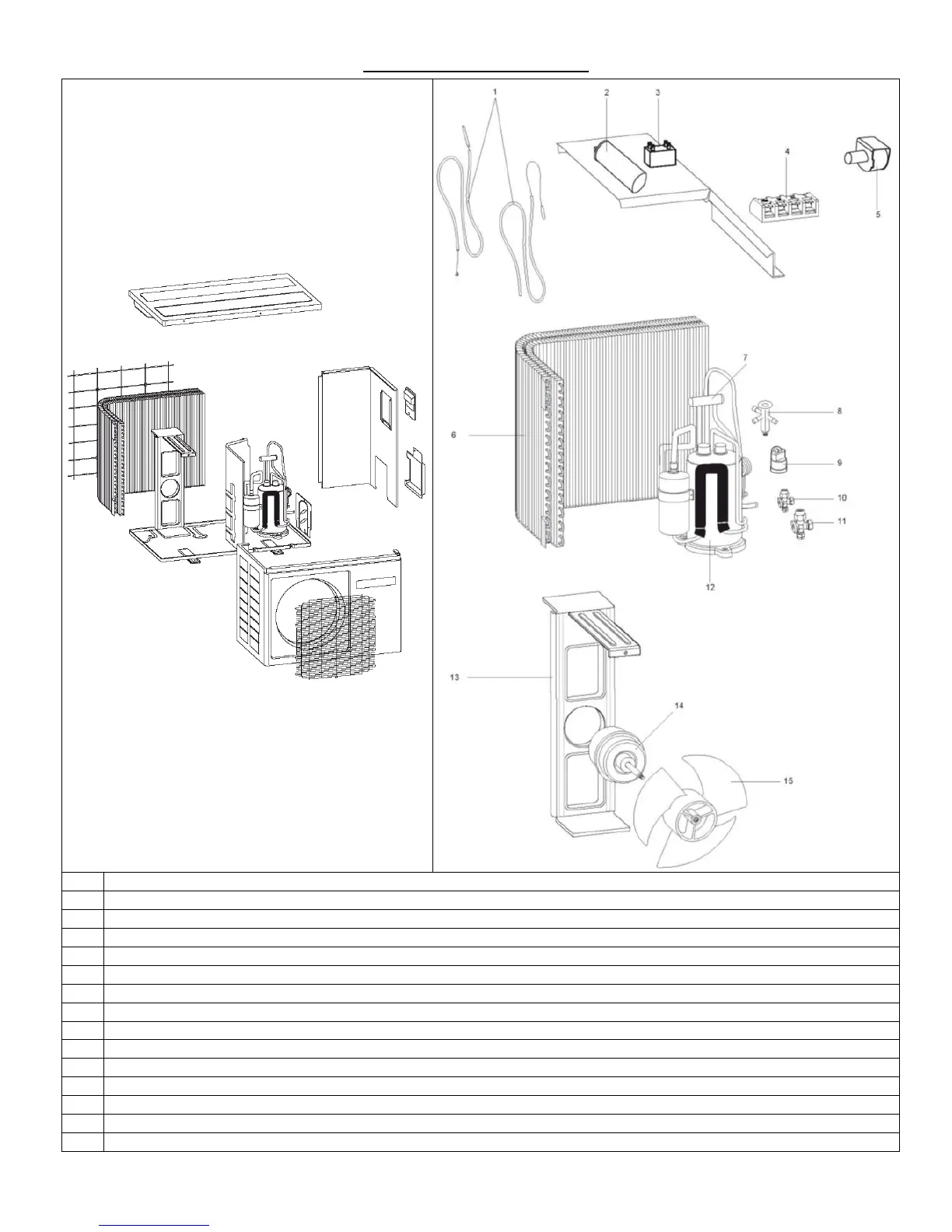

EXTERNAL UNIT COMPONENTS
1
Air and
Evaporator sensors
2
35 µF Compr
essor electrolytic
capacitor
3
2,5 µF
Fan Capacitor
4
5 poles ter
minal block
5
4 way valv
e electromagnetic c
oil
6
evaporator
7
4 way valv
e
8
thermostatic
valve
9
safety pre
ssure switch
10
Gas pipe connection 1/
4 “
11
Gas pipe connection 3/
8 “ (includ
es a “service” connector
for vacuum, cha
rge, and pressure check)
12
hermetic rotary compre
ssor
13
Fan support
14
fan motor
15
fan blades
10
12
Table of Contents
Table of Contents
2
Construction Features
3
Technical Labels
4
Electrical Connections
5
Technical Data Table
6
Operational Curves
7
External Unit Components
11
Sensors Test Table
13
Internal Unit Components
16
Heat Pump Start up Procedure
18
Functioning Modes
19
Optional Functions
27
Troubleshooting
33
Low Gas Checking
33
Malfunctioning
34
Appendix A: Installation Site Inspection
37
Available Installation Accessories
39
Appendix B: Routine Maintenance
39
